ABB 83SR51f-E GJR2396200R1210 Control module

ABB 83SR50c-E GJR2395500R1210 Control module

Brand:
ABB DCS
Item NO.:
83SR50 GJR2395500R12
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Germany (DE)
Shipping Port:
Xiamen
Lead Time：
3-5 days
Warranty:
1 Year

Product Detail

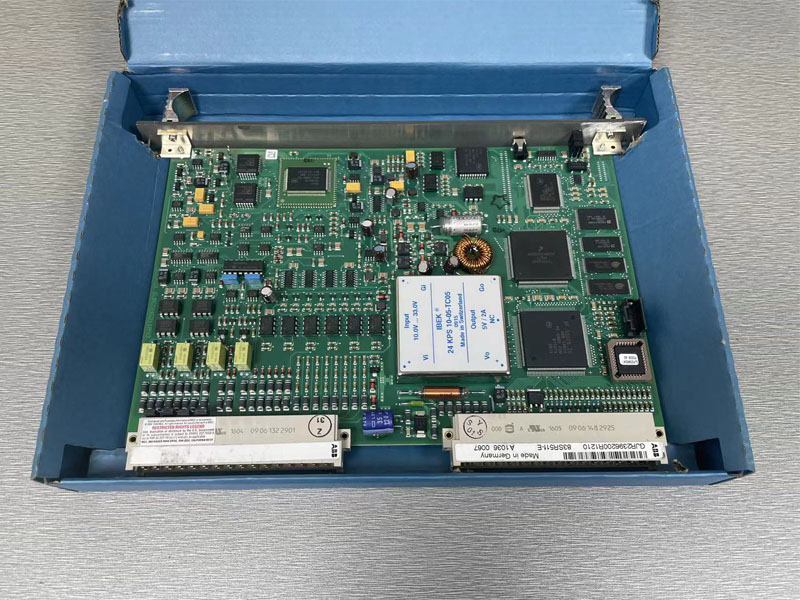

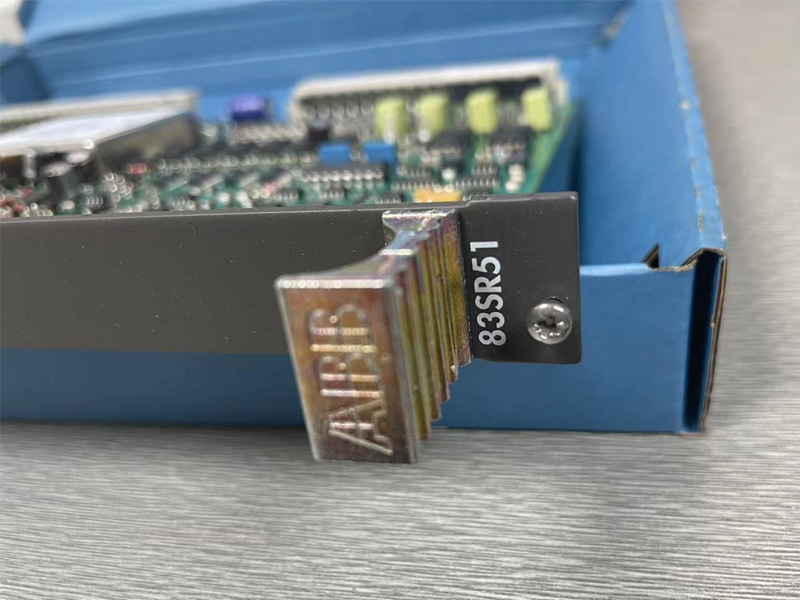

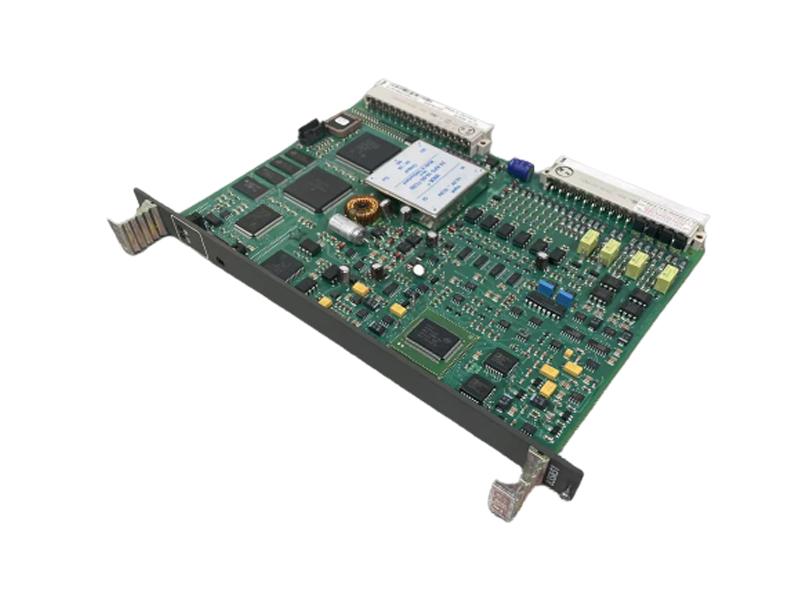

ABB 83SR51f-E GJR2396200R1210 Control Module for Analog Control Functions withContinuous Output
Description:
83SR51f-E (83SR51R1210) GJR2395500R1210 is part of ABB Procontrol P14 control module.
It is 2 channels for binary and analog control, each with 4 DI + 1 DO + 2 AI + 1 AO which is used for stored-program analog controlon the drive control, group control and unit control levels. It is suitable for controlling the following actuators:
•Electrohydraulic actuators
•Electropneumatic actuators
•Electric motor-driven actuators
The positioning of the actuators takes place at the local transformer or, in the case of electric motor-driven actuators, in continuously operating power electronics system. In addition to the single-variable analog control functions, a super-ordinated master control function can be implemented.The module includes the function blocks needed for continuous single-variable control. For signal handling, further function blocks are available.The module is intended to be used with the Process Operator Station (POS30).The module uses 2process interfaces for the power controllers and for the process.
The module can be plugged into any station of the PROCONTROL bus system.It incorporates a standard interface for the PROCONTROL station bus.The module address is set automatically when the module is plugged into the PROCONTROL station.The telegrams received over the bus are checked by the module for error-free transmission based on their parity bits.The telegrams sent from the module to the bus are provided with parity bits, in order to ensure error-free transmission.The user program is storedon a nonvolatile memory (Flash–PROM). Loading and changing of the user program is done from the PDDS over the bus.The module is ready for operation as soon as a valid user program has been loaded.
For communication with process and switchgear, the module requires the following voltages:USA/USB, branched internally into the following voltages:
•UK1Supply for contacts, process interface 1
•UK2Supply for contacts, process interface 2
•S11/S13Supply for transducer, process interface 1
•S21/S23Supply for transducer, process interface 2
The voltages are short-circuit-proof and non-interfering.The operating voltages and the external logic signals are related to reference conductor Z.In case the internal monitoring circuits or the input signal monitor respond, disturbance annunciation ST (general disturbance) will be indicated on the front panel of the module.Response of the internal monitoring circuits is indicated as disturbance annunciation SG (module disturbance) on the front panel of the module.
