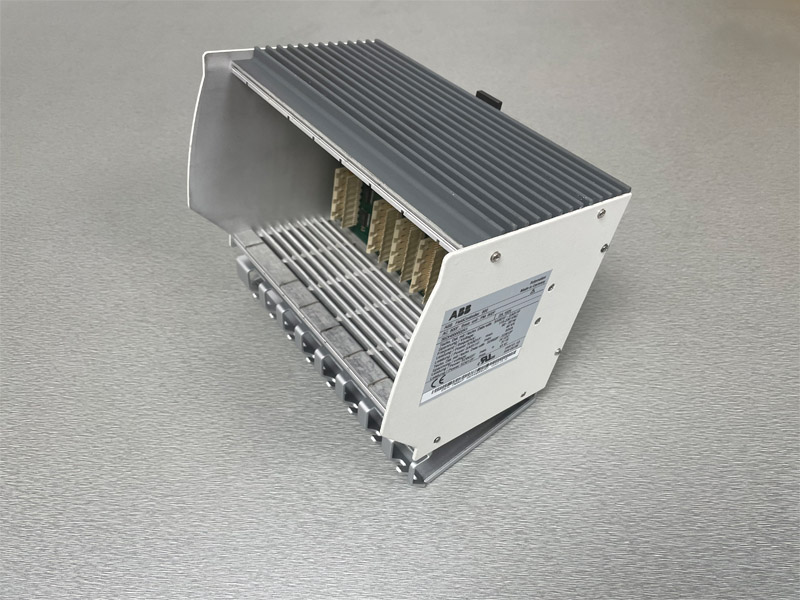

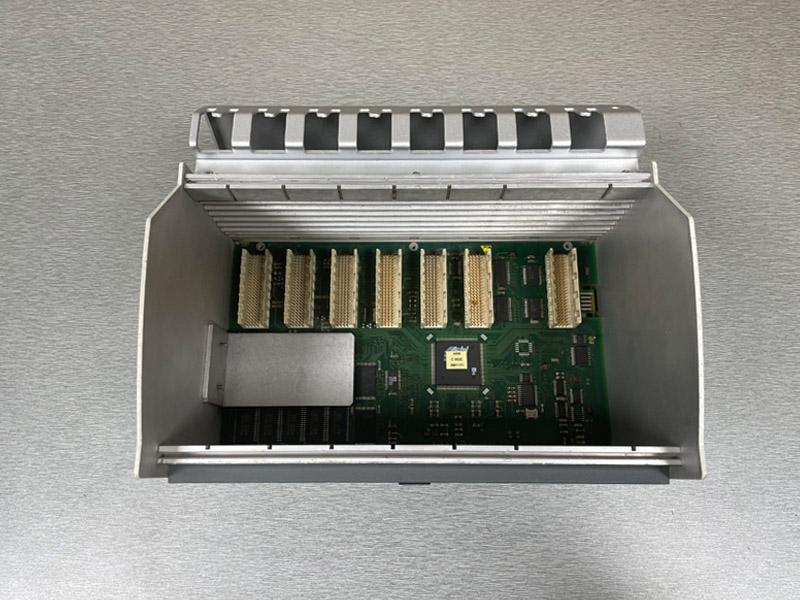

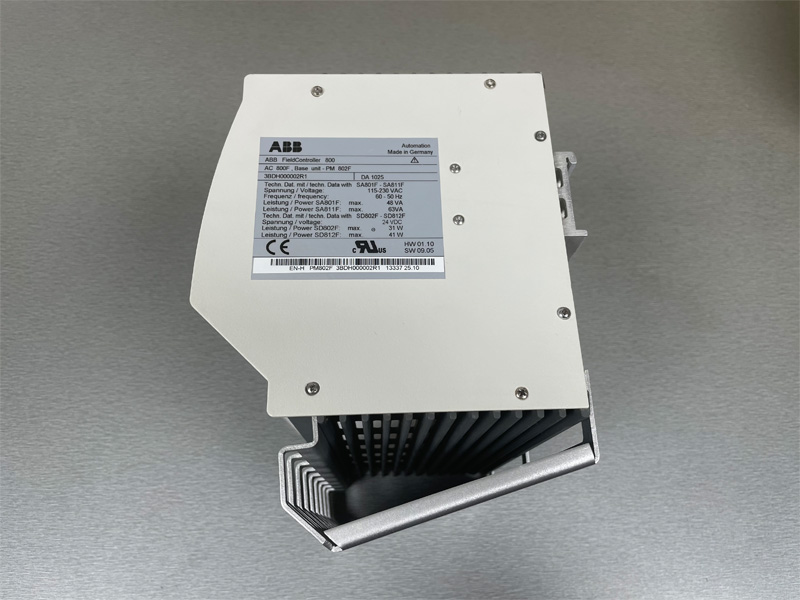

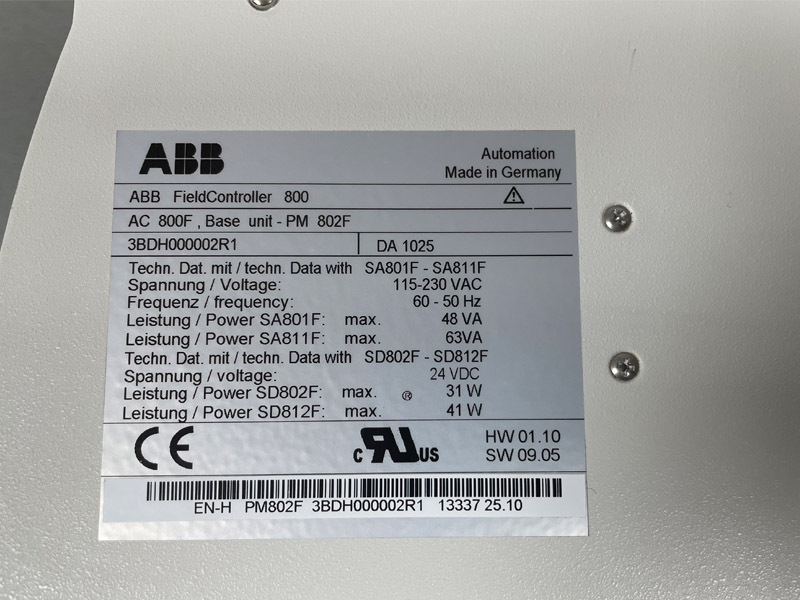

ABB PM802F 3BDH000002R1 Base Unit 4 MB, battery-buffered RAM
Description:
PM802F is part of ABB Freelance control system AC 800Fprocessor modules.  As a basic unit, PF802F scans signals from the fieldbus lines via the corresponding fieldbus modules, processes these signals according the application programs installed by the user and sends appropriate signals to the fieldbus actuators via the fieldbus modules.
Controller redundancy can be achieved by using two AC 800F. To ensure quick and smooth takeover in milliseconds by the secondary AC 800F in case the primary AC 800F fails, a dedicated redundancy communications link through the second Ethernet module makes sure that both AC 800F are always synchronized. All inputs and outputs are designed to support redundant operation.
Data communication between AC 700F, AC 800F, the engineering and operator stations runs via the control network. Engineering station communications can involve new or updated configuration files being downloaded to the controller, or information about the connected modules being reported back. When fieldbus modules are installed or exchanged, the required configuration information is automatically updated.
Configuration and real-time process data is stored in the controllers. To safeguard this data in case of power loss, the RAM power is backed up with batteries located either on the Ethernet modules or on battery modules.
Features:
Super Scalar RISC microprocessor (up to 150 MIPS)
16 K internal CPU cache RAM
RAM memory with error detection and correction
PM 802F: 4 MB static
Flash-EPROM
PM 802F: 4 MB, 32-bit words
EEPROM, serial, 16 kbit
Monitoring of the temperature inside the device
Watchdog
4 slots for fieldbus modules
2 slots for Ethernet communications modules, 32-bit data bus, 10 Mbits/s
Battery backup incl. battery watchdog
G3 compliant Z variant available
Benefits:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
