Bently Nevada 7200 Proximity Transducer System Extension Cable
Description:
The 7200 5 mm and 8 mm ProximityTransduccr Systems arc noncontacting, gap-to-voltage transducer systems that measure static as well as dynamic distances between the probe tip and the observed target.The general applicationis any requirement for an accurate, noncontacting displacement measurement. However, the most common use is for shaft position and vibration measurements on rotating and reciprocating machinery. They are designed for use with virtually any machine type including gas and steam turbines, compressors, pumps, centrifuges, electric motors and gencrators. The systems offer 80 mils(2 mm) of linear measuring range and are compatible with API 670 requirements.
A system consists of a probe with integral coaxial cable, an extension cable, and Proximitor. All 7200 proximity transducer systems are compatible with3300 and 9000 Monitoring Systems.

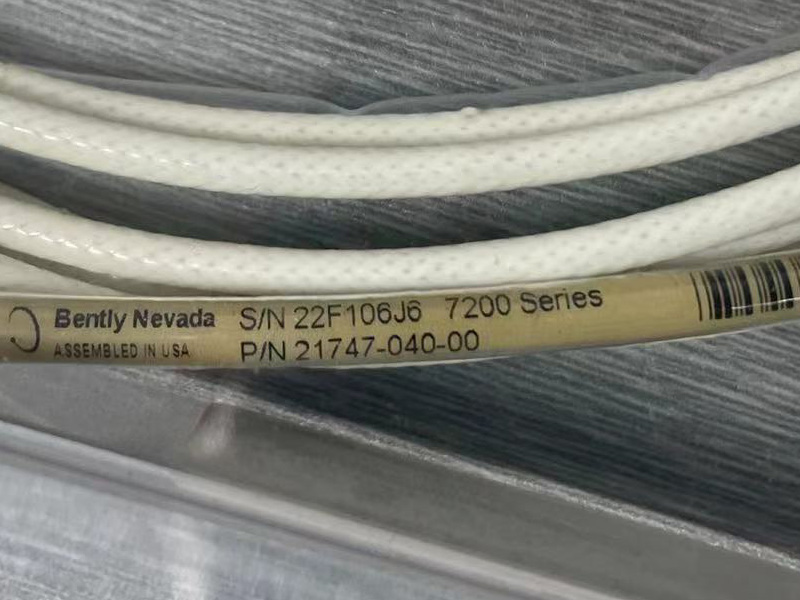

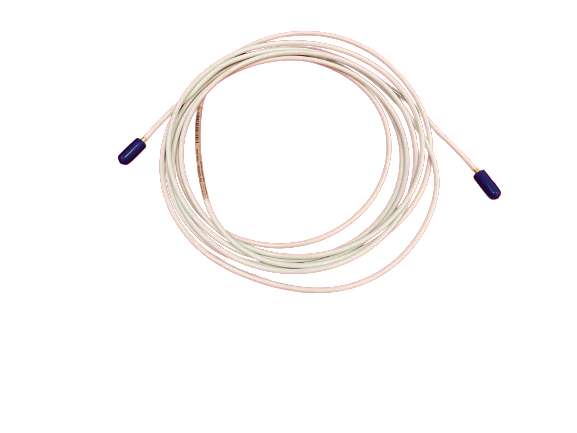

Extension cables
The combination of probe with integral lead and extension cable is designed to achieve a system length of either five or nine metres from probe tip to Proximitor. Probes are available with integral leads of various lengths to match the average extension cable lengths. Probes and cables of the same length, and Proximitors with the same part number, are completely interchangeable.
For added protection, stainless steel armor is available. It provides improved resistance to physical abuse.
