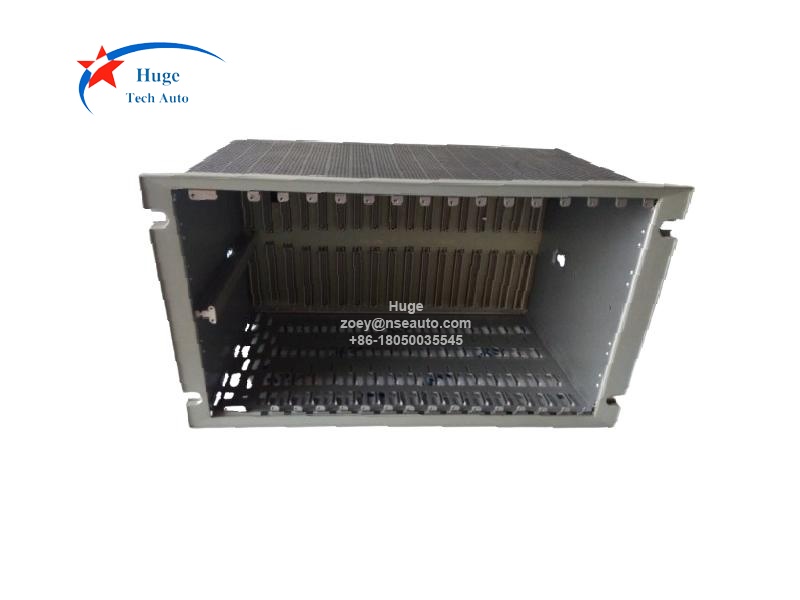

Bently Nevada 3500/05-01-02-00-01 19 inch System Rack
Description：
3500/05-01-02-00-01 is Bently Nevada 19-inch Rack (14 module slots), Rack Mount Option, Full-Size Rack (mounts to 19-inch EIA Rack).
Dimensions: 482.60 x 265.94 x 349.25 mm
The difference between 3500/05-01-02-00-01 and 3500/05-01-01-00-00-01 is the Mounting Options.
Use the 3500 System rack to mount all 3500 monitor modules and power supplies. The rack allows you to place 3500 modules near one another, enabling them to easily communicate, and to mount power supplies necessary to distribute power to each module.
3500 racks are available in two sizes:
Full-size rack. 19-inch EIA rack with 14 available module slots.
Mini-rack. 12-inch rack with seven available module slots.
You can order 3500 racks in three formats:
Panel mount. This rack format mounts to rectangular cut-outs in panels, and secures to the panel using clamps supplied with the rack. Wiring connections and I/O modules are accessible from the rear of the rack.
Rack mount. This rack format mounts the 3500 Rack on 19-inch EIA rails. Wiring connections and I/O modules are accessible from the rear of the rack.
Bulkhead mount. This rack format mounts the rack against a wall or panel when it is not possible to access the rear of the rack. Wiring connections and I/O modules are accessible from the front of the rack. The 3500/05 Mini-Rack is not available in this format.
The power supplies and rack interface module must occupy the far-left rack positions. The remaining 14 rack positions (seven rack positions for the mini-rack) are available for any combination of modules.
Ordering information:
3500/05-AA-BB-CC-DD-EE
