Emerson EPRO PR6423/005-030-CN 8mm Tip diameter Eddy Current Sensor with Eddy Current Signal Converter CON021
Emerson EPRO PR6423/005-030-CN 8mm Tip diameter Eddy Current Sensor with Eddy Current Signal Converter CON021
Brand:
EPROItem NO.:
PR6423/005-030-CN+COOrder(MOQ):
1Payment:
T/TMarket Price:
999Price Range:
1 - 5Product Origin:
GermanyShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 Year
Emerson EPRO PR6423/005-030-CN 8mm Tip diameter Eddy Current Sensor with Eddy Current Signal Converter CON021
Description:

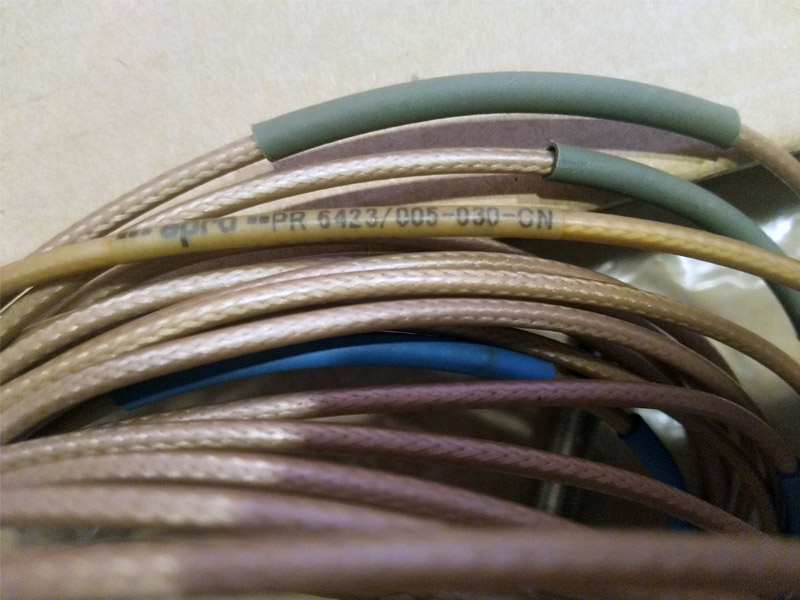

PR6423/005-030-CN is M10x1 75 mm case threads without armored. The cable length is 8 meters without adapter plug, the cable end is Lemo.

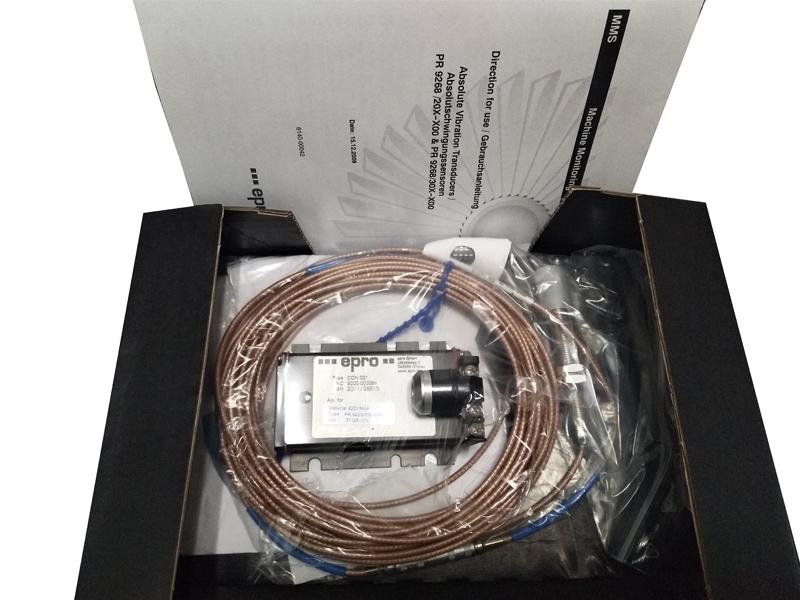

CON021 is 2.0 mm meansuring range Eddy Current Signal Converter.
Both PR6423/002-030 and CON021 is designed for critical turbo machinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed/key.
Ordering Information:
|
Tip Diameter |
Case Threads |
Armored Cable |
Model No. |
|
8mm
|
M10x1
|
No |
PR6423/00 |
|
Yes |
PR6423/01 |
||
|
PR6423/03* |
|||
|
3/8”-24 UNF
|
No |
PR6423/10 |
|
|
Yes |
PR6423/11 |
||
|
PR6423/13* |
|
Model No. |
Case Thread X |
Adapter Plug X |
Cable Length X |
Cable End X |
|
PR6423/00 PR6423/01 PR6423/10 PR6423/11 |
0 25mm 1 35mm 2 45mm 3 55mm 4 65mm 5 75mm 6 85mm 7 95mm 8 105mm 9 115mm C 125mm I 135mm K 145mm E 155mm M 165mm J 175mm L 185mm H 195mm R Reverse Mount |
0 With 1 Without |
0 4.0m 1 5.0m 2 6.0m 3 8.0m F 9.0m 4 10.0m |
0 Lemo* 1 Open |
|
*Not available, if Reverse Mount without Adapter Plug is chosen. |
