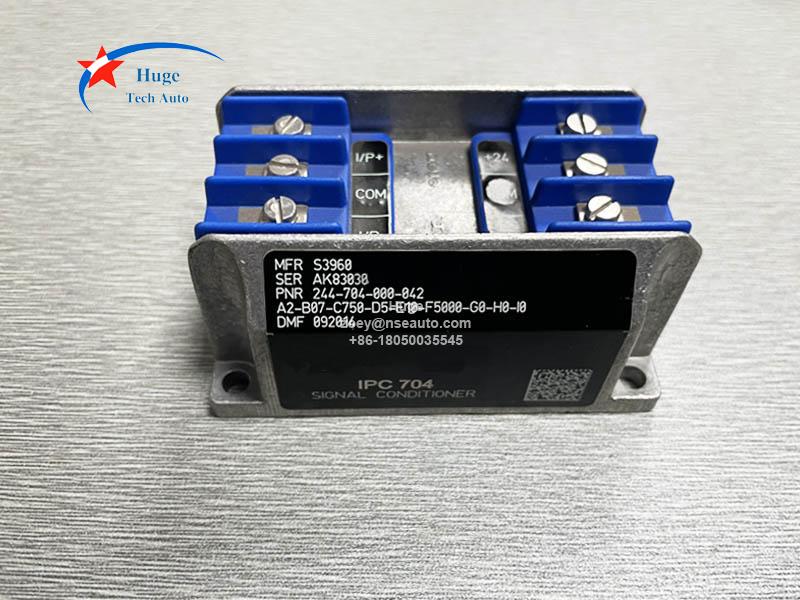

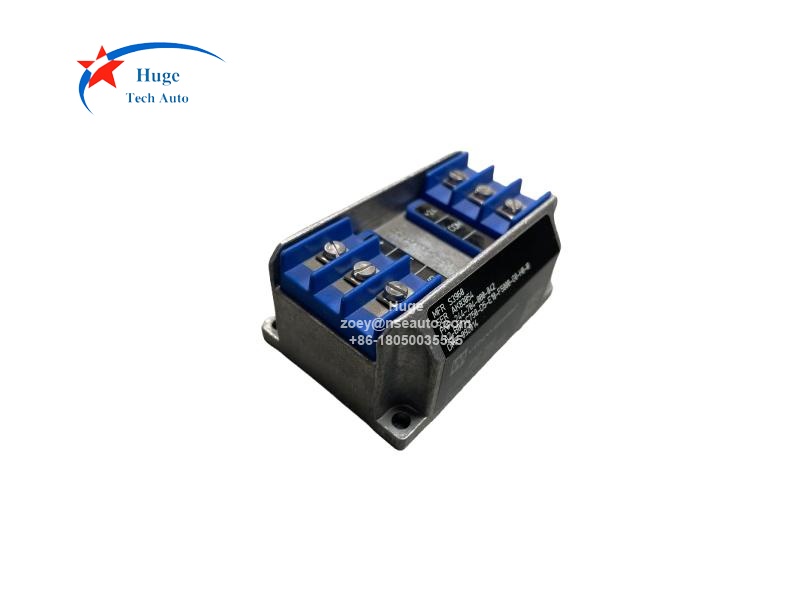

Signal Conditioner IPC704 244-704-000-042 A2-B07-C750-D5-E10-F5000-G0-H0-I0
Description：
IPC704 244-704-000-042 A2-B07-C750-D5-E10-F5000-G0-H0-I0 is desinged as a Signal Conditioner to convert signals from standard piezoelectric dynamic pressure sensors into reliable current output. IPC704 can be used in the industrial and hazardous environment applications. This model is tailored for pressure measurement scenarios, boasting intrinsic safety certification and precision filter tuning that make it a robust choice for critical sensing systems across aerospace, defence and energy sectors.

IPC704 244-704-000-042 A2-B07-C750-D5-E10-F5000-G0-H0-I0 features the A2 Ex i intrinsic safety rating, certified to ATEX, IECEx, NEPSI and cCSAus standards for use in Zone 1 and 2 hazardous areas, with compliance for Class I, Div. 1 Groups A-D and T6 to T4 temperature ratings. Its B07 transfer unit is optimized for pC/bar to µA/mbar conversion, paired with a 750 pC/bar input sensitivity (C750) and D5 output sensitivity for accurate pressure signal translation. The E10 10 Hz high-pass filter (4th order, 24 dB/octave) and F5000 5000 Hz low-pass filter (2nd order, 12 dB/octave) deliver precise frequency shaping, eliminating unwanted noise while preserving critical dynamic pressure data.

Configured as G0 (signal conditioner only), this model comes in an anodized injection-moulded aluminium enclosure, weighing 250g as an Ex version, with M4 screw mounting and 2.5 mm² max wire section screw terminals for input and output. With H0 and I0 no-hole cable fittings, it offers flexible integration into custom enclosures, while its core electronics include RFI filters for electromagnetic interference protection and a charge amplifier with ≤0.2% linearity error and 100 ppm/°C typical temperature stability. Powered by 18-30 V DC (max 25 mA), it operates in -30 to +85°C temperatures and up to 95% non-condensing humidity, with IP40 protection.

Designed for seamless compatibility with CP 10x/2xx piezoelectric pressure sensors, IPC704 244-704-000-042 A2-B07-C750-D5-E10-F5000-G0-H0-I0 supports long-distance transmission via current modulation (up to 1 km with GSI galvanic separation), making it a trusted solution for high-reliability pressure monitoring in extreme and explosive environments.
