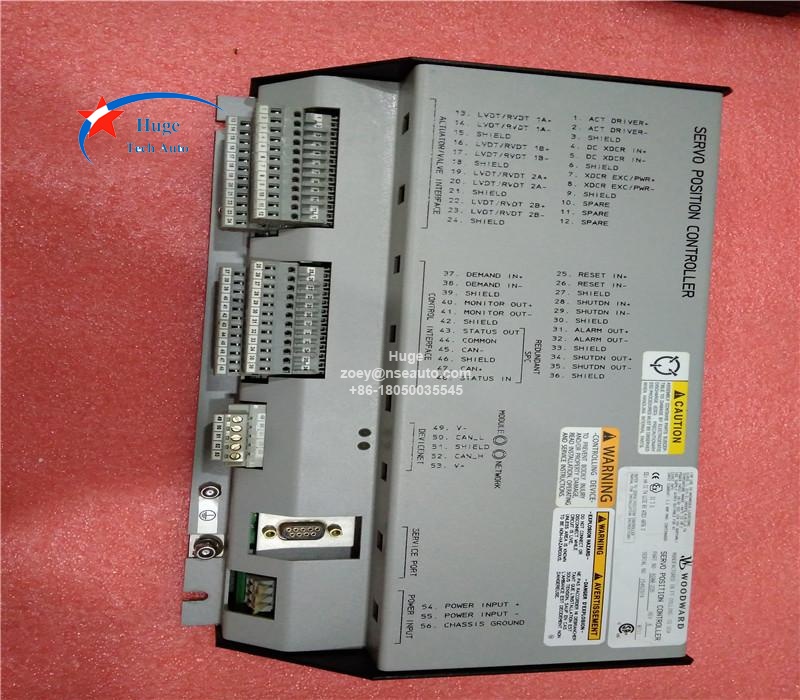

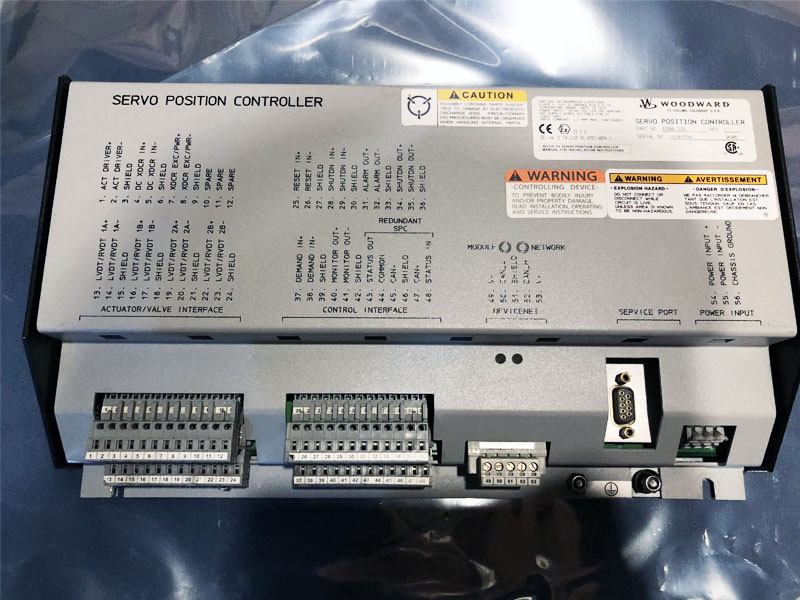

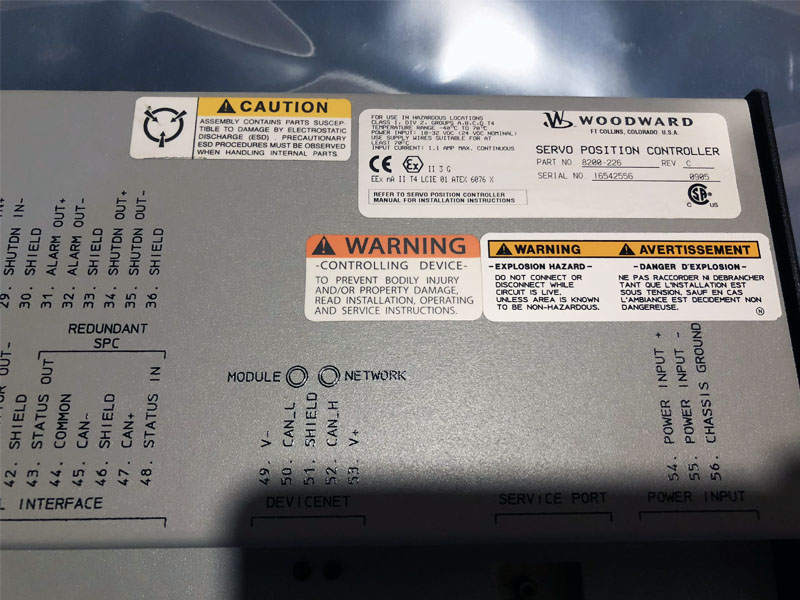

Woodward WOODWARD 8200-226 Servo Position Controller
Description:
8200-226 is belong to Woodward SPC Servo Position Controller family.
The 8200-226 is the latest released model of the SPC (Servo Position Controller). It replaces models 8200-224 and 8200-225.
8200-226 positions a hydraulic or pneumatic actuator based on a position demand signal received from a control. The SPC positions a single-coil actuator using single or dual position feedback devices. The position demand signal can be sent to the SPC via DeviceNet, 4–20 mA, or both. A software program running on a Personal Computer (PC) allows the user to easily configure and calibrate the SPC.

8200-226 is configured by using the SPC Service Tool's configuration file editor to create a file that is then loaded into the SPC. The SPC Service Tool can also read an existing configuration from an SPC into the configuration file editor.
8200-226 requires a voltage source of 18 to 32 Vdc, with a current capacity of 1.1 A max. If a battery is used for operating power, a battery charger is necessary to maintain a stable supply voltage. The power line should be protected with a 5 A,
125 V fuse capable of withstanding a 20 A, 100 ms in-rush when power is applied.

Q&A：
1. What's the nomial voltage and the maximum continuous current of 8200-226?
Nominal Voltage： 24 Vdc
Maximum Continuous Current: 1.1 A

2. What's the transducer power output?
Nominal Voltage: 18 Vdc ±10%
Maximum Load: 120 mA
