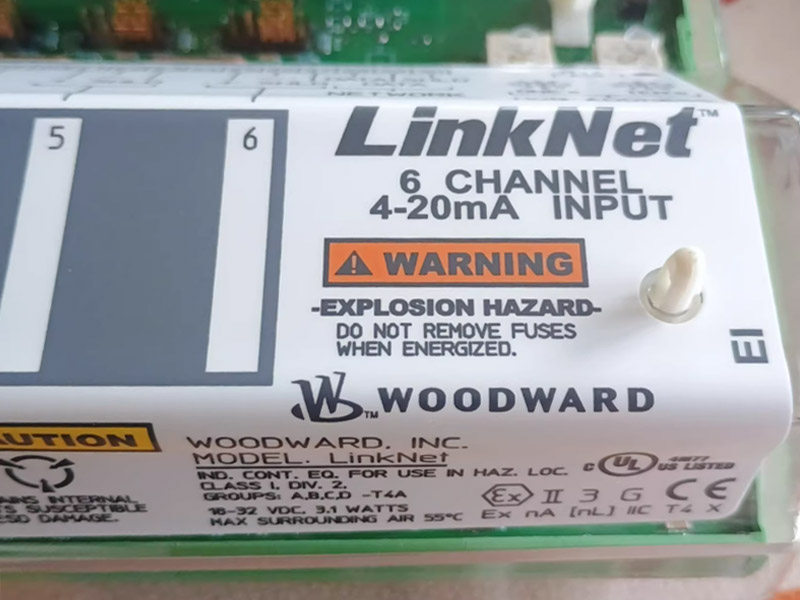

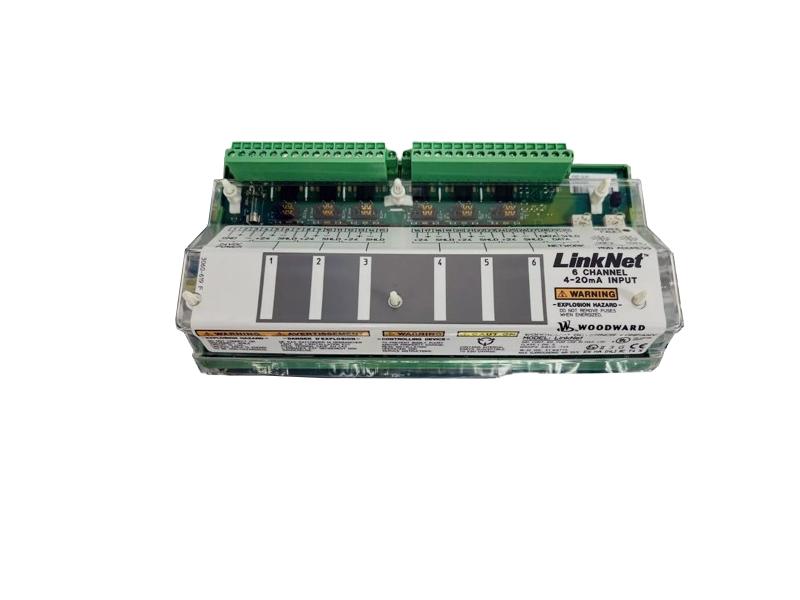

WOODWARD 6-Ch Analog Input Module 9905-969
Description:

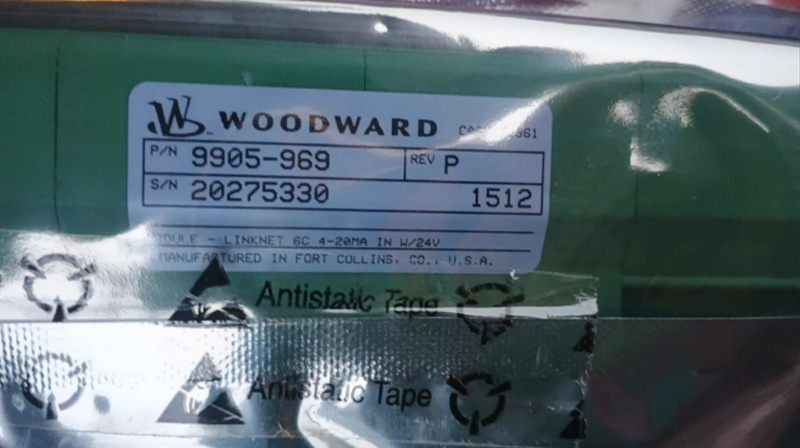

9905-969 is Woodward LON LinkNet Analog Input Module.
The LINKnet* distributed I/O network provides low cost, easy to implement distributed I/O capabilities
for the NetCon* control system. The LINKnet I/O modules, while slower and less powerful than NetCon
I/O modules, are well suited for non-turbine control functions like sequencing and monitoring.
The network consists of a single NetCon module which provides four independent network trunks of up to 60 I/O modules each. The LINKnet modules, or nodes, on each trunk are all attached to the NetCon controller module via a single twisted pair wire. One NetCon controller module can, therefore, interface with as many as 240 LINKnet modules, each having multiple I/O channels, through four twisted pair wires.

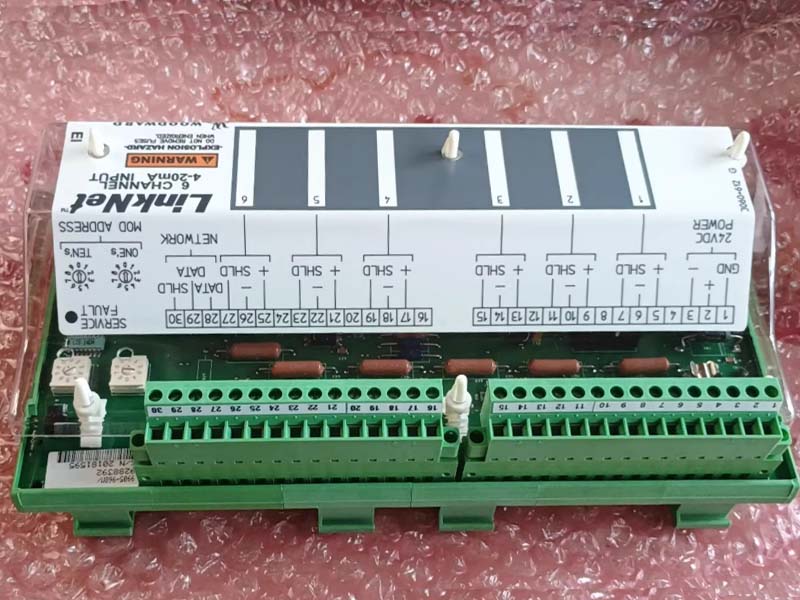

Each of the four channels on the NetCon controller module may run in a different rate group. The rate group for each channel will be defined in the MOE* coder application. All nodes on a network will run at the same rate. Each LINKnet module has two rotary switches that are used to set the network address. On installation, these switches must be dialed so that the module’s number (1 to 60) matches the network address defined for this node in the MOE coder.
