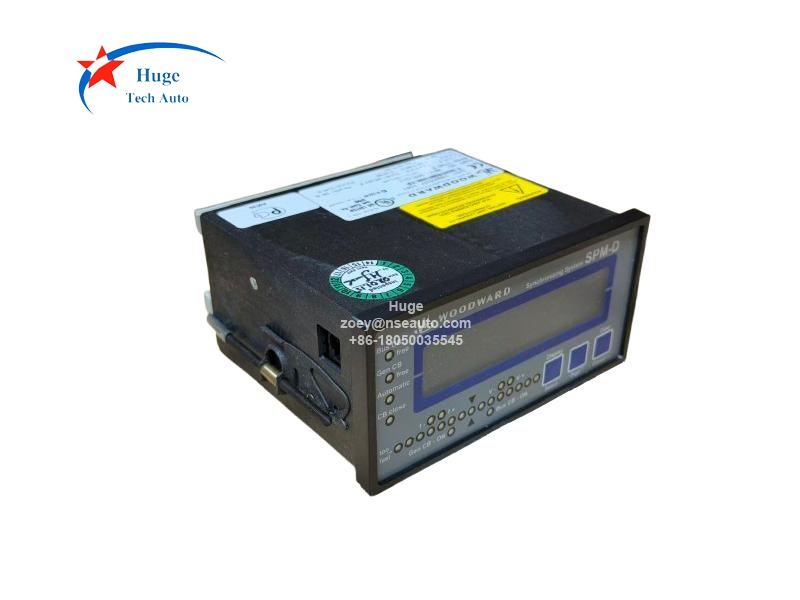

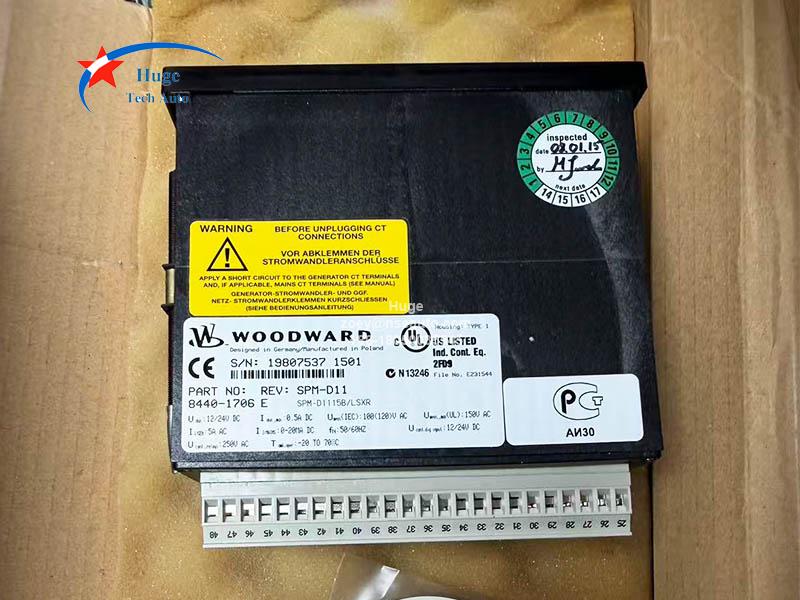

8440-1706 Woodward SPM-D1115B/LSXR Load Share Synchronizer

Description:
8440-1706 is designed as a microprocessor-based synchronizer, manufactured by Woodward. It is LSXR package with 100 Vac PT measuring inputs and 5A CT measuring inputs.  It delivers automatic frequency, phase and voltage matching, integrating circuit‑breaker synchronisation, isochronous load sharing, power factor control and built‑in generator protection.

8440-1706 runs on 12/24 Vdc power supply and works within -20~70°C ambient temperature. It offers Class 1 measurement accuracy, isolated relay outputs and IP42 front protection, suitable for generator synchronising and load sharing applications.

Key Features:
▪  Supports phase‑match and slip‑frequency synchronisation with voltage matching
▪  Delivers true RMS real‑power calculation, isochronous load sharing
▪  LSXR package supplies freely configurable analog, PWM and discrete raise/lower outputs
▪  Integrated generator protection

Applications:
▪  Power plants
▪  Backup power stations
▪  Marine auxiliary power

Expert Recommendations:
1. Use shielded wiring for voltage, current and load‑sharing signal circuits to minimise electromagnetic interference; route control cables separately from high‑power cabling.
2. Always back‑up complete configuration files before firmware updates or unit replacement.

Q&A:
1. What's the payment term of 8440-1706?
The payment term is T/T in advance.
2. What about the warranty period？
We supply 1 year warranty.
3. What's the dimensions of 8440-1706?
144×72×122 mm
4. Will the courier partner ship the module by air or by sea?
DHL, Fedex or UPS will ship the 8440-1706 by air.
