8440-2052 Woodward Genset Controller

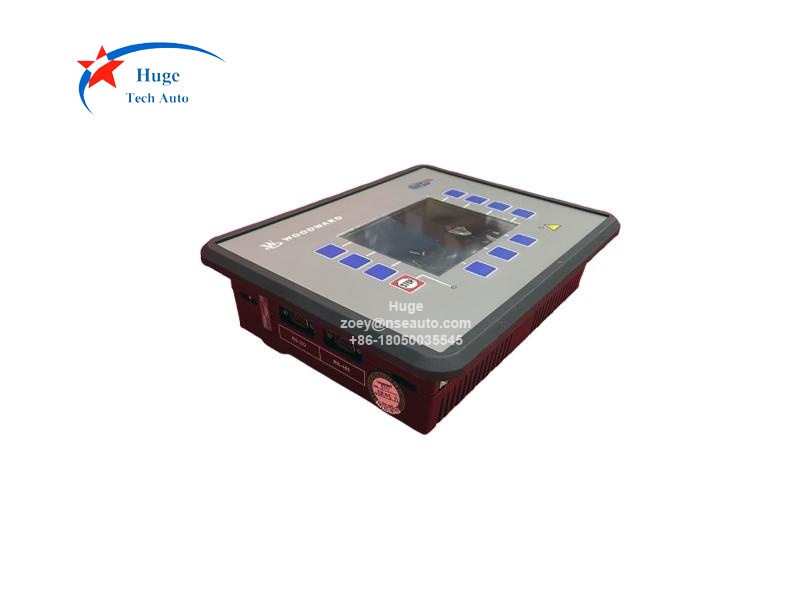

Woodward easYgen-3200 Genset Controller 8440-2052

  • Brand:

    WOODWARD
  • Item NO.:

    8440-2052
  • Payment:

    T/T
  • Product Origin:

    Finland
  • Shipping Port:

    Xiamen
  • Lead Time:

    In stock
  • Weight:

    1.9kg
  • Warranty:

    1 year
Product Detail
Woodward Genset Controller 8440-2052
Description:
8440-2052 is designed as Woodward easYgen-3200 series Genset Controller.
The easYgen-3000 is an exceptionally versatile genset control and protection package with all the flexibility and features needed to fit a wide range of power generation applications.  It allows the user to standardize on a single, affordable control for many uses – from standalone emergency generators to isochronous parallel operation of up to 32 gensets. Common  applications include emergency standby, cogeneration, marine ship/shore power, island prime power or utility paralleling with peak shaving, and import/export control.

FEATURE:
• True RMS voltage and current sensing for generator, bus and mains
• Complete engine/generator protection, metering, and mains monitoring
• LogicsManager™ to combine measured values, internal  conditions, and I/O states with Boolean operators and programmable timers, allowing for complex controls
• Load share 32 gensets in island mode or paralleled to the utility
• Different load or process-dependent start/stop sequencing with  kW/kvar load sharing
• Configurable generator, mains, and generator
• Communication to engine ECUs SCADA, external I/O and RP-3000 remote panel
• Support of CAN open, J1939, Modbus RTU and modem support
• Easy-to-read graphical display
• Selectable display languages (easYgen-3200 / easYgen-3500)

SPECIFICATIONS
Power supply: 12/24 VDC (8 to 40 VDC)
Consumption: max. 17 W
Ambient temperature(storage): -30 to 80 °C / -22 to 176 °F
Ambient temperature(operation): -20 to 70 °C / -4 to 158 °F
Ambient humidity: 95%, non-condensing
Voltage AC input: 120 VAC and 480 VAC true RMS
Current AC input: 1 A or 5 A true RMS, isolated
Discrete inputs (isolated): Range: 12/24 VDC (8 to 40 VDC)
Relay outputs: Relays, dry contacts
Analog inputs: 0 to 500 ohms, 0 to 20 mA
Analog outputs (isolated): ±10 V / ±20 mA / PWM

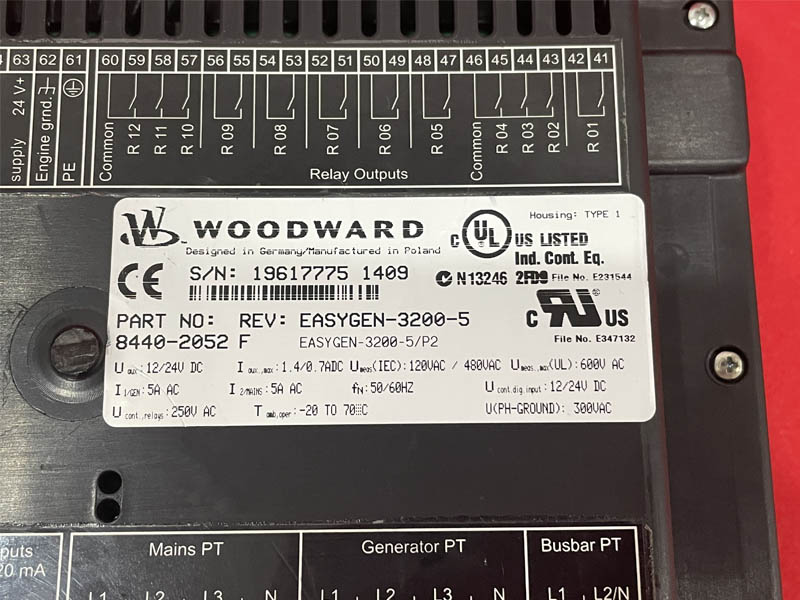

8440-2052

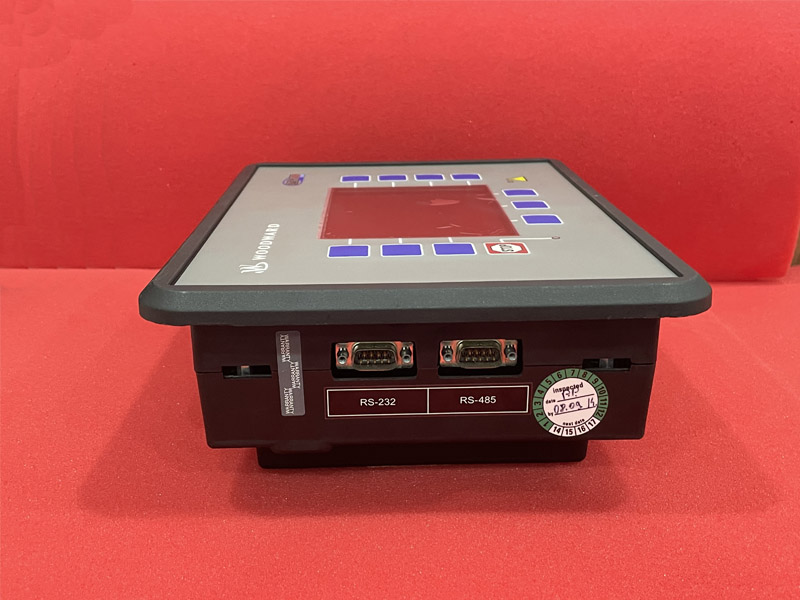

8440-2052

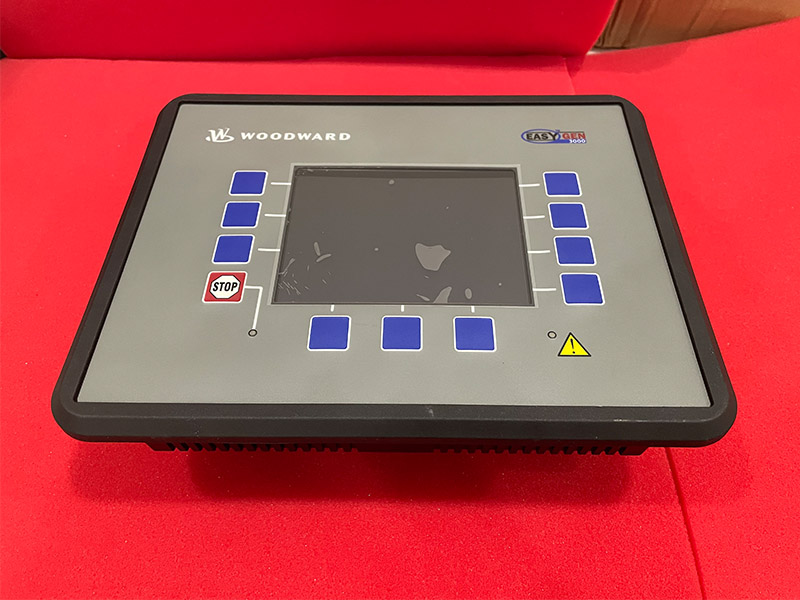

8440-2052
