5501-380 Woodward MicroNet TMR Power Supply 120 VAC/VDC Input

Brand:
WOODWARD
Item NO.:
5501-380
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Shipping Port:
Xiamen
Warranty:
1 year

Product Detail

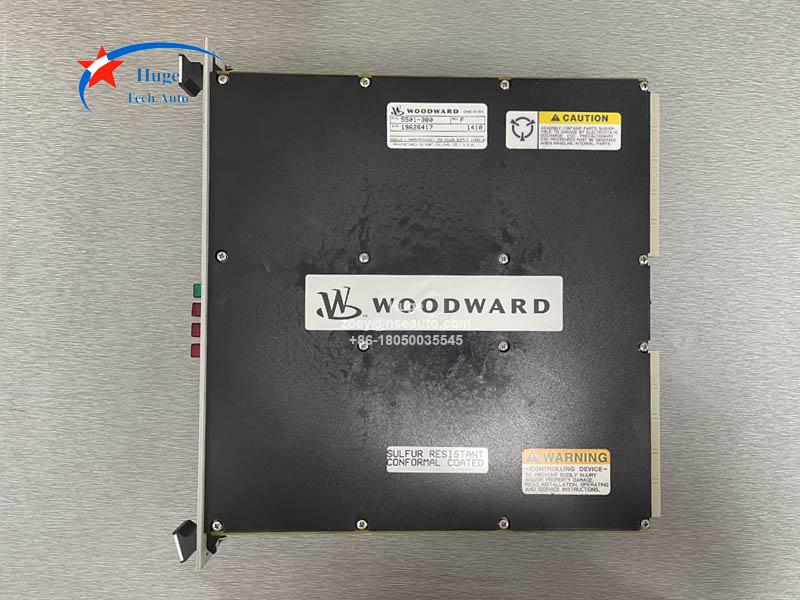

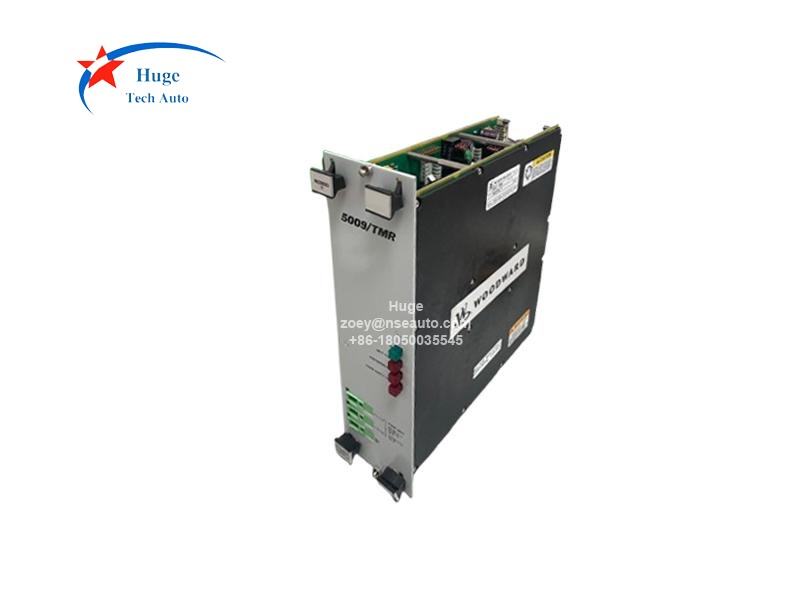

5501-380 Woodward MicroNet TMR Power Supply 120 VAC/VDC Input
Description:
5501-380 is designed as Woodward MicroNet TMR Power Supply. There are 3 versions of MicroNet TMR Power Supply, Low voltage DC, 120VAC/VDC and 220VAC/VDC. 5501-380 is 120 VAC/VDC input.

The MicroNet expansion chassis may use either single or redundant powersupplies. A motherboard located on the back of the chassis allows the two powersupplies to form a redundant power system providing two separately regulated.24 Vdc, 12 A outputs; twwo separately regulated, 5 Vdc, 20 A outputs; and twoseparately regulated, 5 Vdc precharge outouts to the control. Power outputregulation, including line, load, and temperature effects, is less than +5%.

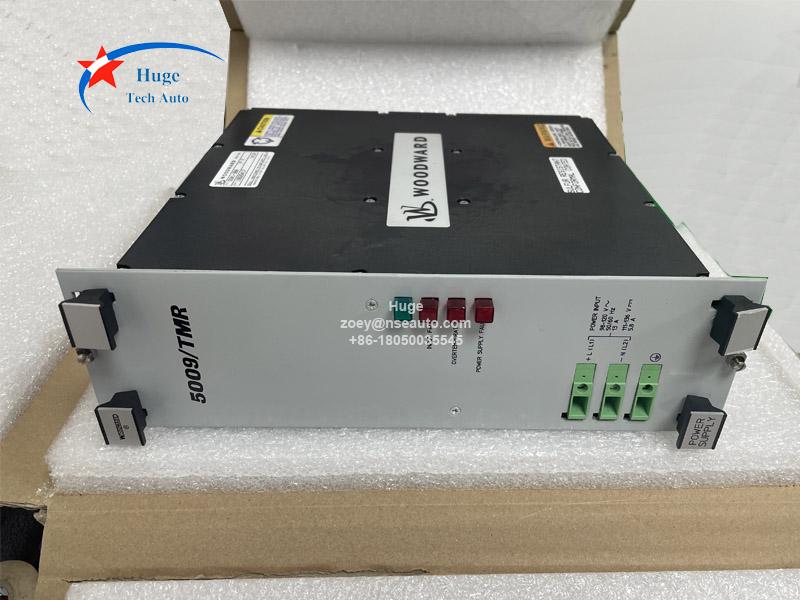

5501-380 has four LEDs to indicate power supply health (OKInput Fault, Overtemperature, and Power Supply Fault). See MicroNet ExpansionPower Supply Troubleshooting (Section 4.13.1) for a description of the LEDindications.

Input power connections are made to the power supply through terminals on thefront of the power supply.

5501-380 can only be installed into slots PA1 (power supply #1) andPA2 (power supply #2). lf redundant power supplies are not needed, blankingplates (3799-301)must be installed in the slots not being used.

Specifications:
AC
Operating range: 88 to 132 Wac (47 to 63 Hz)
Nominal voltage rating: 98 to 120 Vac, as on power supply label
Maximum current: 12.1A
Maximum power: 1062VA
Input power fuse/breaker rating: 20 A time delay
Holdup time: 1 cycle @ 120 Wac
DC
Operating range: 100 to 150 Vdc
Nominal voltage rating: 111 to 136 Vdc, as on power supply label
Maximum current: 5.3 A
Maximum power: 531 W
Input power fuse/breaker rating: 10 A time delay
Holdup time: 7 ms @ 120 Vdc

5501-380
