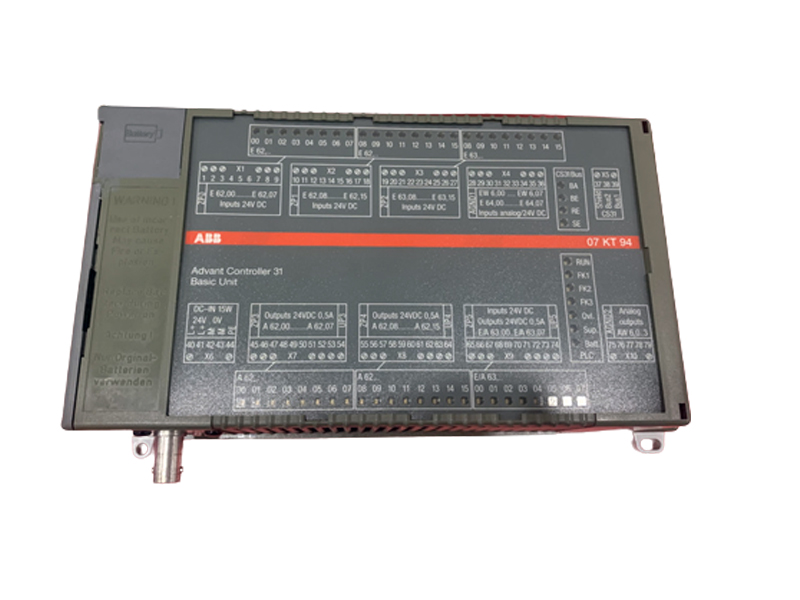

ABB 07KT94 GJR5252100R0261 Advant Controller 31 Basic Unit
Description:

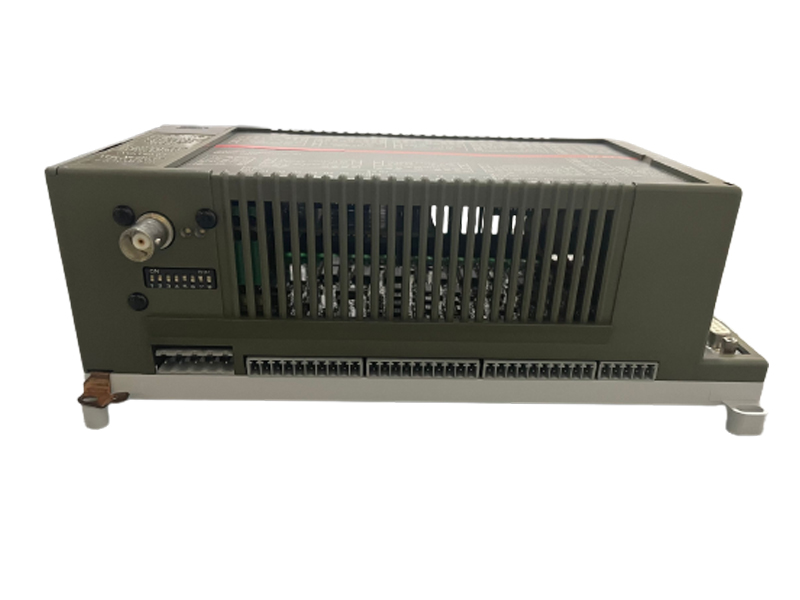

07KT94 GJR5252100R0261 is part of ABB AC31 system basic unit with integrated ARCNET coupler. (The ARCNET coupler interface is designed as a bus with BNC connector for coaxial cable. The ARCNET bus is earthed inside the module via a capacitor. As an EMC measure and for protection against dangerous
contact voltages, the bus has to be earthed directly at a central place.)
The basic unit 07 KT 94 R101 or R201 is the standard device for all applications. In addition, there are basic units with extended performance (e.g. 07 KT 94 R161/R261 with ARCNET connection).
The basic unit 07 KT 94 works either as
· bus master in the decentralized automation system Advant Controller 31 or as
· slave (remote processor) in the decentralized automation system Advant Controller 31 or as
· stand-alone central unit.
The device has a 24 V DC power supply voltage.
ARCNET BNC connector only for R161/R261，not available for R101 and R201
Ordering Information
Basic unit 07KT 94 R101 Order No. GJR5252100R0101
Basic unit 07KT 94 R161 Order No. GJR5252100R0161
Basic unit 07KT 94 R201 Order No. GJR5252100R0201
Basic unit 07KT 94 R261 Order No. GJR5252100R0261
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
