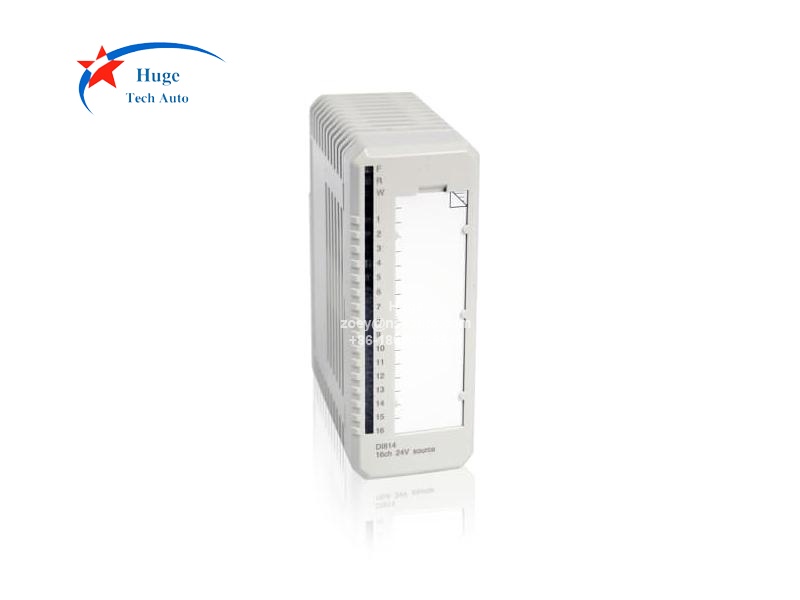

ABB DI814 3BUR001454R1 Digital Input 24V Current 16 ch
Description：
DI814 is part of ABB 800xA control system.
The input voltage range is 18 to 30 volt dc and the input current source is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus.
Module Termination Unit TU810, TU812, TU814, TU830, TU833, TU838 can be used.

Warranty: 12 months.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
