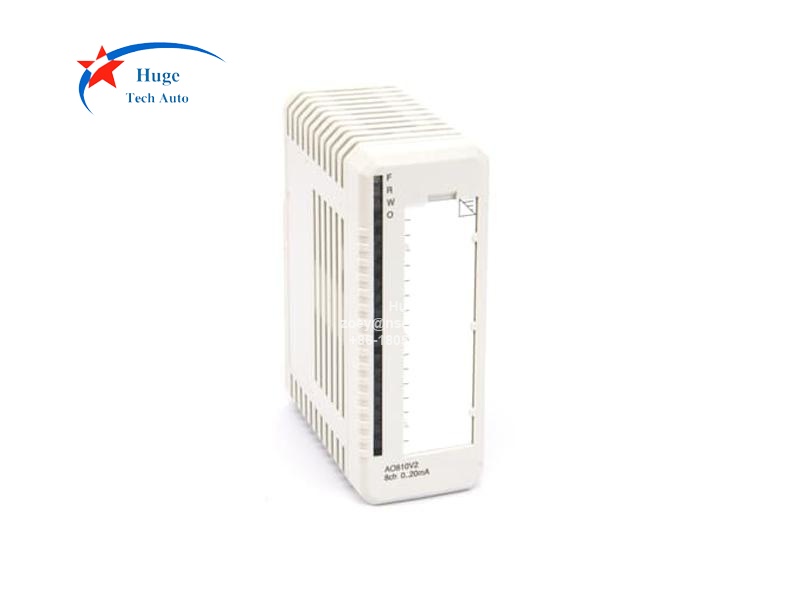

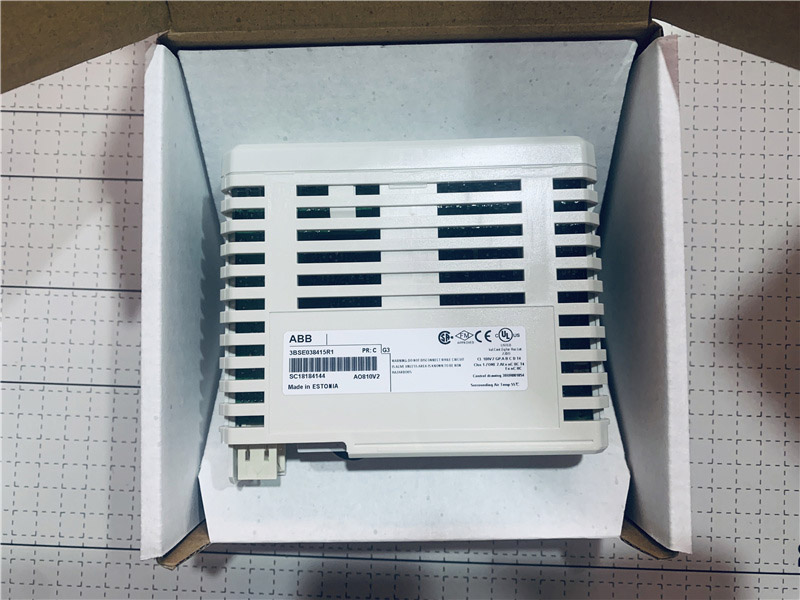

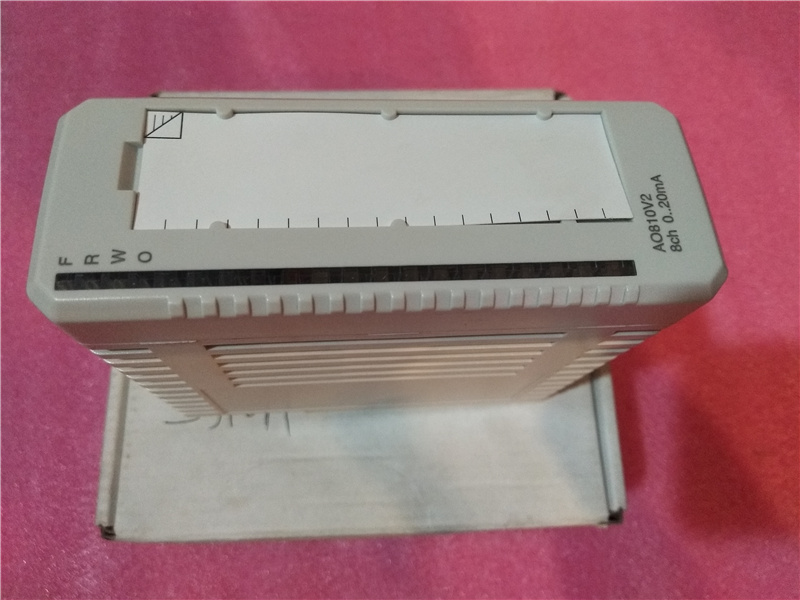

ABB AO810V2 Analog Output 8 ch

Description：

• 8 channels of 0...20 mA, 4...20 mA outputs
• OSP sets outputs to predetermined state upon error detection
• Analog Output is to be short circuit secured to ZP or +24 V

There are eight unipolar analog output channels of AO810V2. In order to supervise the communication to the D/A-converters the serial data is read back and verified. During the readback, the opencircuit diagnostic can be received. The module performs self-diagnostic cyclically. The supervision of process power supply is included in the module. The channel error can be reported as error. The channel diagnostic includes fault detection of the channel (only reported on active channels). The error is reported if the output current is less than the output set value and the output set value is greater than 1 mA.

Termination Unit TU810, TU812, TU814, TU830 or TU833 can be used.

Warranty: 12 months.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
