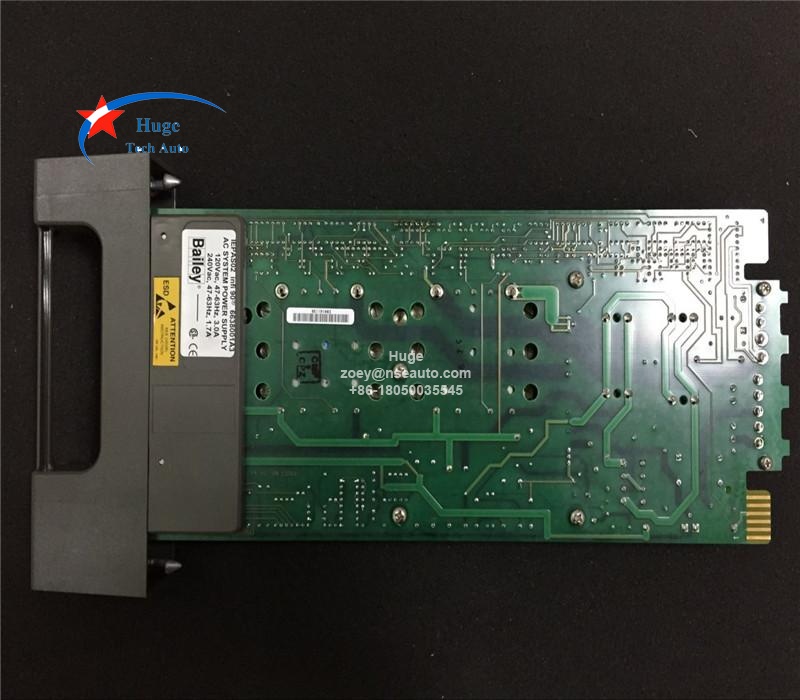

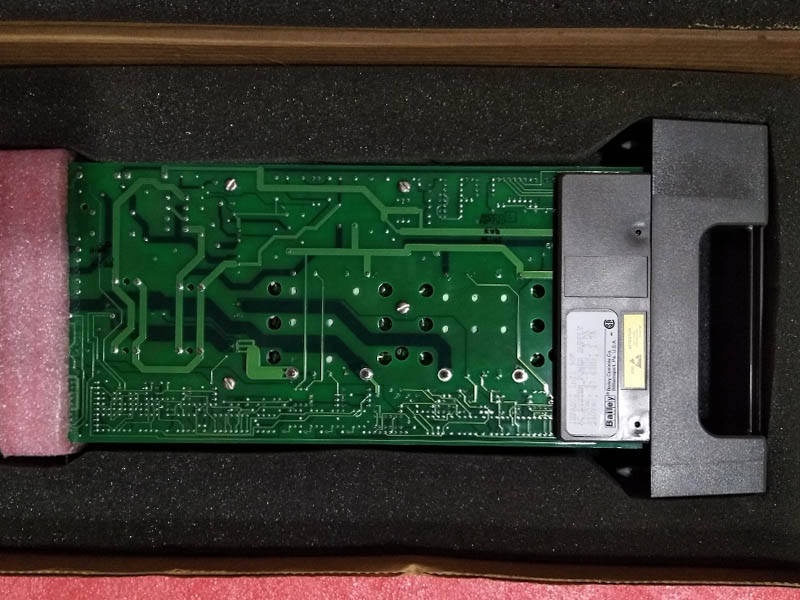

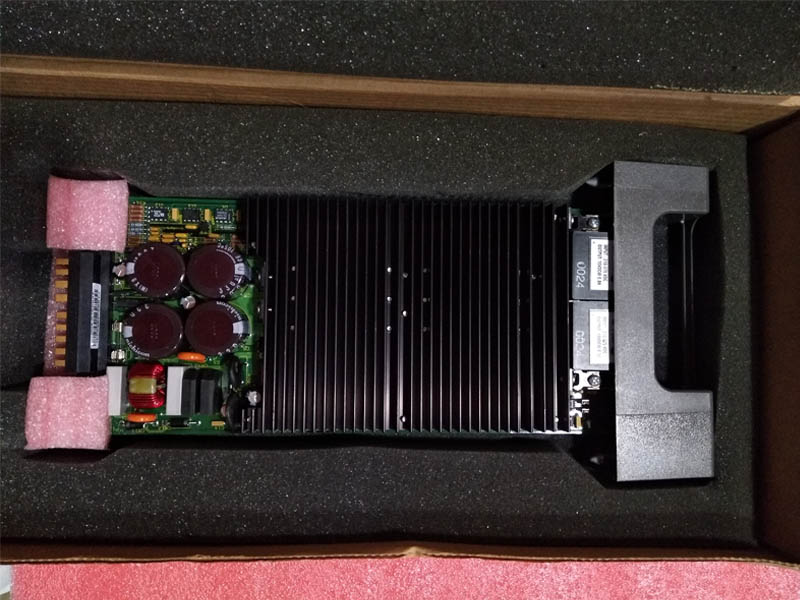

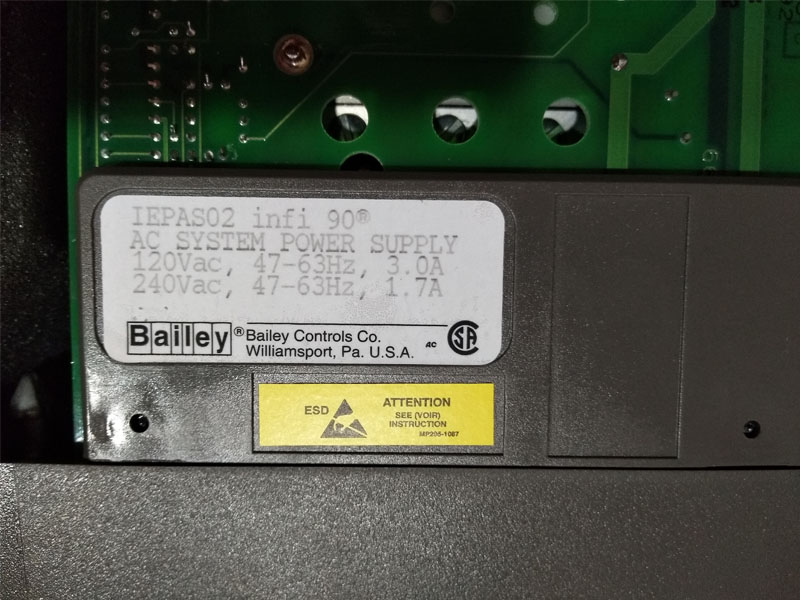

ABB Bailey IEPAS02 AC System Power Supply
Description:
IEPAS02 is ABB INFI 90 system AC modular power supply. IEPAS02 rovides +5, +15, -15 and +24 VDC to power process control modules and field termination devices.

IEPAS02 System Power Module converts the 120/240 VAC at the MMU backplane to a primary voltage of 325 VDC nominal. The DC-to-DC converters convert the primary voltage to secondary regulated voltages of +5, +15, -15 and +24 VDC.

These voltages travel through the system power bus bar to other module mounting units for distribution to process control modules.

Power modules mount directly in the module mounting unit or power mounting unit. Use any slot except the rightmost slot (slot 12) when mounting a power module in a module mounting unit.
Mount the power modules in any slot when using a power mounting unit. For optimum heat dissipation and power distribution, do not exceed more than two IEPAS02 modules in any module mounting unit. Install at least one IEPAS02 module in the module mounting unit with the largest load (e.g., a module mounting unit containing several multi-function processor modules).

IEPAS02 supersede the IEPAS01 and are compatible replacements.

Warranty: 12 months.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
