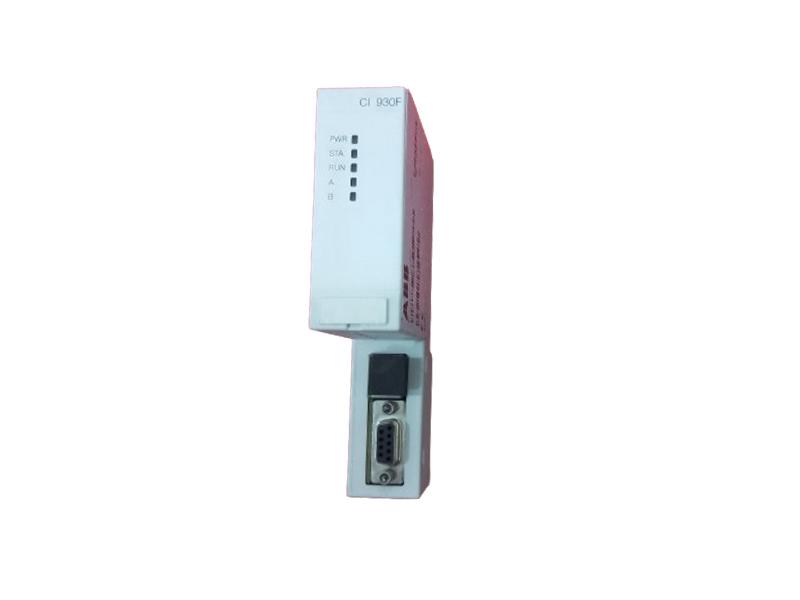

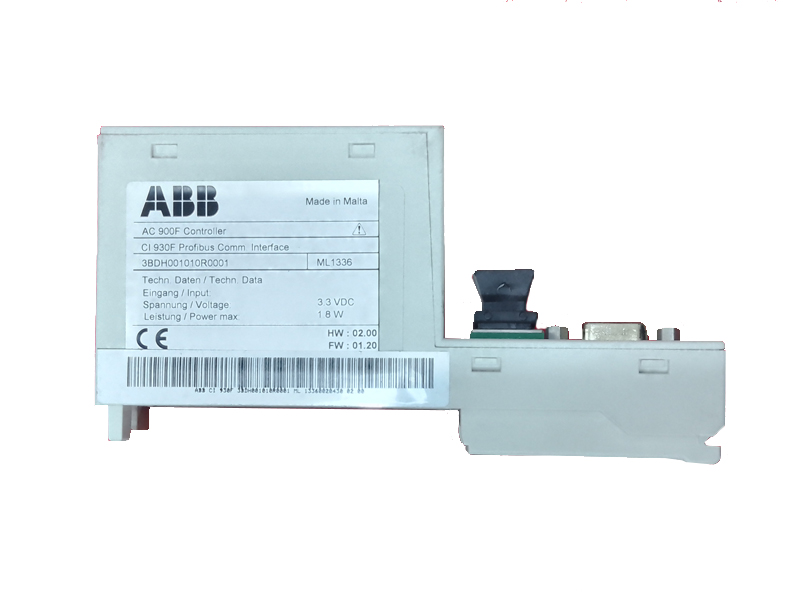

ABB CI930F 3BDH001010R0001 Profibus Communication Interface
Description:
The CI903F is part of the AC 900F communication modules. CI 930F is module is a PROFIBUS DP master, but with additional features compared to CI 773F. CI 930F supports built-in line redundancy.
Each PROFIBUS module allows the connection of a PROFIBUS line of maximum of 126 slaves. Each of these slaves can be modular.
Transmission protocol: PROFIBUS DP master, DP-V0/V1
Transmission rate: 9.6 kBit/s to 12 MBit/s
Transmission standard: EIA RS-485 acc. to EN 50170, potential free
Fieldbus connectors: 2 x D-SUB, 9-pole, female
Number of slaves: up to 126
Useable CPU: PM 904F, PM 902F or PM 901F
Data interchange: 64 kB module, dual-port memory
PROFIBUS line redundancy: yes
Support controller redundancy: yes, with AC 900F
Hotplug, hot configuration in run: yes, with AC 900F
Current consumption: 80 mA, via 24 V terminal of CPU module
Power dissipation: 1.8 W
Status display: PWR, STA, RUN, Line A, Line B
Protection: IP20
Weight: 115 g (0.25 lbs)
Dimensions: Width: 28 mm (1.1 inch), Height: 152 mm (5.98 inch), Depth: 85 mm (3.35 inch)
Ambient temperature: Operation: -20 .. +70 °C (-4 °F .. 158 °F), Storage: -40 °C .. +85°C (-40 °F .. 185 °F)
Certificates / Approvals: CE, ANSI/ISA 71.04-1985 G3, cULus, UL Class I Div 2 (Group A,B,C,D), EAC
