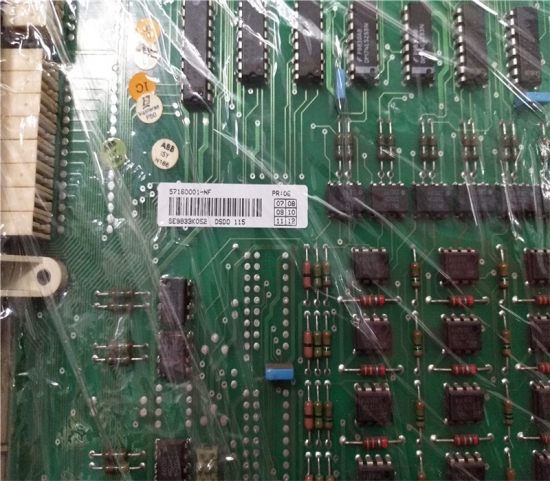

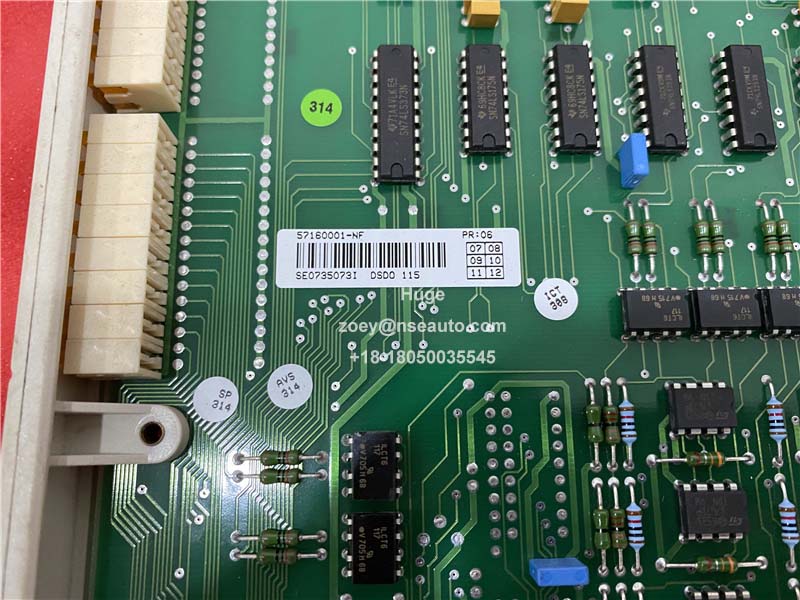

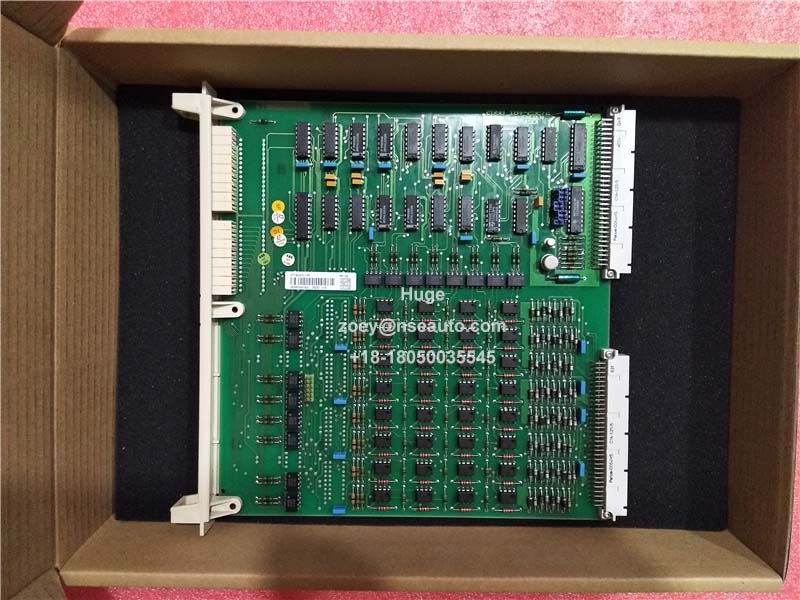

ABB DSDO115 57160001-NF Digital Output Unit
Description:
The DSDO 115 digital output set consist of standard, 32 channels, DSDO 115, digital output boards and a, DSTD N007, termination board with signal splitting. The 24 VDC transistor outputs are short circuit proof and can supply maximum 150 mA pr. channel.
The field power are supplied through the termination board and can be single or redundant.
The DSDO 110 digital output set consist of standard, 32 channels, DSDO 110, digital output boards and four, DSTD N010, termination boards with signal splitting.
The potential free relay outputs can break loop voltage from 24 VDC to 250 VAC.
The safety digital output sets are used for status indication and other non-safety critical signals.
