ABB IEMMU01 Module Mounting Unit
Description:

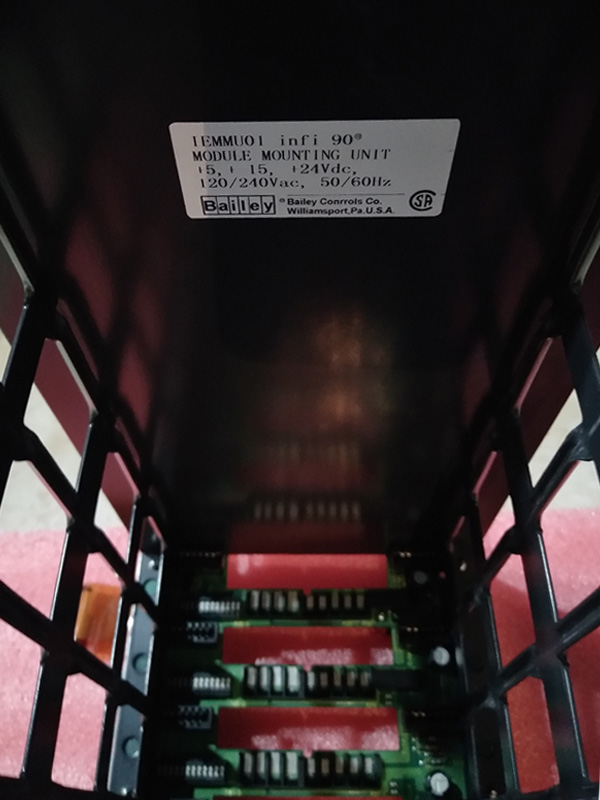

IEMMU01 is ABB Infi 90 system Module Mounting Unit. IEMMU01 provides the housing, power connections and signals for power supply and process control modules.

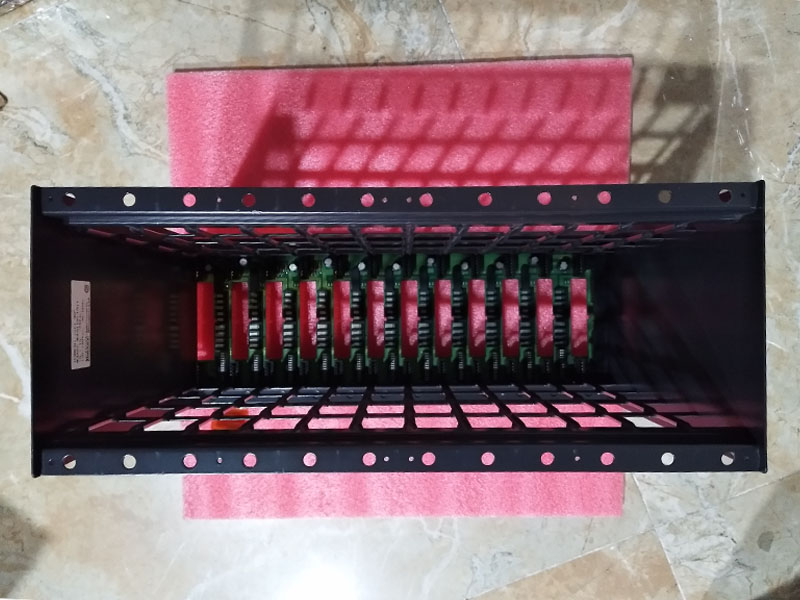

The module mounting unit consists of a sheet metal card chassis and a printed circuit board backplane assembly. The open top and bottom structure allow air to flow over the modules. Mounting flanges are provided for mounting the mounting unit in a standard Elsag Bailey 483-millimeter (19-inch) cabinet.

Modules can be installed and removed quickly and easily. The module is held in position by card guides, the connectors on the backplane, and the module’s front panel, captive fastening latches.

The backplane is a multilayer printed circuit board assembly containing electronic components, dipshunt sockets, connectors, and jumpers. In most cases, the mounting unit provides direct I/O cable coupling to the modules. The exception to this is when a BRC-100 Harmony Bridge Controller module is installed in the MMU.

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
