ABB Symphony Plus SPIET800 Ethernet CIU Transfer Module
Description:

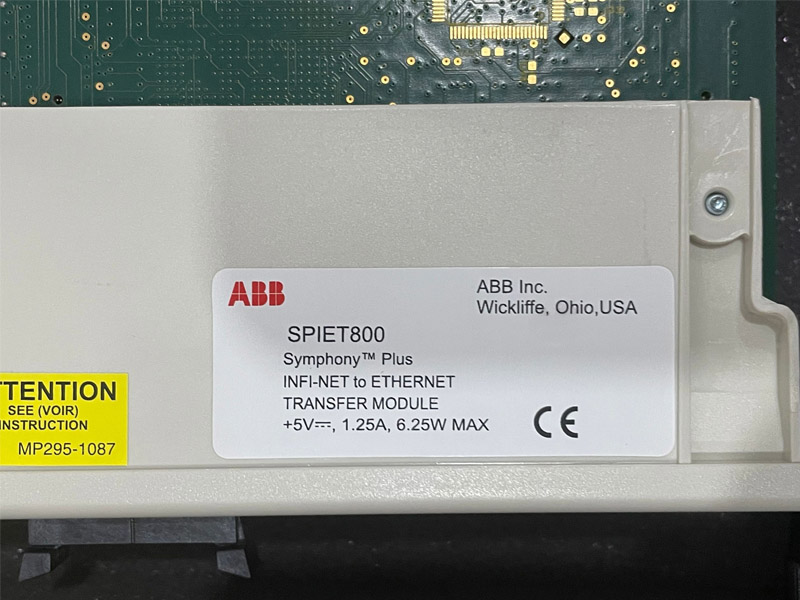

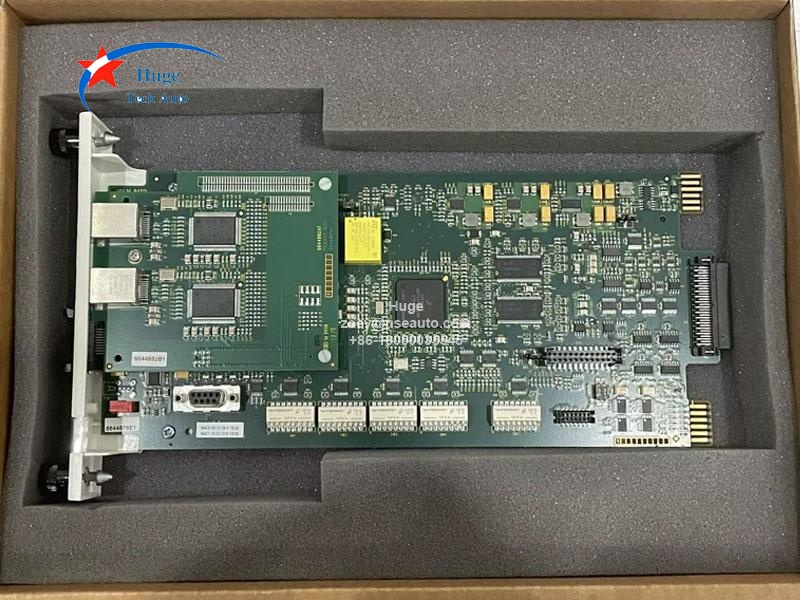

The IET800 module is a single printed circuit board with an Ethernet daughterboard (for Ethernet communication over TCP/IP) mounted on it. The IET800 module occupies one slot in the MMU. The circuit board contains microprocessor based communication circuitry that enables it to directly communicate with its NIS21 module by interfacing to the I/O expander bus.
For an IET800 module to communicate with a computer, the communications settings for client applications such as the S+ Engineering: Composer Harmony tool or an HSI must be configured. The Harmony System Configuration (hSysCfg) program is used to configure communications with the IET800 module. This section explains how to configure the IET800 module using the hSysCfg software program.
The program executable - hSysCfg.exe, is located in C:\Program Files\ABB Symphony Plus\Engineering\Harmony API\EXE sub-directory. By default, you can change the location during installation, if required. During S+ Engineering:
Composer Harmony tool installation process, a shortcut to hSysCfg.exe is created in the Windows Start Menu; Start > Programs > ABB Symphony Plus > Engineering > HarmonyAPI > ABB Harmony System Configuration Utility. Click on the shortcut or use Windows Explorer to navigate to the hSysCfg.exe executable file and double-click on the file to start the program.
The hSysCfg program contains product version information that is available when you right-click the hSysCfg.exe file, select Properties option, and then select the Version tab. The product version information is in the format ww.xx.yyy
where:
ww Major version
xx Minor version
yyy Build number
This information may be needed when performing upgrades or reporting issues with hSysCfg.
The IET800 module supports Ethernet or RS-232 communications. The following sub-sections explains the configuration using either of these connection types.
