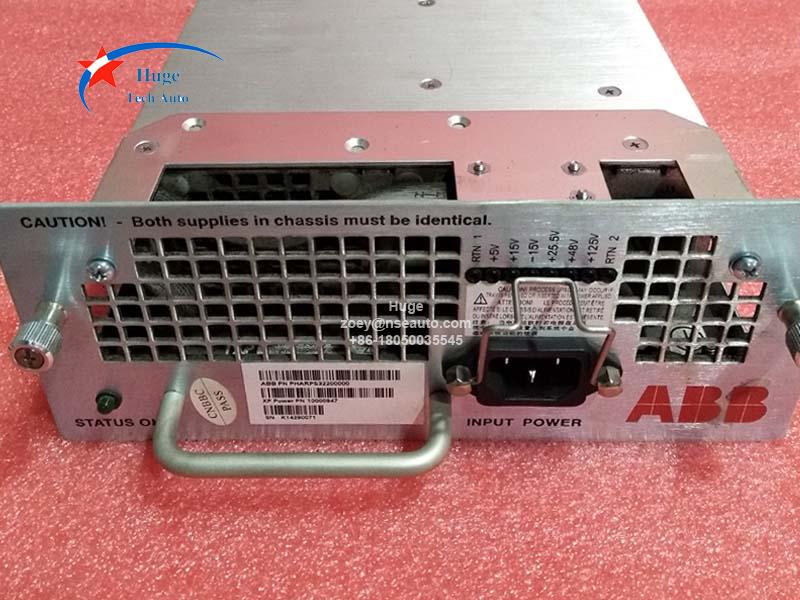

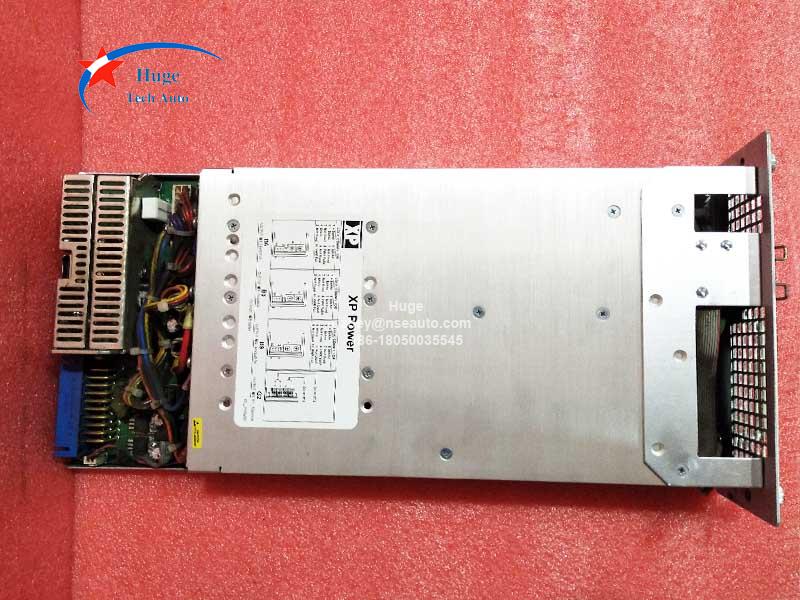

ABB PHARPS3200000 POWER SUPPLY
Description:
PHARPS3200000 is designed as ABB Symphony Harmony power supply. It belong to Modular Power System III.

The Modular Power System III (MPSIII) supplies 5 VDC,±15 VDC, 24 VDC, 48 VDC, and 125 VDC power to Harmony Rack components of the Symphony Enterprise Managementand Control System. The power system . This power system can be used to power INFI 90 OPEN system components. The MPS III can replace of MPS ll system. The MPS III system consists of a power chassis, PEP, fanassembly, DC bus monitoring assembly, and power supply.

PHARPS3200000 is 5 VDC at 60 A, ±15 VDC at 3 A each,24 VDC at 17 A. PHARPS3200000 slide into the power chassis and aresecured with thumb screws. Install in a power chassis power supply must be the same type. Input voltages to a redundant pair of power supply may be from different sources and of different voltages. AC inputs have active power factor correction to greater than 0.95. Sharing circuitry allows the power supply to equally share output current. The power supply monitor sits output and internal temperature and displays the status with an LED. Input power to each power supply is provided by a cord that connects to the PEP.

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
