ABB SPDSO14 Digital Output Module
Description:

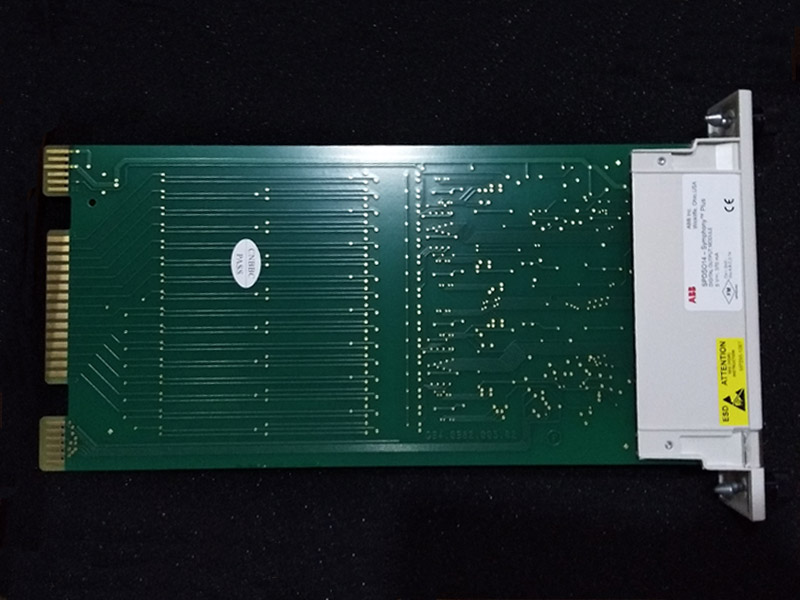

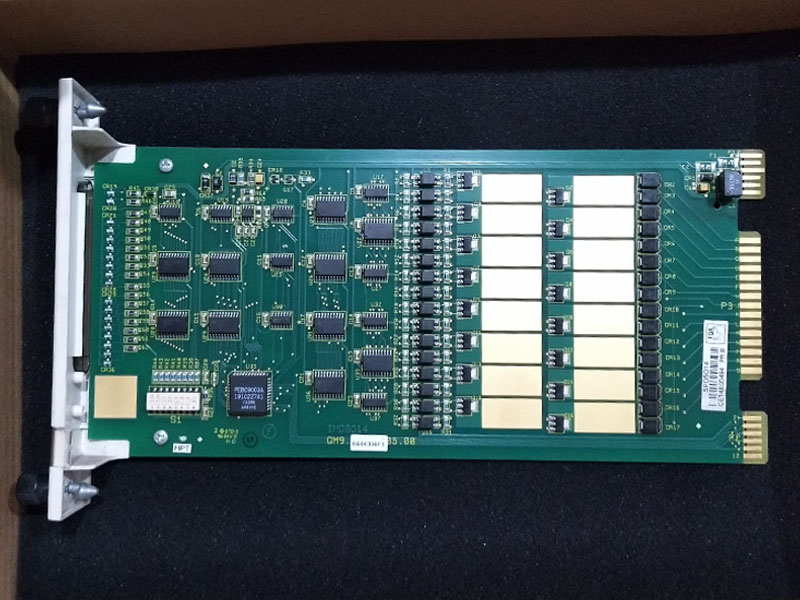

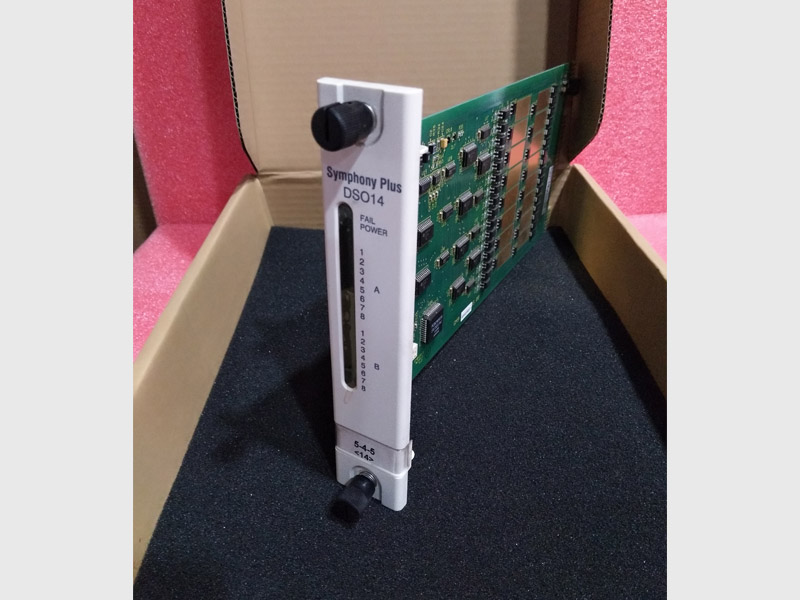

SPDSO14 is part of ABB Symphony Plus system module. SPDSO14 is a digital output module,  processes up to 16 digital open-collector control outputs for a Symphony Plus controller. Each channel is optically isolated and can switch 24 VDC at 250 mA and 48 VDC at 125 mA. The module can cable-connect to solid state relays on the NTDO02 termination unit. Optionally, the module can also cable-connect to a relay assembly to drive electromechanical relays.

Specifications:
Power requirements: 5 VDC, ± 5% at 275 mA typical
Digital input channels: 16 optically isolated, independently configured, open-collector channels
Load voltage: 24 VDC at 250 mA max, 48 VDC at 125 mA max.
Ambient temperature : 0 °C to 70 °C (32 °F to 158 °F)

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
