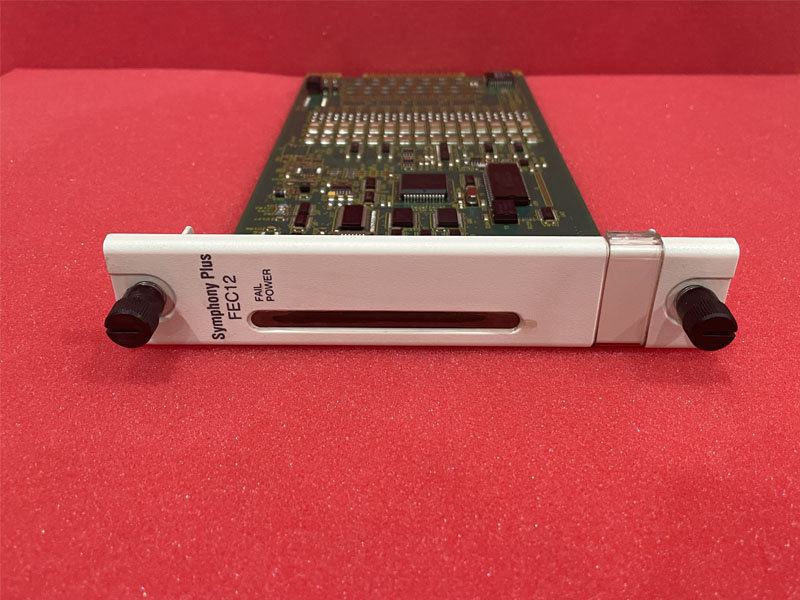

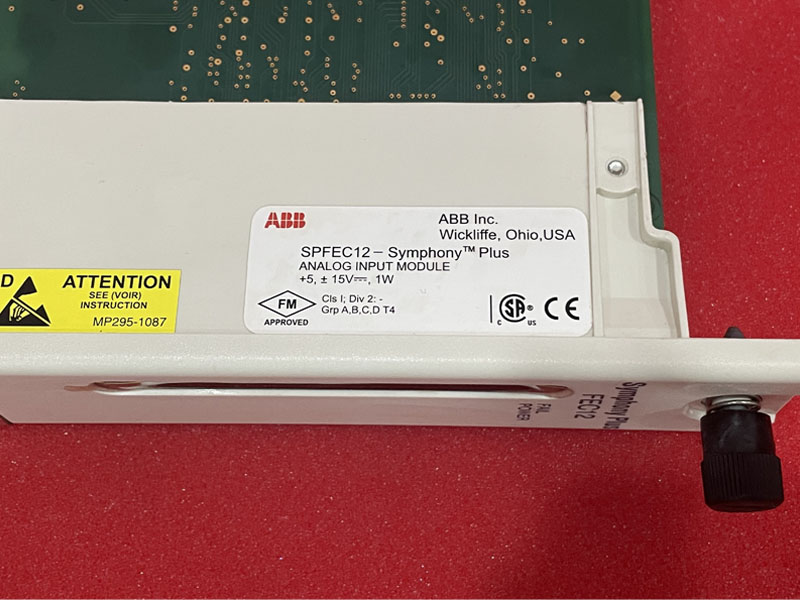

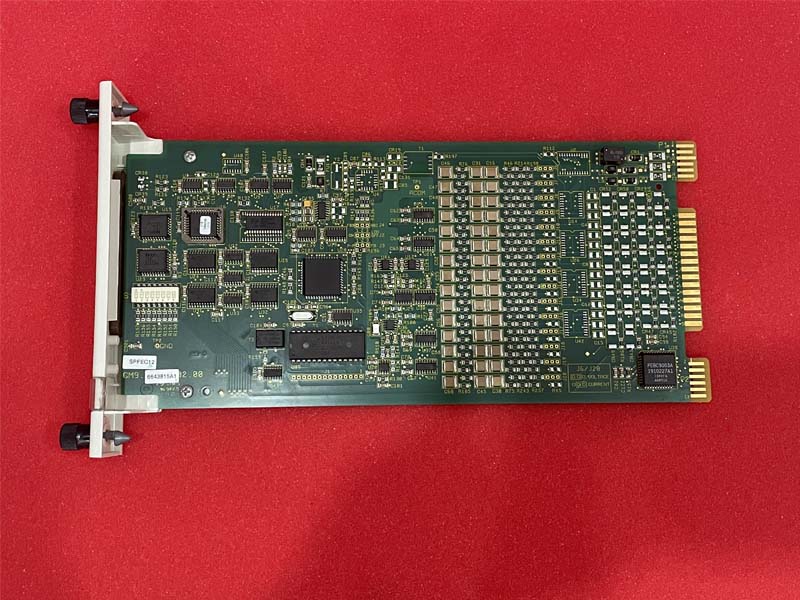

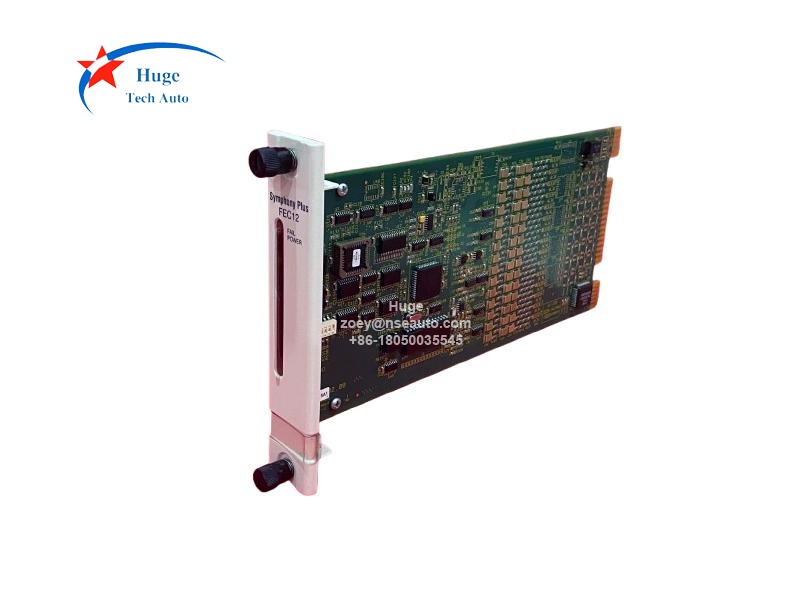

ABB SPFEC12 AI Module, 15 CH, Supports 4-20mA, 1-5V
Description:
The SPFEC12 is part of ABB Symphony Enterprise Managementand Control System. SPFEC12 is a Analog input Module The SPFEC12 module inputs 15 channels of analog signals.

The SPFEC12 module provides 15 channels of analog input signals. Each channel has a 14-bit resolution and can be individually programmed. The SPFEC12 interfaces analog signals from field devices to the controller. It is designed for use with conventional transmitters and standard analog inputs to monitor and control a process.

ABB Ability™ Symphony® Plus is one of the most widely used DCS and SCADA systems in energy and process applications worldwide. In all, there are more than 7,500 Symphony Plus control system installations in operation all over the world, with more than 5,000 of which are supporting energy applications.

Symphony Plus maximizes efficiency and reliability through automation, integration and optimization of the entire plant, facility or network. It provides SIMPLE, SCALABLE, SEAMLESS, SECURE™ total plant automation, including tight integration of all control equipment and geographical information systems. Symphony Plus is part of the ABB Ability portfolio of unified, cross-industry digital solutions that enable businesses to harness the power of industrial data and generate actionable
insights that help them drive performance and productivity improvements.

Specifications:
Power requirements: 5 VDC, ± 5% at 85 mA typical
                                +15 VDC, ± 5% at 25 mA typical
                                –15 VDC, ± 5% at 20 mA typical
                                  1.1 W typical
Analog input channels: 15 independently configured channels
Current: 4 to 20 mA
Voltage: 1 to 5 VDC, 0 to 1 VDC, 0 to 5 VDC, 0 to 10 VDC,
              -10 to +10 VDC
Ambient temperature: 0 °C to 70 °C (32 °F to 158 °F)

Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
