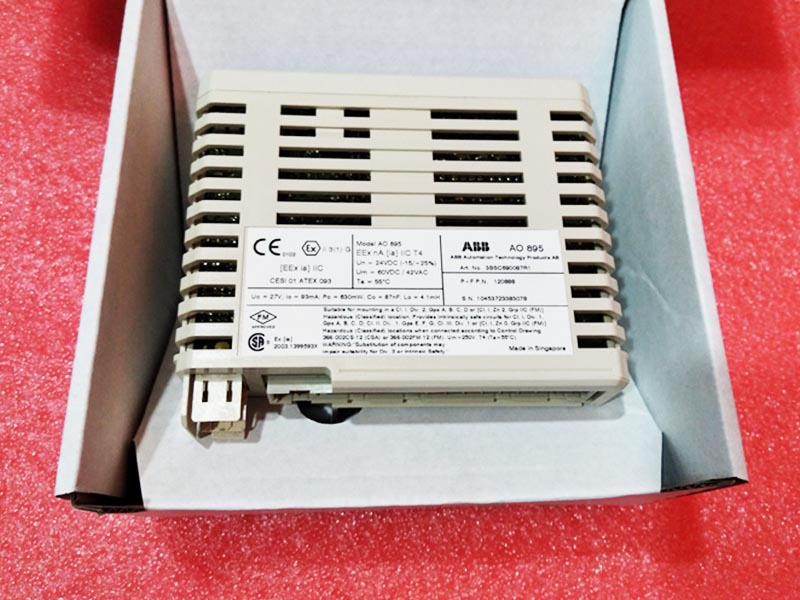

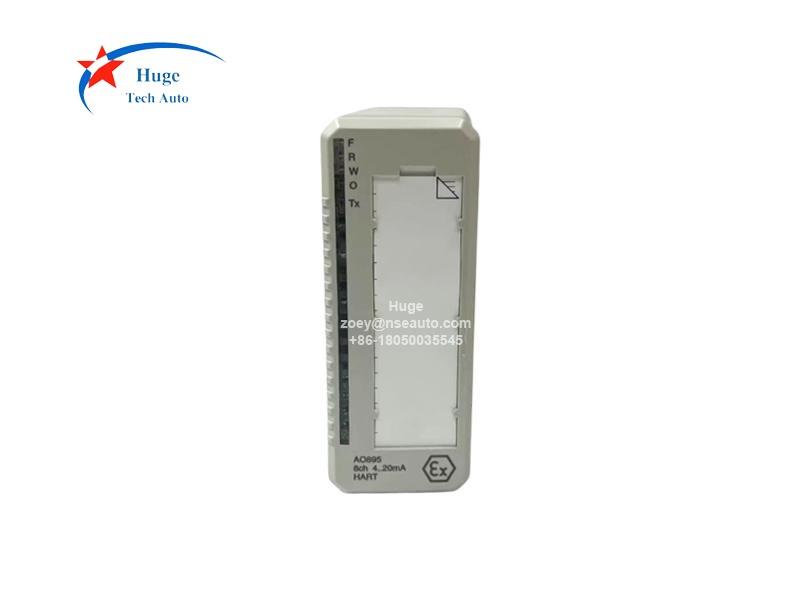

ABB AO895 3BSC690087R1 Analog Output IS HART 8 ch
Description:
AO895 is desinged as ABB 800xA control system analog output module. AO895 has 8 channels and includes Intrinsic Safety protection components and a HART interface on each channel for connection to process equipment in hazardous areas without the need for additional external devices.

Each channel can drive up to 20 mA loop current into a field load such as an Ex-certified current-to-pressure converter and is limited to 22 mA in overload conditions. All eight channels are isolated from the ModuleBus and power supply in one group. Power to the output stages is converted from the 24 V on the power supply connections.

Specifications:
Type: Analog Output
Signal specification: 4...20 mA
Number of channels: 8
Signal type: Unipolar single ended
HART: Yes
Resolution: 12 bit
Isolation: Groupwise isolated from ground
Under/over range: 2.5 / 22.4mA
Output load: <725 ohms at 20 mA, no over-range
                    <625 ohms at up to 22 mA
Error: Typ. 0.05%, Max. 0.1% at 650 ohms
Temperature drift: Typ. 50 ppm/°C, Max. 100 ppm/°C
Rise Time: 30 ms (10% to 90%)
Current limiting: Short circuit proof current limited output
Rated insulation voltage: 50 V
Dielectric test voltage: 500 V a.c.
Power dissipation: 4.25 W
Current consumption +5 V Modulebus: Typ. 130 mA
Current consumption +24 V external: Typ. 250 mA, Max. <330 mA
Dimensions: 102x119x45 mm
Weight: 0.3kg

Q&A:
1.What's the terminal module can be used with AO895?
TU890, TU891 and TU891Z
2. What's the features and benefits of AO895?
• 8 channels of 4...20 mA outputs.
• HART communication.
• 1 group of 8 channels isolated from ground.
• Power to drive Ex certified I/P actuators.
