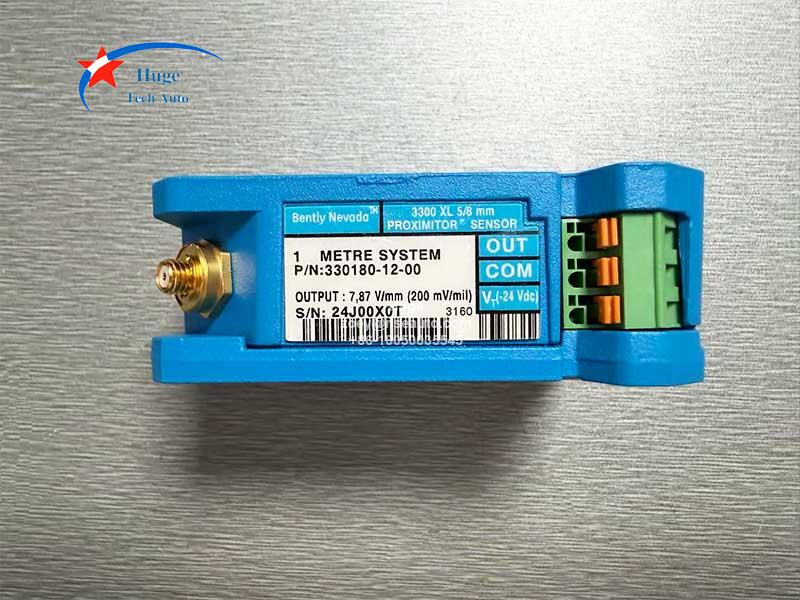

Bently Nevada 330180-12-00 3300 XL Proximitor Sensor
Description：
330180-12-00 is belong to Bently Nevada 3300XL 8mm Proximity Transducer System. As a Proximitor Sensor, 330180-12-00 works for a 1 meter system length, it is no mounting hardware.

Major Features:
▪ Compatible work in high-density DIN-rail installations.
▪ Highly immune to radio frequency interference
▪ Electrical isolation
▪ Removes the requirement for dedicated isolator plates
▪ Certificate for European CE mark approvals
▪ Lower installation costs
▪ Easy to install
▪ Interchangeable with non-XL 3300 8 mm sensor
▪ Compliance with API 670

Application:
1. Rotating Machinery with Fluid-Film Bearings
Deployed on equipment equipped with fluid-film bearings to support two types of monitoring:
▪ Dynamic measurement: Shaft vibration monitoring
▪ Static measurement: Shaft position (axial / radial displacement) monitoring
2. Rotational Speed & Phase Reference Acquisition
Supply Keyphasor phase reference signals and enable rotational speed measurement of the shaft.

Ordering Information:
3300 XL Proximitor Sensor
330180-AA-BB
A: Total Length and Mounting Option
10 1.0 meter (3.3 feet) system length, panel mount
11 1.0 meter (3.3 feet) system length, DIN mount
12 1.0 meter (3.3 feet) system length,no mounting hardware
50 5.0 meters (16.4 feet) system length, panel mount
51 5.0 meters (16.4 feet) system length, DIN mount
52 5.0 meters (16.4 feet) system length, no mounting hardware
90 9.0 meters (29.5 feet) system length, panel mount
91 9.0 meters (29.5 feet) system length, DIN mount
92 9.0 meters (29.5 feet) system length, no mounting hardware
B: Agency Approval Option
00 Not required
05 CSA, ATEX, IECEx Approvals
