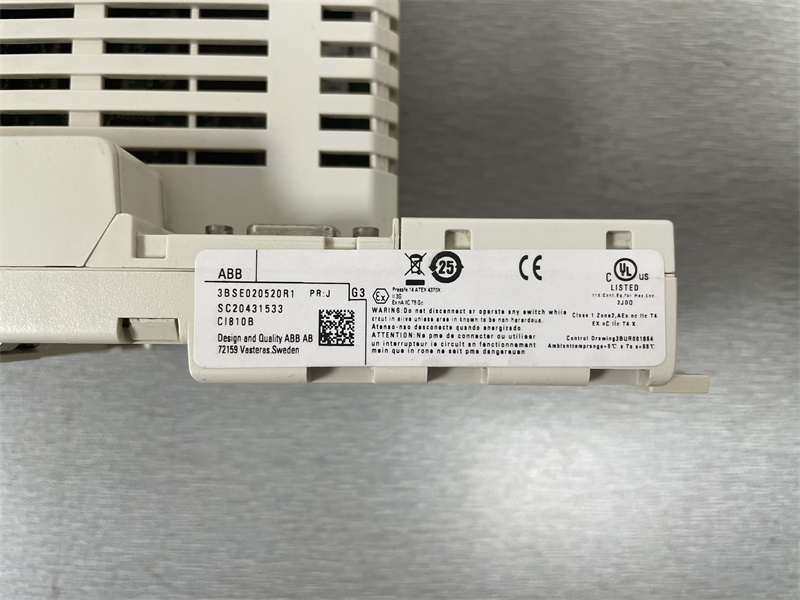

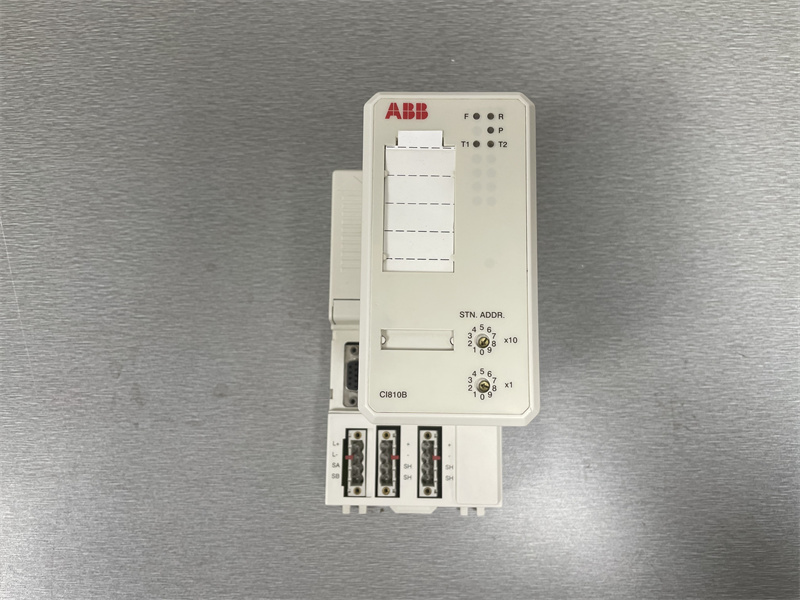

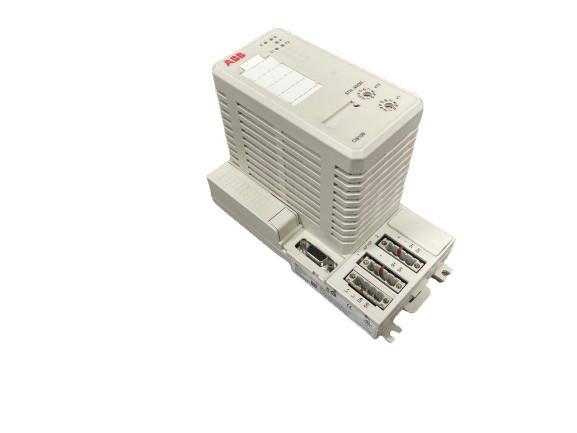

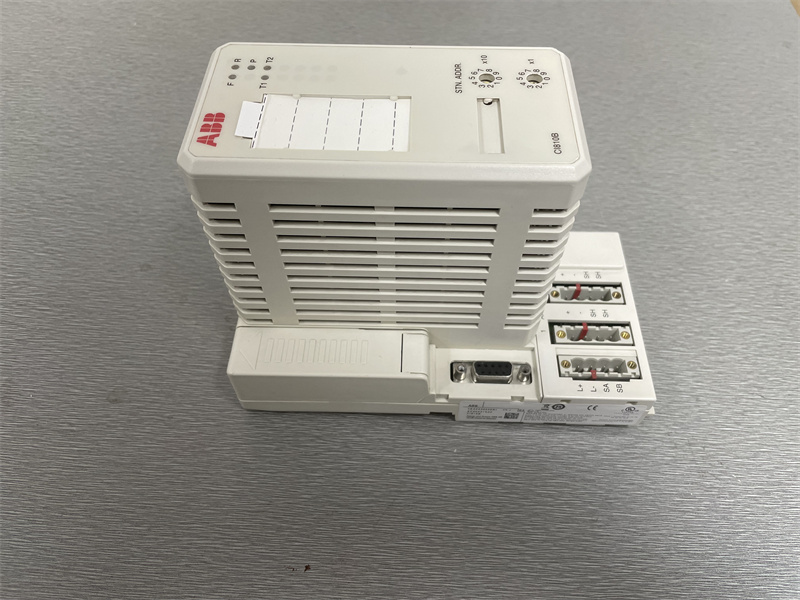

ABB CI810B 3BSE020520R1 AF100 Field  Communication Interface
Description:
The CI810 is the Fieldbus Communications Interface (FCI), manufactured by ABB. It is an intelligent communication interface between an Advant Controller via the Advant Fieldbus 100 and the S800 I/O modules via the MODULEBUS. CI810 support full redundant media.

The termination board collects most external wiring connections. It is earthed to the DIN rail via a metal spring connector. Equipped with screw terminals, the board supports power supply connection, redundant power monitoring and Advant Fieldbus 100 twisted-pair bus wiring.

The CI810 is connected to the Advant Controller via Advant Fieldbus 100.

CI810A is replaced by CI810B.

The package including:
1 pce Power Supply Connector 3BSC840098R1
1 pce TB807 Modulebus Terminator 3BSE008538R1
2 pcs Terminal Blocks 3BSC840098R1

Features:
▪ Fieldbus Communication Interface, successor model of CI810A
▪ Communication bridge linking Advant Controller and S800 I/O modules over AF100 & Modulebus
▪ Supports redundant Advant Fieldbus 100 twisted-pair transmission
▪ Termination board with screw terminals for power, redundant power monitoring and bus connection
▪ Metal spring contact provides secure DIN rail earthing
▪ Full accessory kit supplied: TB807 terminator, power connector and terminal blocks
