ABB CI856K01 3BSE026055R1 S100 I/O Interface
Description:

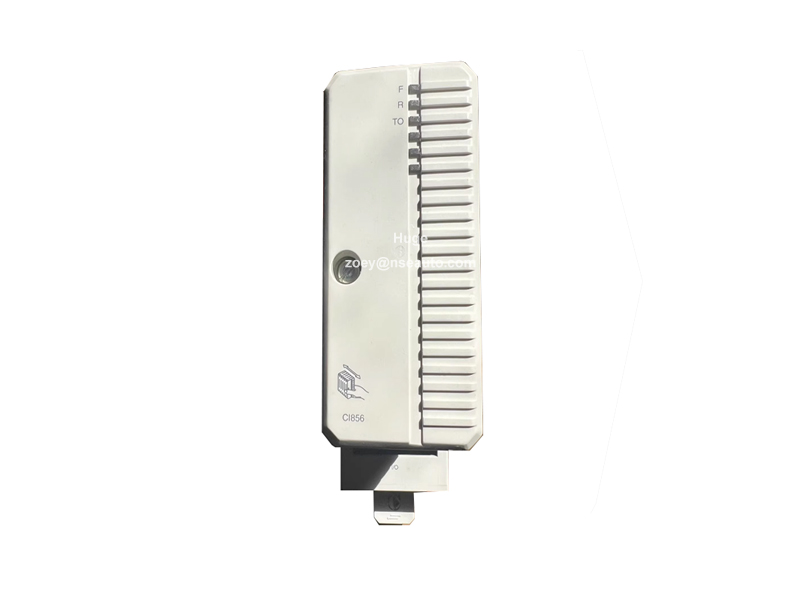

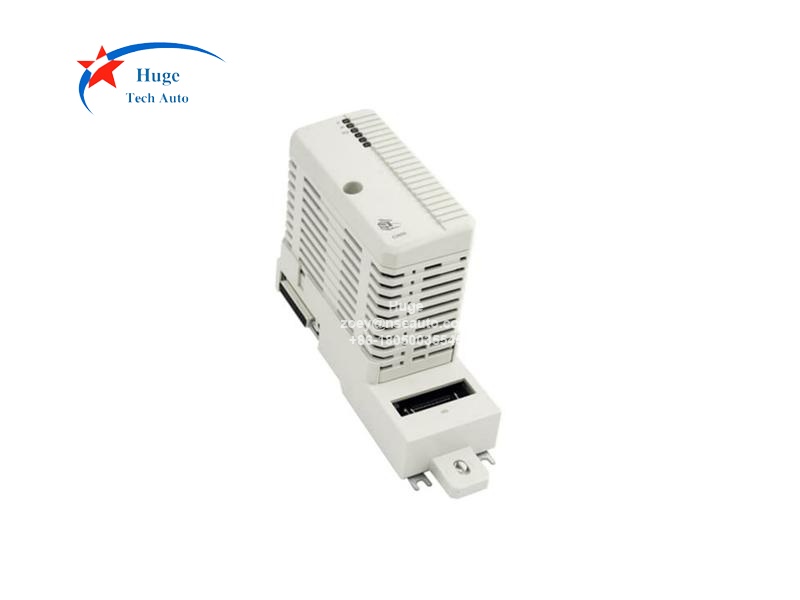

CI856K01 is ABB AC 800M S100 I/O Interface module. CI856K01 is installed on DIN rail.  CI856K01 is a Communication bridge between AC800M and S100 system.

S100 I/O communication is realized in AC 800M by communication interface CI856, which is connected to the CEX-Bus through a base plate. The CI856 expansion unit contains the CEX-Bus logic, S100 I/O-bus logics, CPU and a DC/DC converter that supplies appropriate voltages from the +24 V supply, via the CEX-Bus. The baseplate, TP856, houses a ribbon connector connecting to bus extender boards in S100 I/O racks and provides a simple DIN-rail mounting. Up to five S100 I/O racks can be connected to one CI856 where each I/O rack can hold up to 20 I/O boards. TP856 Baseplate has one 36-pin centerline miniature ribbon connector for connecting S100 I/O racks.

The CI856 is powered by the processor unit, via the CEX-Bus, and therefore does not require any additional external power source.

CI856K01 Package including:
• CI856, Communication Interface
• TP856, Baseplate, width = 60mm


Q&A:
1. What's the Capacity of CI856K01?
The capacity is Max 5 I/O racks with 20 I/O units each.
2. What's the dimensions of CI856K01?
W 59 x H 185 x D 127.5 mm (W 2.9 x H 7.3 x D 5.0 in)
3. What're the features and benefits?
• A key benefit with the CI856 interface is the possibility to reuse the majority of the existing I/O
installation, including terminations and field wiring in existing ABB Master and Advant OCS
installations.
• Single connection to S100 I/O units located in up to five I/O racks
• Code locking device to prevent mounting of incompatible components
• Hot swap functionality
