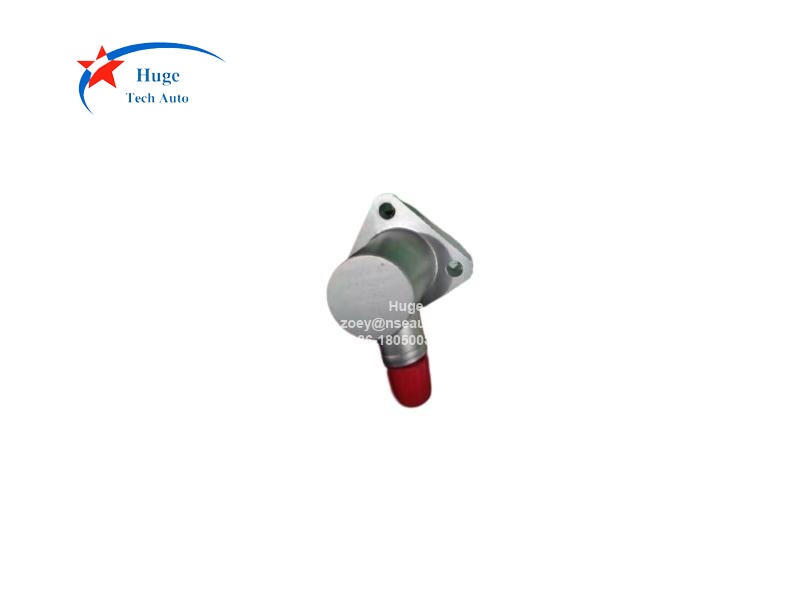

CP104 143-104-000-101 Piezoelectric Pressure Transducer

Piezoelectric Pressure Transducer CP104 143-104-000-101

Brand:
Ungrouped
Item NO.:
CP104 143-104-000-101
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
Switzerland
Shipping Port:
Xiamen
Lead Time：
In stock
Weight：
150g
Warranty:
1 year

Product Detail

Piezoelectric Pressure Transducer CP104 143-104-000-101
Description:

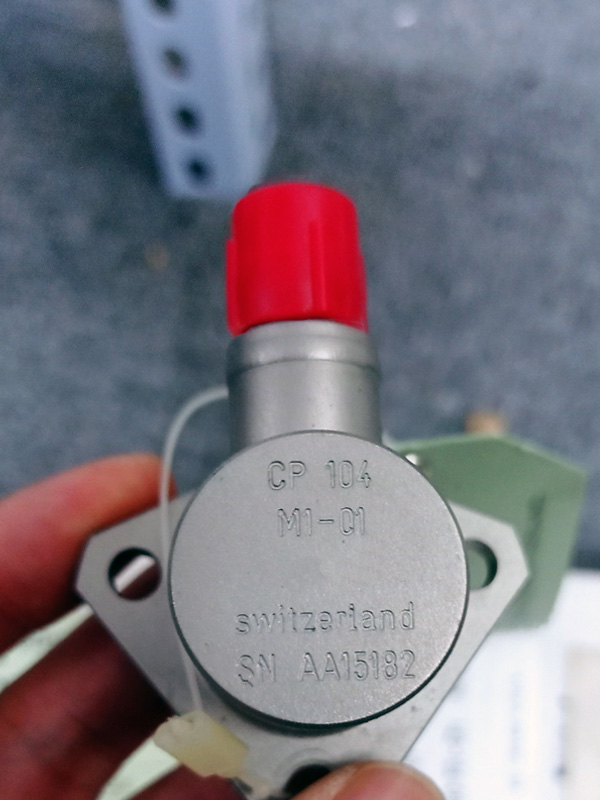

CP104 is designed with 3 mounting holes. It is for long-term monitoring or development testing. CP104 pressure transducer may be operated with either softline or hardline cables depending on the required temperature. It can be mounted on various parts of the machine where enclosed pressure can be measured (hydraulic block, combustion chamber, etc.).
CP104 package including：

Connectors，Cables and Electronics

SPECIFICATIONS:
Input power requirements: None
Signal transmission: 2-pole system insulated from casing, charge output
Signal processing: Charge converter

OPERATING
(at +23°C +5°C)
Sensitivity (at 2 Hz): 190 pC/bar nominal
Linearity: + 1% over dynamic measuring range
Acceleration sensitivity: ≤0.1 pC/g (≤ 0.0005 bar/g)
Resonant frequency: > 30 kHz
Frequency response: 2 to 6000 Hz +5% (lower cut-off frequency is determined bythe electronics used)
Internal insulation resist.: Min. 109 Ω (107 Ω at +300°C)
Capacitance: 85 pF nominal pole/pole, 30 pF nominal pole/ground
ENVIRONMENTAL
Temperature range : -196°C to +350°C
Shock acceleration : < 2000 g peak (half sine 1 ms) along sensitive axis
Corrosion, humidity : Inconel 600, hermetically welded
Radiations
•Gamma flux: 1011 erg/g no effect
CALIBRATION
Dynamic calibration at factory at 1 bar peak and 2 Hz (+23°C). No subsequent calibration necessary.

Q&A:
How to install CP104?
1- Prepare the part of the machine surface where the pressure transducer will be mounted.
The machined surface should have a parallelism of 0.01 mm and a surface roughness (Ra) not exceeding 1.6 μm.
2- Drill and tap the required number of holes, taking into account the necessary spacing between them.
3- Clean the mounting surface to remove any residual particles (metal shavings, dust)
4- If screws are necessary (CP 104 only) :
a. Prepare the required number of screws and spring lock washers (see data sheet for details).
b. Coat the screws with LOCTITE 241 adhesive, or equivalent.

What's the screw size for CP104 when mounting?
3 Allen screws M5, Fastening torque 10 Nm

What's the features of CP104?
High-temperature capability -196°C to +400°C
Acceleration compensated
Operational in primary circuit of ABWR
Proven reliability
Will meet IEEE 323-1974
Internal case insulation
VC2 type crystal element
Frequency response: 2 Hz to 6000 Hz
Sensitivity: 190 pC/bar
