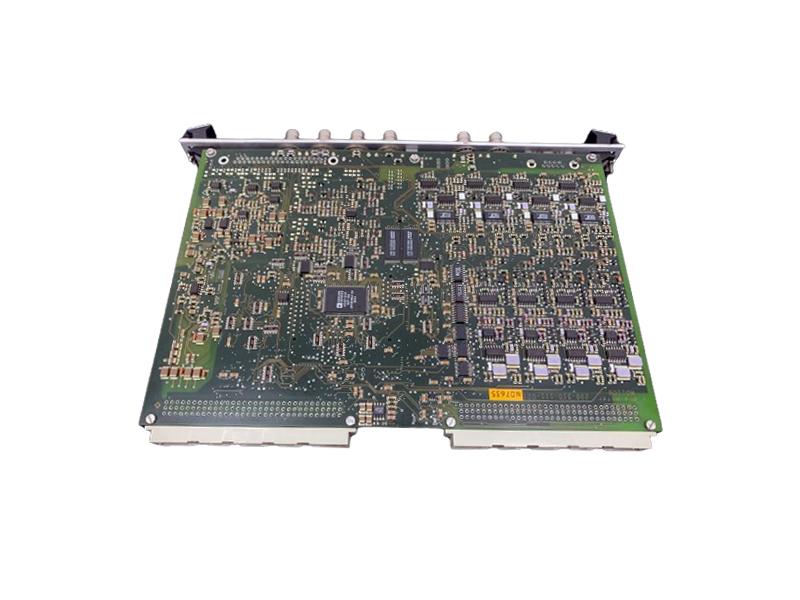

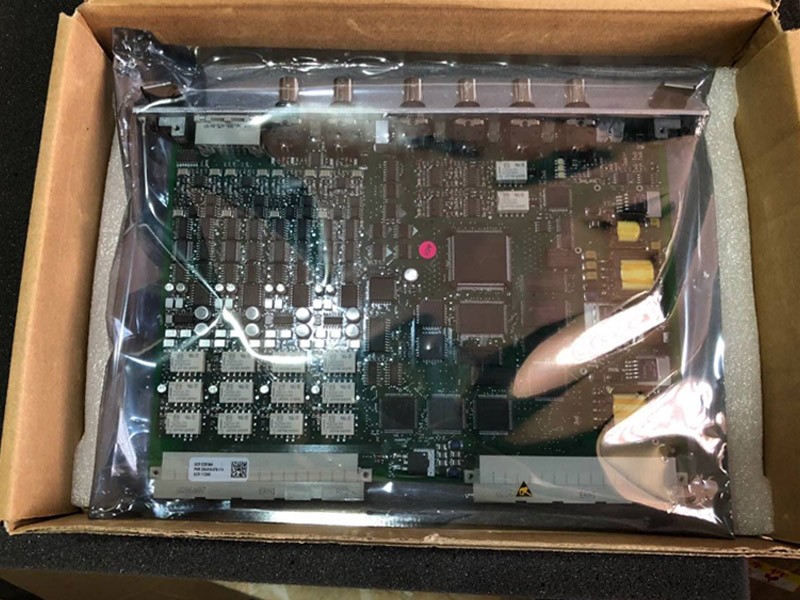

MPC4 200-510-071-113 Machinery Protection Card
Description：
The MPC 4 Machinery Protection Card is the central element in the machinery protection system. This very versatile card is capable of measuring and monitoring up to 4 dynamic signal inputs and up to 2 speed inputs simultaneously.
A variety of speed sensors may be connected (e.g. systems based on proximity probes, magnetic pulse pick-up sensors, systems providing TTL signals). Fractional tacho ratios are supported.
The MPC4 performs a self-test and diagnostic routine on power-up. In addition, the card’s built-in “OK System” continuously monitors the level of signals provided by the sensors and indicates any problem due to a broken transmission line, faulty transducer or conditioner.
