Home / DCS SYSTEM / Emerson / DVC6200HC Fisher FIELDVUE Digital Valve with Hart Communicating
DVC6200HC

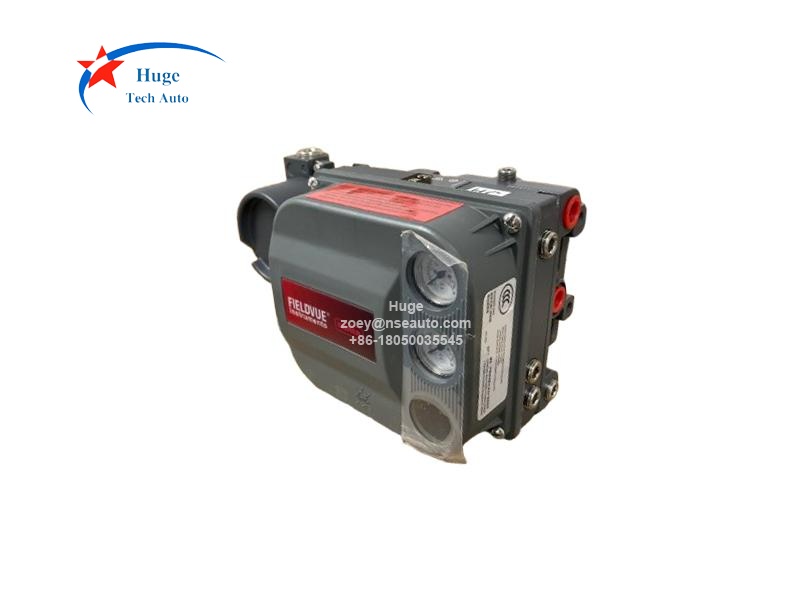

DVC6200HC Fisher FIELDVUE Digital Valve with Hart Communicating

Fisher FIELDVUE Digital Valve with Hart Communicating DVC6200HC

  • Brand:

    Emerson

  • Item NO.:

    DVC6200HC

  • Order(MOQ):

    1 PC

  • Payment:

    T/T

  • Market Price:

    999

  • Price Range:

    1 - 5

  • Product Origin:

    Singapore

  • Color:

    Depends on material

  • Shipping Port:

    XIAMEN

  • Lead Time：

    IN STOCK

  • Warranty:

    1 Year
Request A Quote
Product Detail

DVC6200HC Fisher FIELDVUE Digital Valve with Hart Communicating

Description:
DVC6200HC is a digital valve controller manufactured by Fisher. It is a communicating, microprocess- based current‐to‐pneumatic instrument. DVC6200HC can convert the input current signal to a pneumatic output pressure, as well as using the HART communications protocol to get the information critial to the process operation easily. You can get information from the process’s main component—the control valve itself—using a handheld communicator directly at the valve, at a field junction box, or via a personal computer or operator’s console in the control room.There is also an optional feature that supplies isolated circuitry for a valve position transmitter, which provides independent valve position feedback, or an integrated switch that can be configured to act as either a limit switch or an alarm switch.

Diagnostic information is available to aid you when troubleshooting. Input and output configuration parameters can be set, and the digital valve controller can be calibrated. There are 4 types of diagnostic lever, HC, AD, PD and ODV.

Using the HART protocol, information from the field can be integrated into control systems or be received on a single loop basis. The DVC6200 digital valve controller is designed to directly replace standard pneumatic and electro‐pneumatic valve mounted positioners.

Available Mounting
▪ Integral mounting to Fisher 657/667 or GX actuators
▪ Window mounting to Fisher rotary actuators
▪ Sliding‐stem linear applications
▪ Quarter‐turn rotary applications

Communication Protocol
▪ HART 5
▪ HART 7

Independent Linearity
Typical Value: ±0.50% of output span

Q&A:
1. What contains in the DVC6200 digital valve controller?
DVC6200 digital valve controller housing contains the travel sensor, terminal box, pneumatic input and output connections and a module base that may be easily replaced in the field without disconnecting field wiring or tubing.
2. What's the features of the DVC6200?
▪ High-performance non-contact, connectionless feedback eliminates physical feedback connections, thereby reducing component wear and extending service life.
▪ Fully encapsulated electronics provide resistance to vibration, high temperatures, and corrosive environments.
▪ The unit responds rapidly to significant step changes and accurately controls small setpoint variations.
▪ The DVC6200 is a HART communication device that can retrieve information from all devices in the loop. This flexibility lowers the risk of exposure to hazardous environments and simplifies monitoring of valves installed in hard-to-reach locations.
▪  Its modular design allows critical components to be replaced without disconnecting field wiring or pneumatic tubing.
▪  When integrated into a control system, it delivers substantial savings in both hardware and installation costs.
▪  Self-diagnostics provide ongoing evaluation of valve performance and operating condition.
▪  Digital communication enables convenient access to valve operating status.

Related items:
DVC6200
DVC6200HC
DVC6200PD
