AMS A6500-RC System Relay Card for AMS 6500 ATG
AMS A6500-RC System Relay Card for AMS 6500 ATG
Brand:
EmersonItem NO.:
EMERSON A6500-RCOrder(MOQ):
1 PCPayment:
T/TProduct Origin:
GermanyColor:
Depends on materialShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 yearEMERSON A6500-RC RELAY CARD
Description:

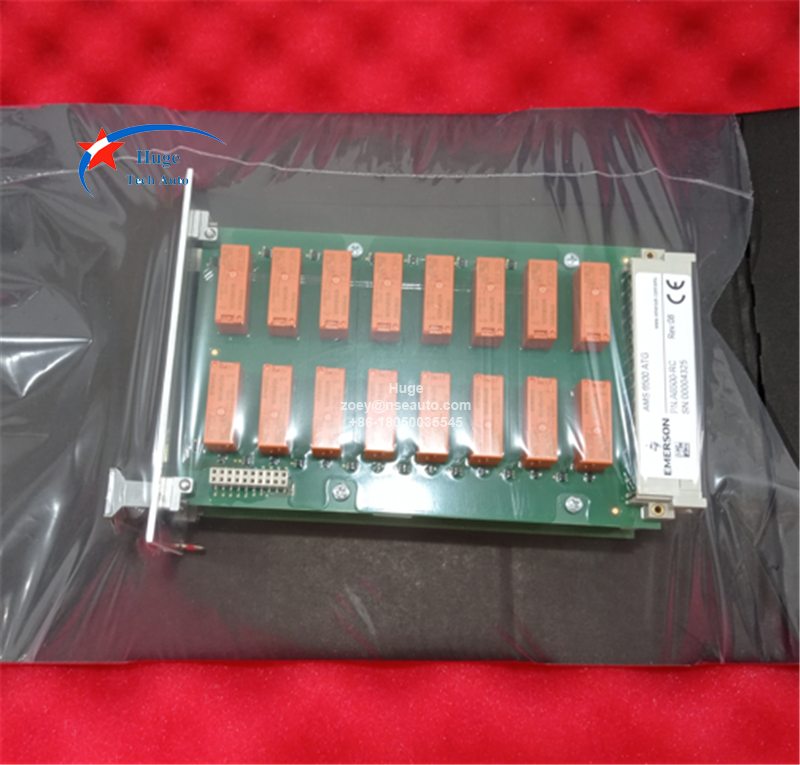

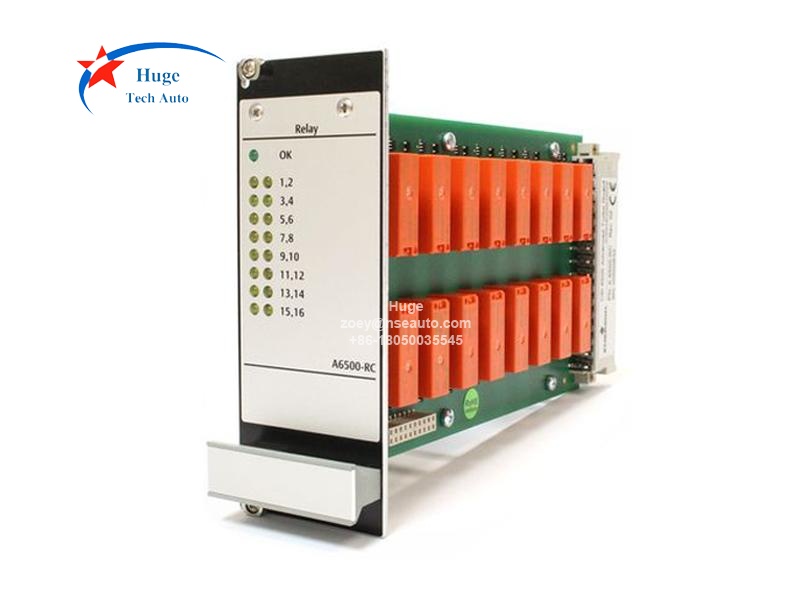

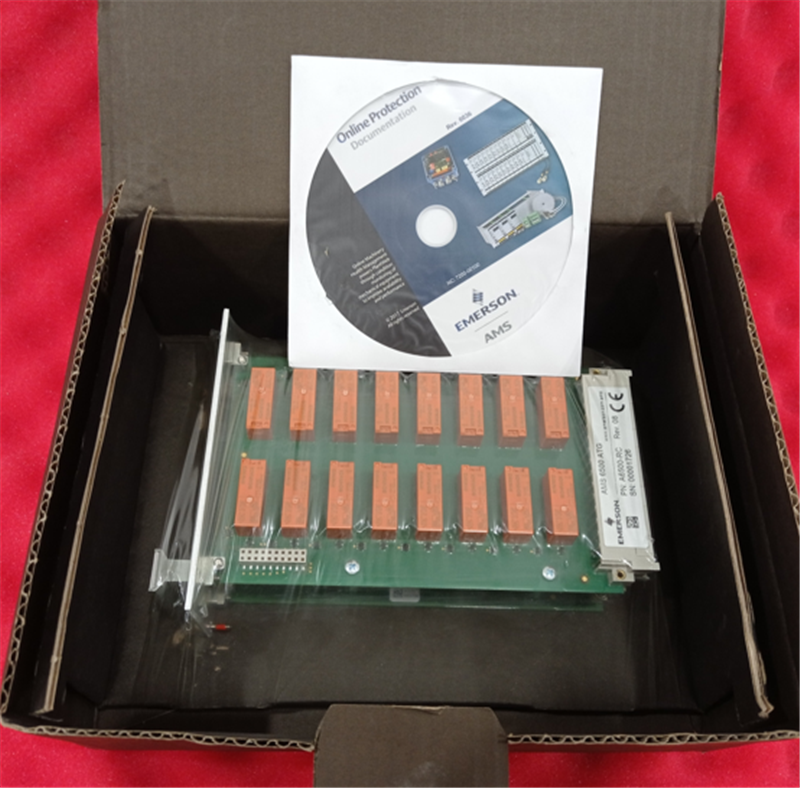

The 16-Channel Output Relay Module is designed for high reliability for the plant's most critical rotating machinery. This monitor is used together with the AMS 6500 ATG to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors and hydro turbo machinery.
|
Number of Inputs |
66 |
|
Logic low level |
0 V to 3 V |
|
Logic high level |
13 V to 32 V |
|
Rated Digital Input Current |
1 mA |
|
Rated Digital Input Power |
24 mW |
|
Maximum Voltage Capacity |
32 V DC / 48 V AC |
|
Rated Relay Output Current |
2 amps |
|
Rated Relay Output Power |
96 W |
|
Operating Temperature |
-20 to 70°C (-4 to 158°F) |
|
Storage Temperature/Transport |
-40 to 85°C (-40 to 185°F) |
|
Relative Humidity |
5-95%, non condensing |
|
Shock |
150 m/s² , 4,000 shocks per axis |
|
Vibration |
0.15 mm (10 to 55 Hz) , 20 m/s² (55 to 150 Hz) |
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
