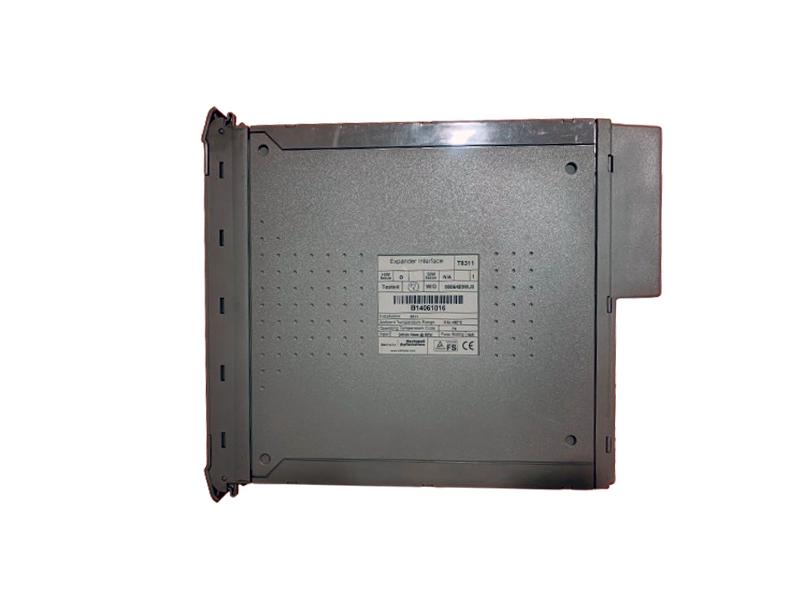

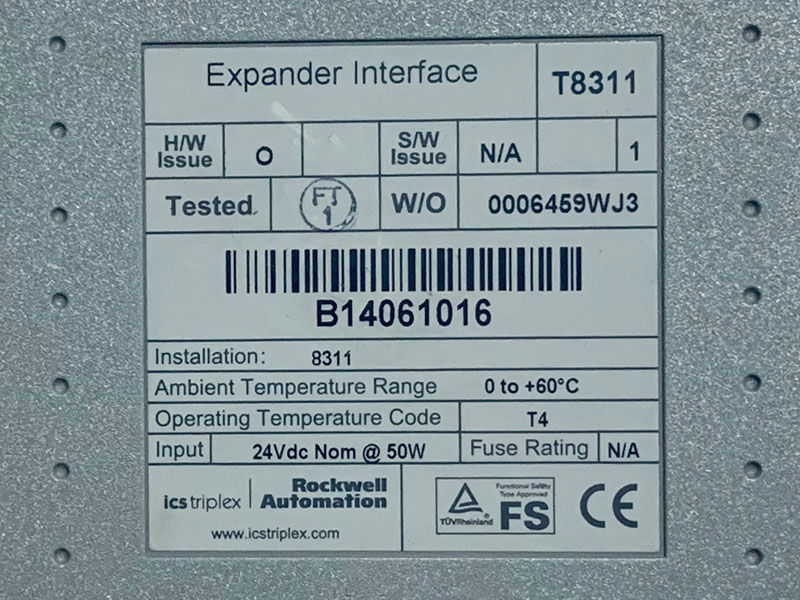

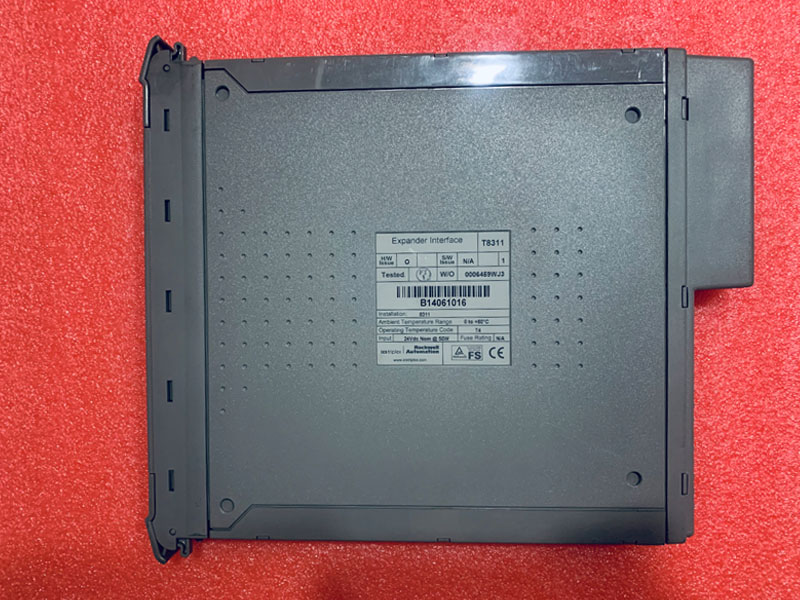

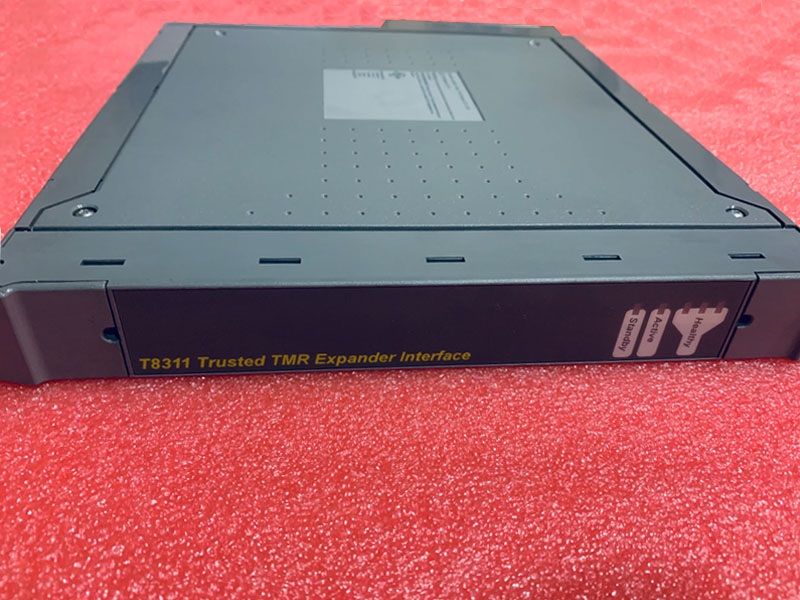

ICS trusted T8311 Expander Interface
Description:
The TrustedTM TMR Expander Interface module resides in the TrustedTM Controller Chassis and provides the ‘master’ interface between the Inter-Module Bus (IMB) in the Controller Chassis and the Expander Bus. The Expander Bus allows multiple chassis systems to be implemented using UTP cable connections whilst maintaining the fault tolerant, high bandwidth IMB capabilities.
The module provides fault containment for the Expander Bus, the module itself and the IMB in the Controller Chassis, ensuring that the effects of these potential faults are localised and system availability maximised. The module is fault tolerant with HIFT TMR architecture. Comprehensive diagnostics, monitoring and testing provide rapid fault identification. Hot standby and module spare slot configurations are supported, allowing automatic and manual repair strategies.
The Expander Interface requires no configuration to the module itself.
Each module fitted in a TrustedTM system requires an entry in the I/O Connection table, specifying its chassis and slot number. The I/O Complex Equipment Definition allows control of the module’s functions, and provides information on its status. For information on editing the I/O Connection table, refer to PD-8082B.
Power Requirements 20 to 32V
dc Maximum Load 40W
Heat Dissipation 40W
Use with Chassis T8300
Module Clocks 50MHz
Expander Bus Data Rate 250Mbps
I/O Interface Expander Chassis backplane
BENEFITS:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
