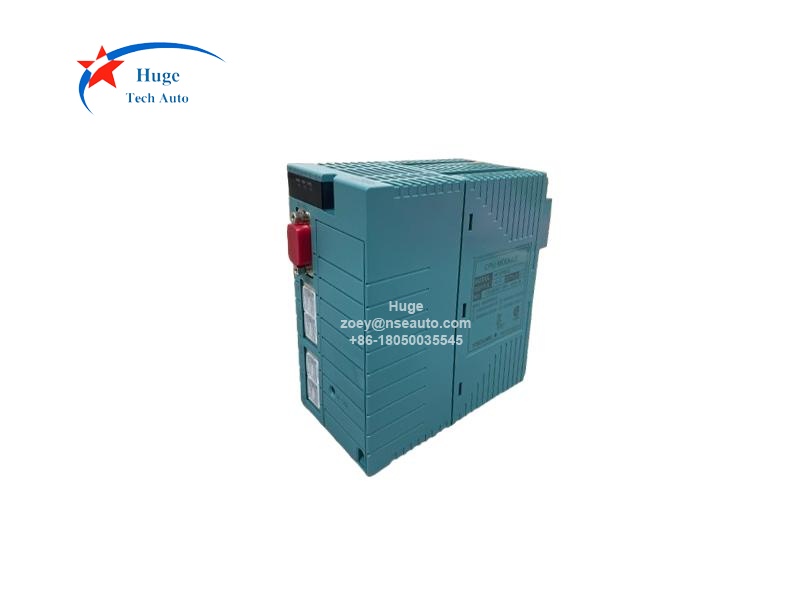

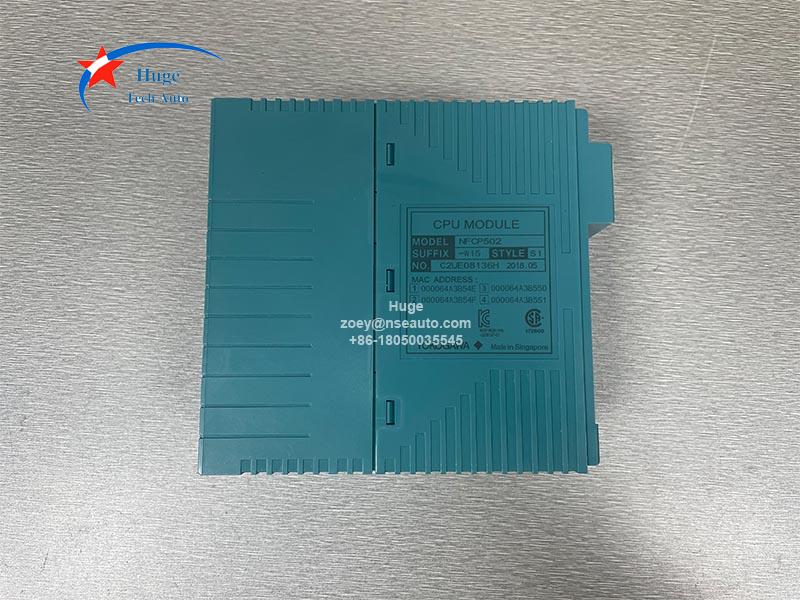

Yokogawa NFCP502-W15 CPU module for FCN with 4 Ethernet ports
Description:
NFCP502-W15 is designed as Yokogawa FCN Autonomous Controller CPU module. NFCP502-W15 is mounted in each control unit, or two for a duplexed CPU configuration. The CPU module runs a real-time operating system, supports programming languages compliant with the IEC 61131-3 international standard, and serves as a Duolet virtual machine.

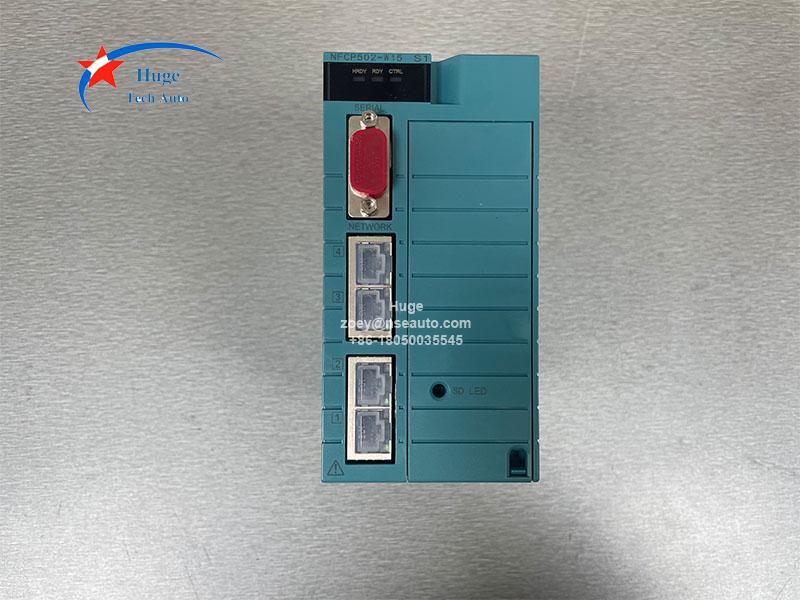

NFCP502-W15 is extended functions, with extended temperature range option, basic type with no explosion preotection. There are 4 Ethermet prot and 1 SD led can be seen in the front panel.
Ordering informatmion:
Features:
• High-performance, high-reliability modular controller
• Memory with ECC
• Low heat dissipation eliminates the need for a fan
• A wealth of RAS features — CPU self-diagnostics, temperature monitoring, I/O diagnostics, and more
• The CPU, power supply module, internal communication bus on backboard (SB bus), and control network (Ethernet
port 1 and 2) can all be duplexed, and all modules are hot-swappable. Use a couple of the CPU module of the same
type to make the CPU module duplex configuration.
• Can function as link active schedulers (LASs) for low-speed voltage mode (H1) FOUNDATION Fieldbus segments,
and link up FOUNDATION Fieldbus-enabled field devices.
Q&A:
1. What's the configuration of NFCP502-W15?
An FCN-500 consists of the following:
• Base module
• Power supply module
• CPU module
• SB bus repeat module (extending the SB bus to connect an extension unit)
• I/O modules
2. What's the power supply?
Supply voltage: 5 V DC ±5%
Current consumption: Max. 1700 mA
