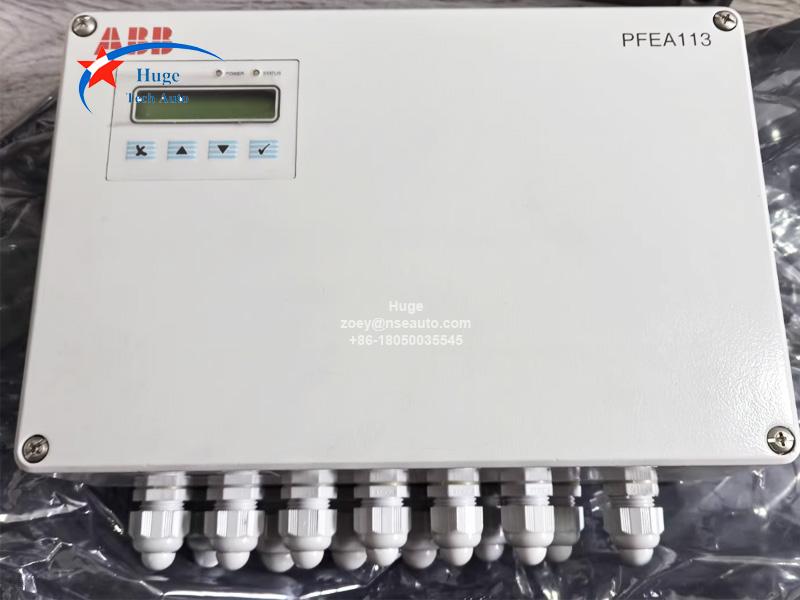

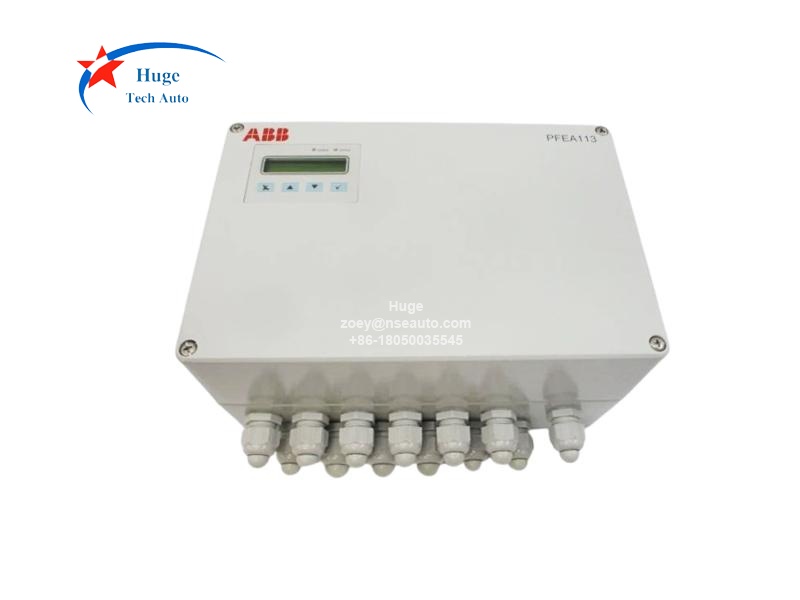

ABB Tension Electronics PFEA113-65 3BSE050092R65
Description:
PFEA113-65 is designed as ABB Web Tension Measurement Tension Electronics. PFEA113-65 supply up to four load cells and have six configurable analog out-puts for control and/or monitoring of web tension.  There is a digital display and configuration keys on the enclosure lid. The display can show the sum, difference of individual load cell signals.

PFEA113-65 lets you view not just the total sum signal, but also the individual readings for A and B, along with their difference — both on the built-in display and through the output signals themselves. These output signals can also be transmitted via PROFIBUS‑DP. Another practical function is the ability to adjust the gain setting for two separate web paths. In addition, the unit features a self‑diagnostic system and four digital outputs that can be configured for alarm signaling and level detection purposes.

The main voltage of PFEA113-65 is 24 V DC (18 to 36 V), 100 (–15 %) to 240 (+10 %) V AC. Enough working space is needed in front of the enclosure to make sure the PFEA113-65 lid can be opened.
