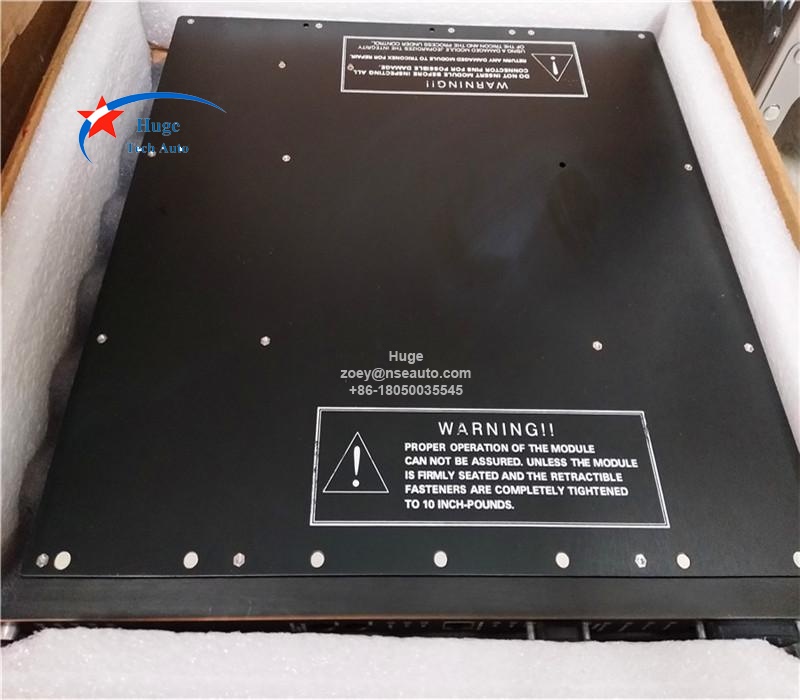

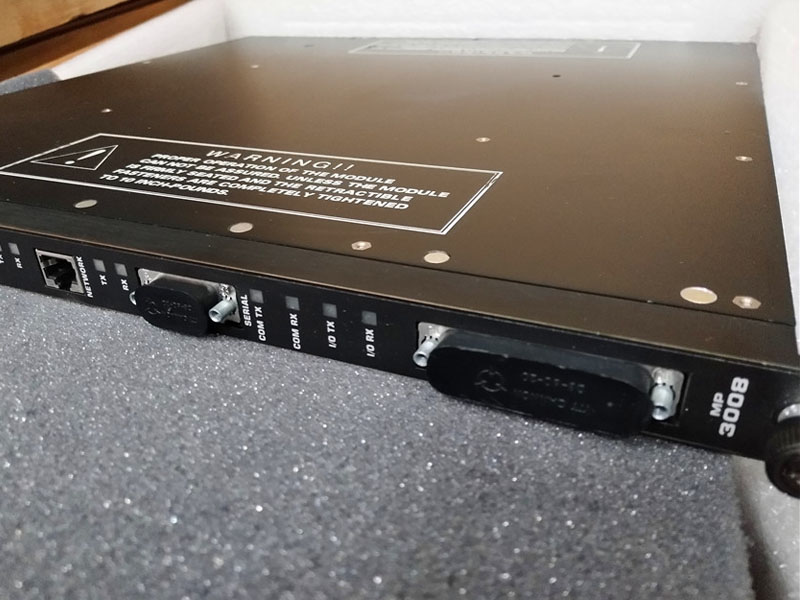

Schneider Triconex 3008 Main Processor Module
Description:
3008 is designed as Tricon Main Processors module. 3008 is available for Tricon v9.6 and later systems.
3008 provides 16 megabytes of DRAM, which is used for the control program, sequence-of-events data, I/O data, diagnostics and communication buffers.

Three MPs must be installed in the main chassis of every Tricon system.
Each MP independently communicates with its I/O subsystem and executes the user-written control program.

3008 can provide direct TriStation and Modbus communication. It provides:
• One Tristation (Ethernet) port for downloading an application to the controller and uploading diagnostic information.
• One Modbus RS-232/RS-485 serial port which acts as a slave while an external host computer is the master. Typically, a distributed control system (DCS) monitors—and optionally updates—the controller data directly though an Main Processor Module.
Extensive diagnostics validate the health of each MP, I/O module and communication channel. Transient faults are recorded and masked by the hardware majority-voting circuit.
Persistent faults are diagnosed and the errant module is hot-replaced. MP diagnostics perform these tasks:
• Verify fixed-program memory and static RAM
• Test all basic processor and floatingpoint instructions and operating modes
• Validate user memory by means of the TriBus hardware-voting circuitry
• Verify the shared memory interface with each I/O communication processor and channel
• Verify handshake and interrupt signals between the CPU, each I/O communication processor and channel
• Check each I/O communication processor and channel microprocessor, ROM, shared memory access and loopback of RS-
485 transceivers
• Verify the TriClock and TriBus interfaces

Specifications:
Microprocessor: Motorola MPC860, 32 bit, 50 MHz
Memory：• 16 MB DRAM (non-battery backed-up)
• 32 KB SRAM, battery backed-up
• 6 MB Flash PROM
Tribus Communication Rate： • 25 megabits per second
• 32-bit CRC protected
• 32-bit DMA, fully isolated
I/O Bus and Communication Bus Processors： • Motorola MPC860, 32 bit, 50 MHz
