Woodward 5464-213 Netcon Serial I/o Card

Brand:
WOODWARD
Item NO.:
Woodward 5464-213
Order(MOQ):
1
Payment:
T/T
Market Price:
9
Price Range:
1 - 5
Product Origin:
USA
Color:
Depends on material
Shipping Port:
XIAMEN
Lead Time：
IN STOCK

Product Detail

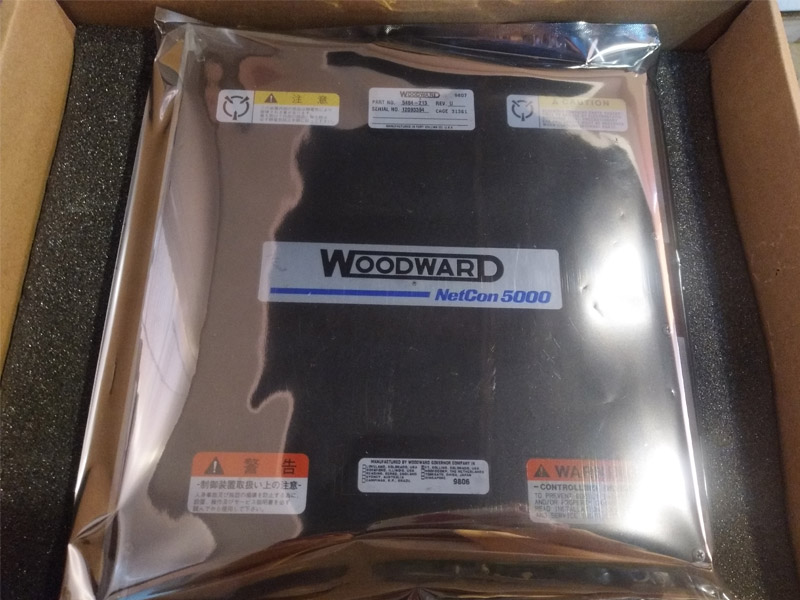

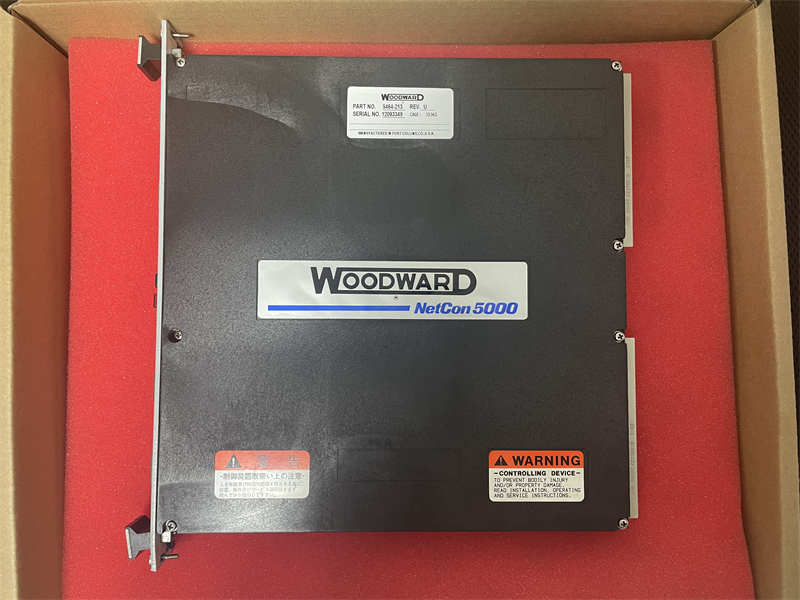

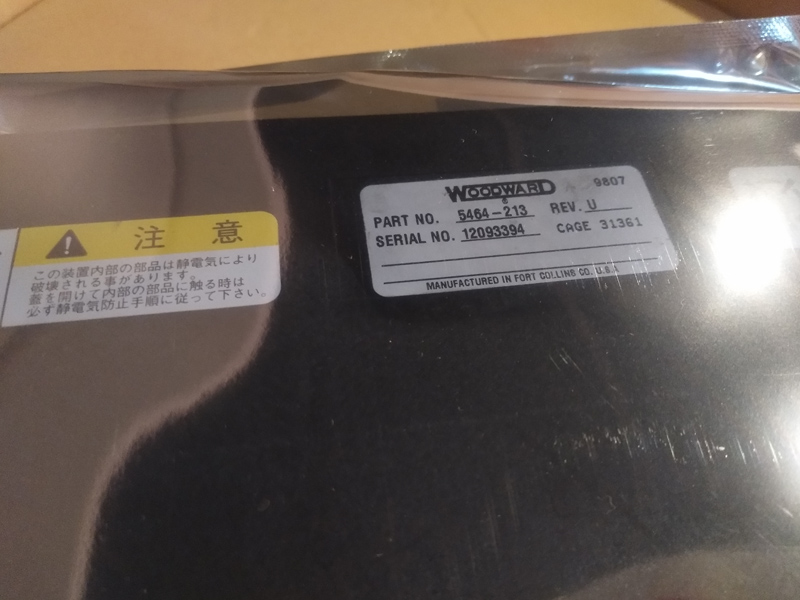

Woodward 5464-213 Netcon Serial I/o Card
Description:
A Smart I/O module has its own on-board microcontrollers. The modules described in this chapter are Smart I/O modules. During initialization of a smart module, the module's microcontroller turns the LED off after power-on self-tests have passed and the CPU has initialized the module. The LED is illuminated to indicate an I/O fault.
The CPU also tells this module in which rate group each channel is to run, as well as any special information (such as the type of thermocouple in the case of a thermocouple module). At run time, the CPU then periodically broadcasts a "key" to all I/O cards, telling them which rate groups are to be updated at that time.
Through this initialization/key broadcast system, each I/O module handles its own rate-group scheduling with minimal CPU intervention. These smart I/O modules also have on-card on-line fault detection and automatic calibration/compensation. Each input channel has its own precision voltage reference. Once per minute, while not reading inputs, the on-board microcontroller reads this reference. The microcontroller then uses this data read from the voltage reference for both fault detection and automatic temperature compensation/calibration.
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
