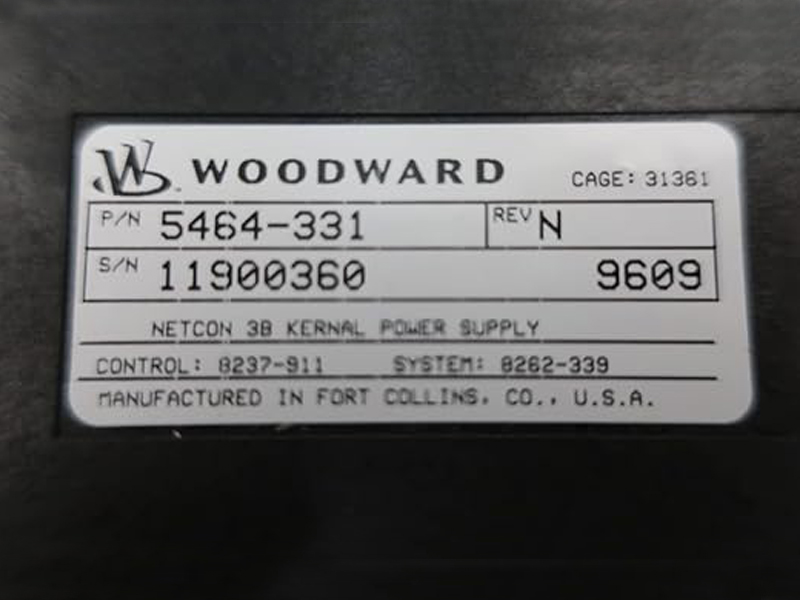

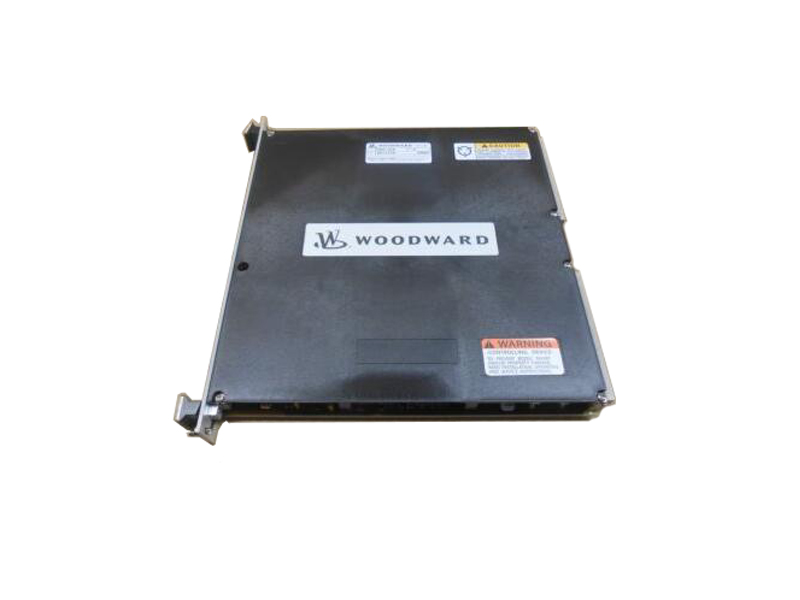

WOODWARD 5464-331 Netcon 3B Kernal Power Supply
Description:
Each kernel section includes a kernel power supply, a CPU, an analog combo I/O module, and a discreteI/O module. Optionally an integrating actuator module (Position Controller) and/or a High Density AnalogI/O module may be included. Slot-to-slot logic and power connections are made through an etched-circuitmotherboard located on the back of the chassis. The motherboard and modules are all VERSA moduleEurocard (VME) type. I/O connections are made through cables from the front of the modules totermination modules in the cabinet. See Appendix A for an overview of the main chassis, controlmodules, and termination modules.From a module connector standpoint, any I/O module can be installed in any of the chassis slotsdesignated for I/O modules. However, when the application software is designed, each module isassigned to a specific slot, thus the software expects each specific I/O module to always be in itsdesignated slot.The 5009FT control chassis is cooled by forced air. In order not to starve modules of air flow, either amodule or a blank module must be installed and secured in each slot. Cooling fans are located on the topof the main chassis; with one fan per 6-slot card rack. The power supply chassis contains two coolingfans: one on top and one on the bottom of the chassis. These fans run any time the 5009FT chassis ispowered up.
Benefits:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
