Woodward 9907-164 505 Digital Turbine Controller
Description:
The 505 control is packaged in an industrial hardened enclosure designed to be mounted within a system control panel located in a plant control room or next to the turbine. The control’s front panel serves as both a programming station and operator control panel (OCP).
This user-friendly front panel allows engineers to access and program the unit to the specific plant’s requirements, and plant operators to easily start/stop the turbine and enable/disable any control mode. Password security is used to protect all unit program mode settings. The controller’s 8.4-inch (21 cm) graphical display allows operators to view actual and setpoint values from the same screen, simplifying turbine operation.

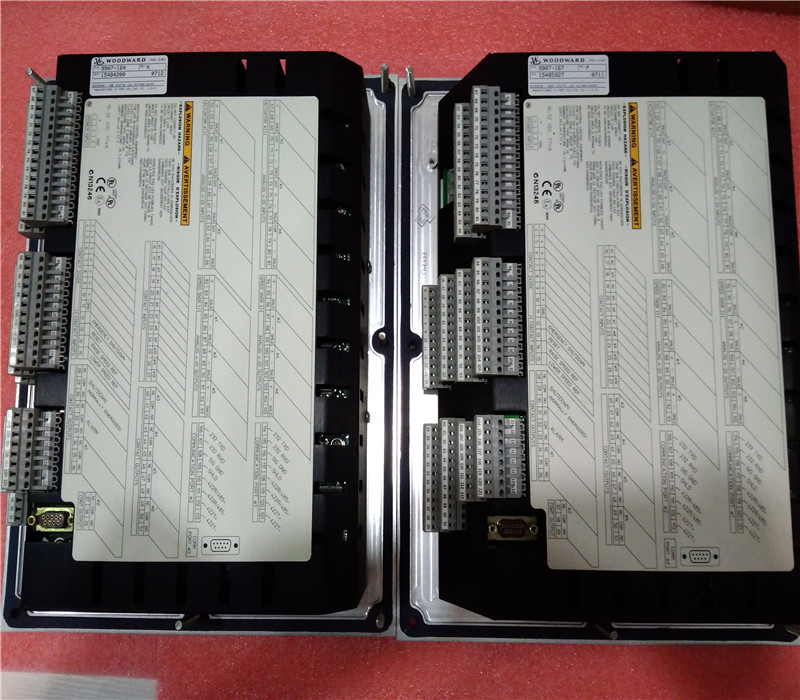

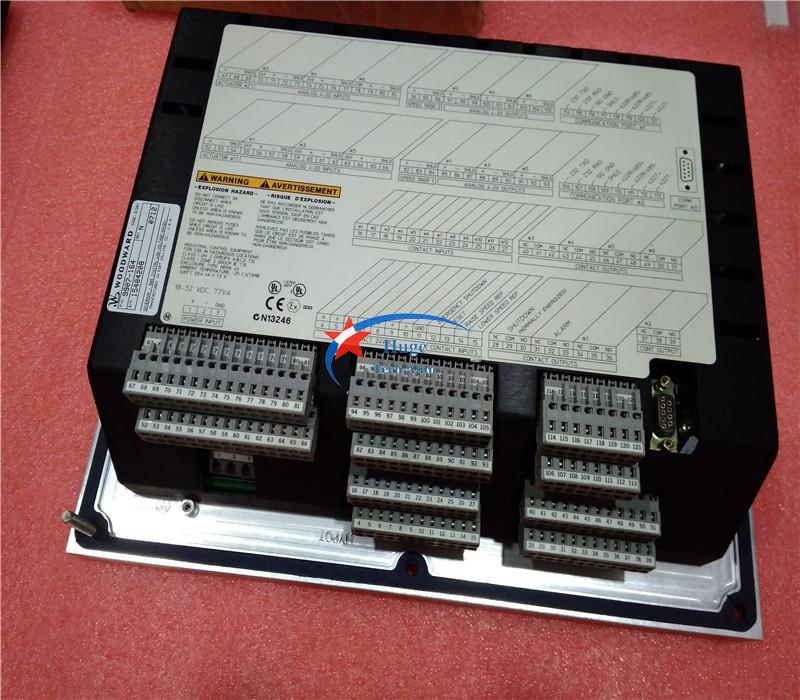

Turbine interface input and output wiring access is located on the controller’s lower back panel. Un-pluggable terminal blocks allow for easy system installation, troubleshooting, and replacement.
Designed for steam turbine control, the 505 control includes four PID controllers (Speed, Cascade, Aux-1, Aux-2), multiple start-up routines (manual, semi-auto, automatic, remote control), and multiple protection functions (overspeed, critical speed range, max power, etc.) which can be configured by a user depending on the specific turbine application’s requirements. Users can configure the 505’s different PID controllers, start routines, and protection levels themselves without the need for a special control engineer. Once configured, the 505 performs a configuration check routine to
ensure that the programmer did not make any basic configuration mistakes. 9907-164 is new and original package in stock with one year warranty.
BENEFITS:
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:Paypal, T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
Welcome to xiamen for travel,by the way,welcome to our company. Our company has many products in stock,which are immediately available.The warranty is 1 years which apply to all the new products.If you purchase one more parts from us,we can make a discount to you. If you have any question pls do not hesitate to contact us.We can supply all kind of the automaiton parts,if you want to purchase parts pls send the parts to me.
