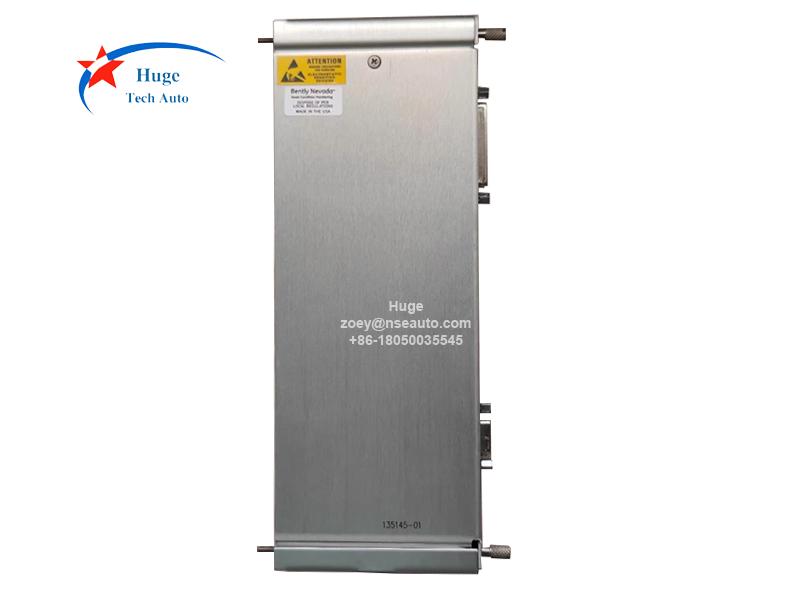

135145-01 Bently Nevada 3500/45 Position I/O Module with External Terminations

Bently Nevada 3500/45 Position I/O Module with External Terminations 135145-01

  • Brand:

    Bently Nevada TSI
  • Item NO.:

    3500/45 135145-01
  • Order(MOQ):

    1 PC
  • Payment:

    T/T
  • Product Origin:

    USA
  • Shipping Port:

    XIAMEN
  • Lead Time:

    IN STOCK
  • Warranty:

    1 Year
Product Detail

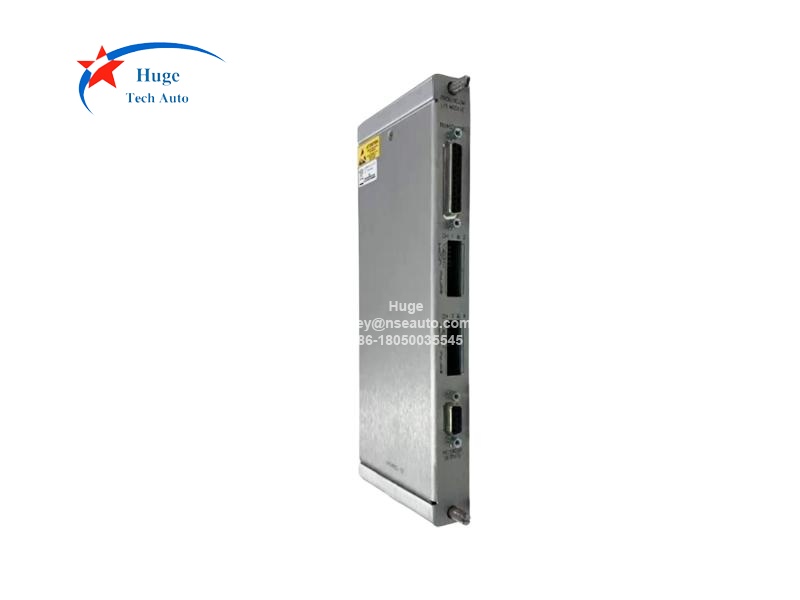

Bently Nevada 3500/45 Position I/O Module with External Terminations 135145-01
Description:
135145-01 is designed as one of 3500/45 Position Monitor I/O Module. It is a  I/O Module with External Terminations for use with Proximitors, RPTs or DC LVDTs. 135145-01 is one full-height rear slot in the 3500 rack, it can worked in harsh site.

This module provides reliable external wiring connections, simplifies field installation and maintenance, and works with dedicated external termination blocks for robust signal transmission. It integrates stable transducer power supplies and matches the 3500/45’s measurement functions, including axial thrust position, differential expansion, case expansion, and valve position monitoring.

Features:
▪ Designed as an external termination Position I/O module for the 3500/45 Position Monitor.
▪ Supports proximitors, Rotary Position Transducers (RPTs), and DC LVDT transducers.
▪  Installs in one full-height rear slot of the 3500 rack, compact and lightweight at 0.20 kg.
▪  Provides stable transducer power and signal conditioning for high-accuracy position monitoring.
▪  Works with dedicated external termination blocks for easy field wiring and maintenance.
▪  Compliant with industrial EMC, safety, and hazardous area standards (ATEX/IECEx, CSA).
▪  Operates reliably in a -30°C to +65°C industrial temperature range.
▪  Enables key measurements: thrust position, differential expansion, case expansion, and valve position.

Ordering Information:
3500/45-AA-BB
A: I/O Module Type
01  Position I/O Module with Internal Terminations (Proximitor, RPT, DC LVDT)
02  Position I/O Module with External Terminations (Proximitor, RPT, DC LVDT)
03  Discrete TMR Position I/O Module with External Terminations (Proximitor or DC LVDT)
04  Bussed TMR Position I/O Module with External Terminations (Proximitor)
05  AC LVDT Position I/O Module with Internal Terminations
06  AC LVDT Position I/O Module with External Terminations
07  Rotary Potentiometer Position I/O Module with Internal Terminations
08  Rotary Potentiometer Position I/O Module with External Terminations
B: Agency Approval
00  None
01  CSA / NRTL / C (Class 1, Division 2)
02  ATEX / IECEx / CSA (Class 1, Zone 2)

Spares
176449-04  3500/45 Position Monitor
135137-01  Position I/O Module with Internal Terminations for use with Proximitors, RPTs or DC LVDTs
135145-01  Position I/O Module with External Terminations for use with Proximitors, RPTs or DC LVDTs
139554-01  AC LVDT Position I/O Module with Internal Terminations for use with AC LVDTs
139567-01  AC LVDT Position I/O Module with External Terminations for use with AC LVDTs
139978-01  Rotary Potentiometer Position I/O Module with Internal Terminations for use with Rotary Potentiometers
139991-01  Rotary Potentiometer Position I/O Module with External Terminations for use with Rotary Potentiometers
135145-01
