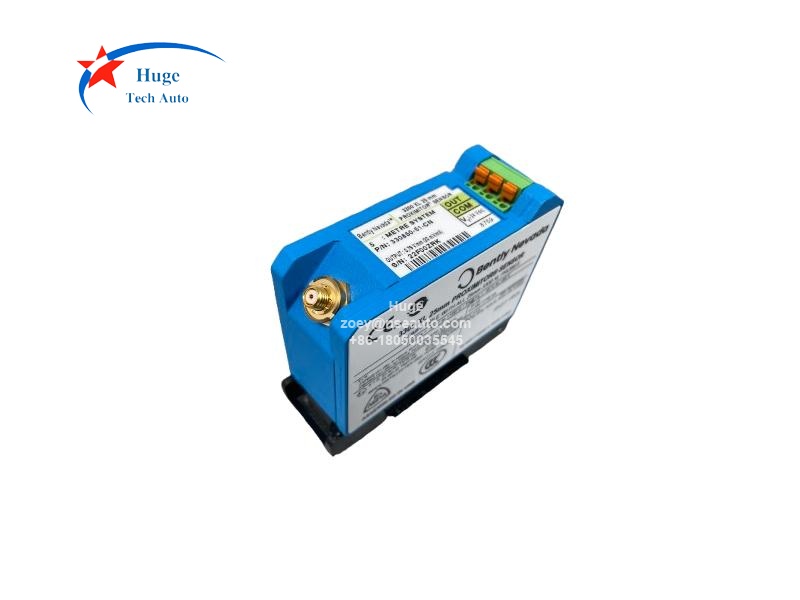

Bently Nevada 330850-51-05 3300 XL 25 mm Proximitor Sensor
Description:
330850-51-05 is an essential compoment in the Bently Nevada 3300 XL Proximity Transducer System. Act as a Proximitor Sensor, 330850-51-05 is working in 5.0 meters system length with DIN mount.

Applications:
Situable for using in steam turbine TSI (Turbine Supervisory Instrumentation) systems.

Major Features:
▪ Easy and fast to install,  reduce the cost
▪ Highly immune to radio frequency interference
▪ Satisfies European CE mark approvals
▪ No special installation tools required
▪ Enables quicker and more reliable field wiring

Specifications:
▪  Input: Accepts one noncontacting 3300 XL 25 mm Proximity Probe and Extension Cable
▪  Power: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.
▪  Supply Sensitivity:  Less than 2 mV change in output voltage per volt change in input voltage
▪  Output resistance: 50 W
▪  Material: A380 aluminum
▪  Operating Temperature: -51°C to +100°C (-60°F to +212°F)
▪  Storage Temperature: -51°C to +105°C (-60°F to +221°F)

Ordering Information:
330850-AA-BB
