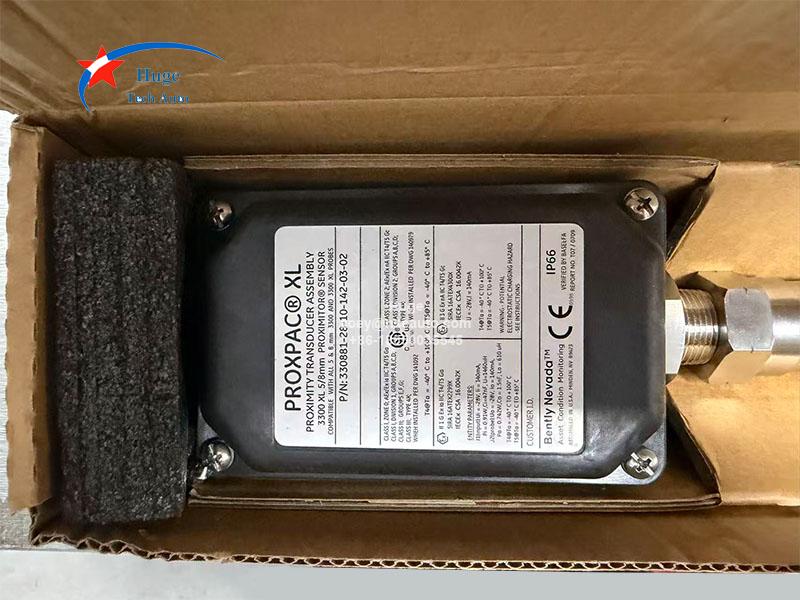

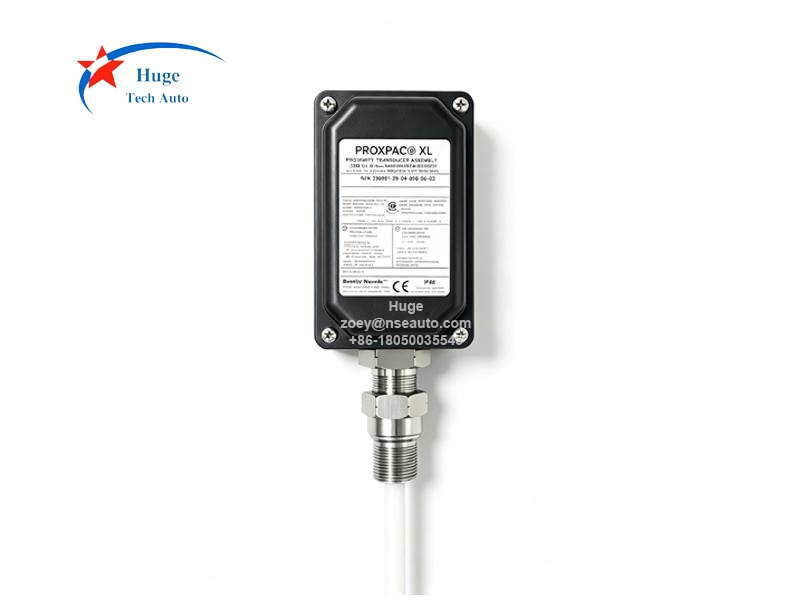

Bently Nevada PROXPAC XL Proximity Transducer in Metric 330881-28-10-142-03-02
Bently Nevada PROXPAC XL Proximity Transducer in Metric 330881-28-10-142-03-02
Brand:
Bently Nevada TSIItem NO.:
330881-28-10-142-03-02Order(MOQ):
1 PCPayment:
T/TMarket Price:
999Price Range:
1 - 5Product Origin:
USAColor:
Depends on materialShipping Port:
XIAMENLead Time：
IN STOCKWarranty:
1 Year
330881-28-10-142-03-02 Bently Nevada PROXPAC XL Proximity Transducer in Metric
Description:
330881-28-10-142-03-02 is manufactured by Bently Nevada, it is designed as a PROXPAC XL Proximity Transducer. 330881-28-10-142-03-02 integrates a certified 3300 XL 8 mm proximity probe and built-in proximitor sensor, eliminating extension cables between probe and signal converter for direct field wiring to vibration monitors. It features glass-reinforced PPS housing with full hazardous area multi-approvals for industrial shaft vibration and position measurement.
Key Features:
▪ Made of polyphenylene sulfide
▪ Excellent corrosion resistance
▪ High-strength housing
▪ Dissipate electrostatic charges
▪ All-in-one integrated design
▪ Combines the advantages of 31000 series housings and 3300 XL proximity probes
▪ Eliminates the requirement for extension cables
▪ low interchangeability error within ±5%
▪ Suitable for hazardous area
▪ Wide temperature range
Applications:
▪ Radial vibration monitoring for steam/gas turbines
▪ Axial thrust position measurement
▪ Vibration monitoring for offshore and marine rotating equipment
▪ Industrial pumps, fans and generators
Ordering Inforamtion:
330881-AA-BB-CCC-DD-EE
|
A: Probe and Approvals Option |
|
|
0 0 |
No probe; Proximitor sensor without approvals |
|
0 1 |
No probe; Proximitor sensor with Multiple Approvals |
|
1 6 |
3300 XL 8 mm probe without approvals |
|
2 8 |
3300 XL 8 mm probe with Multiple Approvals |
|
B: Standoff Adapter Option (B Dimension) |
|
|
|
Order in increments of 10 mm. Minimum length: 40 mm Maximum length: 200 mm |
|
0 0 |
No standoff adapter |
|
0 4 |
40 mm |
|
2 0 |
200 mm |
|
C: Probe Penetration Option (C Dimension) |
|
|
|
Order in increments of 1 mm. Minimum length: 25 mm Maximum length: 760 mm |
|
0 0 0 |
No probe sleeve |
|
0 5 0 |
50 mm |
|
7 6 0 |
760 mm |
|
D: Fittings Option (supplied as a kit) |
|
|
0 0 |
No fittings; two plugs and two washers |
|
0 1 |
One M25 fitting, two plugs |
|
0 2 |
Two M25 fittings, one plug |
|
0 3 |
One M20 fitting, two plugs |
|
0 5 |
One PG21 to PG11 reducer, two plugs |
|
0 6 |
One 3/4-14 NPT fitting, one 3/414 NPT to 1/2-14 NPT SST reducer and two plugs |
|
0 7 |
One PG21 x M20 fitting, two plugs |
|
0 8 |
Two PG21 x M20 fittings, one plug |
|
E: Mounting Thread Option |
|
|
0 0 |
No outer sleeve assembly |
|
0 1 |
M24 X 3 |
|
0 2 |
3/4-14 NPT (required if ordering Standoff Adapter Option) |
