Bently Nevada 3300 XL NSv Proximitor Sensor 330980-50-00
Description:

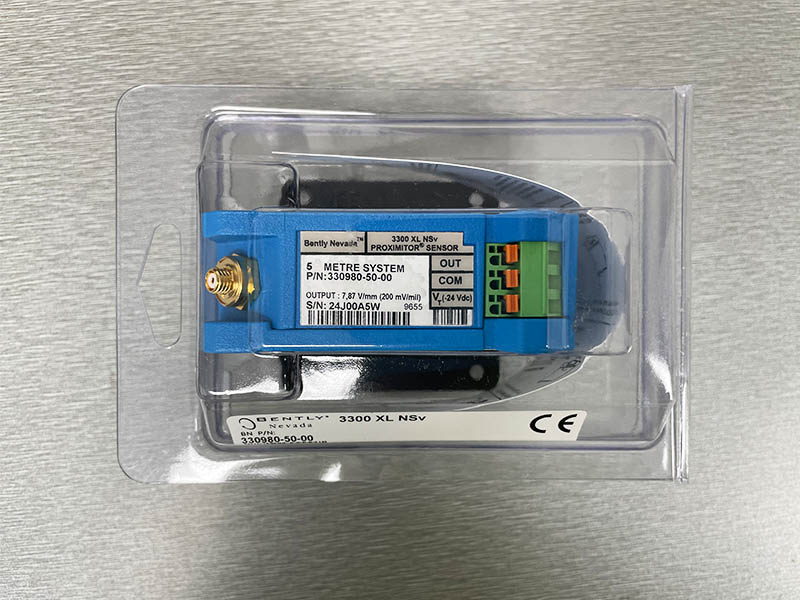

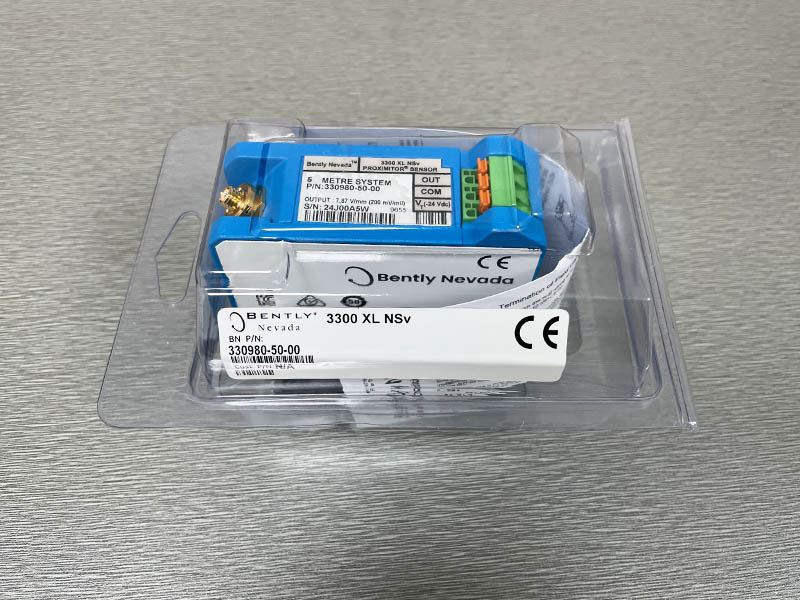

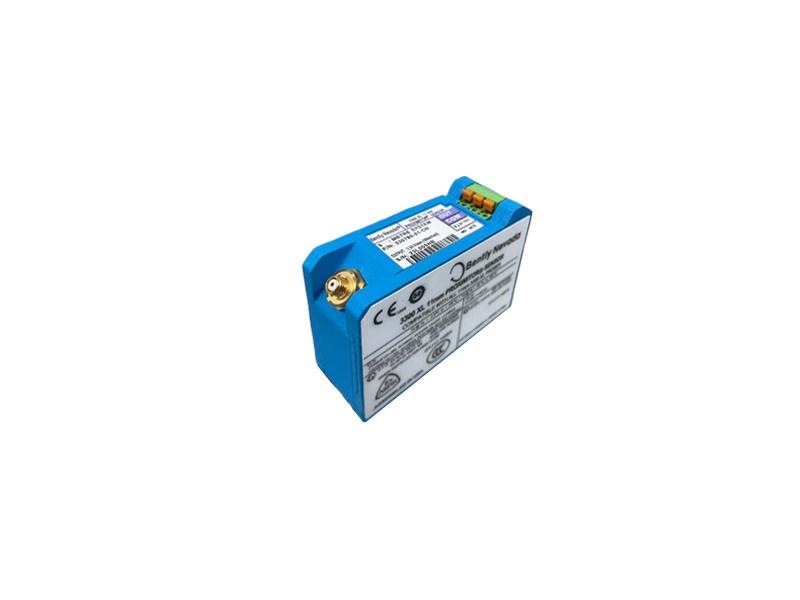

330980-50-00 is belong to Bently Nevada 3300 XL NSV Proximity Transducer system. 330980-50-00 is the NSV Proximitor Sensor. 330980-50-00 with the 5 meter system length, the panel mount.
The 3300 XL NSv Proximitor Sensor has similar features to those found in the 3300 XL 8 mm Proximitor Sensor. Its thin design allows the user to mount it in either a high-density DIN-rail installation or a more traditional panel mount configuration. Improved RFI/EMI immunity allows the 3300 XL NSv Proximitor Sensor to achieve European CE mark approvals without any special mounting considerations. This RFI immunity also prevents nearby high frequency radio signals from adversely affecting the transducer system. SpringLoc terminal strips on the Proximitor Sensor require no special installation tools and facilitate faster, highly robust field wiring connections.

Ordering Information:
3300 XL NSv Proximitor Sensor
330980-AA-BB
A:Total Length and Mounting Option
50  5.0 metre (16.4 feet) system length, panel mount
51  5.0 metre (16.4 feet) system length, DIN mount
52  5.0 metre (16.4 feet) system length, no mounting hardware
70  7.0 metres (23.0 feet) system length, panel mount
71  7.0 metres (23.0 feet) system length, DIN mount
72  7.0 metres (23.0 feet) system length, no mounting hardware1
B:Agency Approval Option
00  Not required
05  Multiple approvals

Q&A:
1. Where can be 330980-50-00 used for?
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
• Radial vibration and radial position measurements
• Axial (thrust) position measurements
• Tachometer and zero speed measurements
• Phase reference (Keyphasor signals)
2. What's the difference between 330980-50-00 and 330980-51-00?
The mounting Option is different, 330980-50-00 is panel mount,  330980-51-00 is DIN mount.
