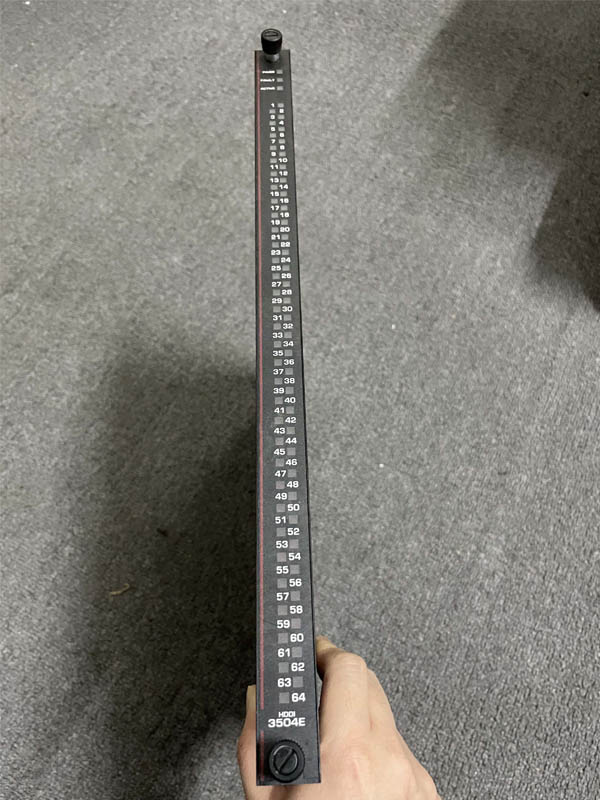

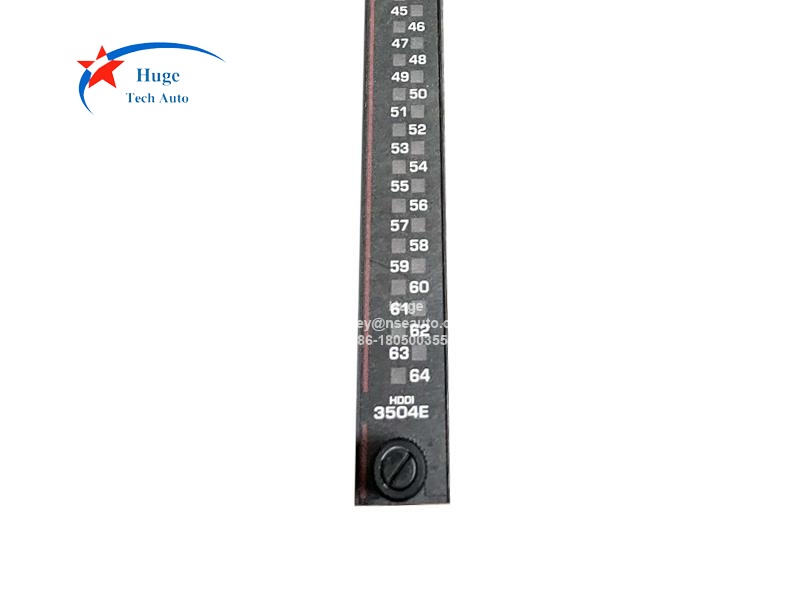

3504E TRICONEX High-Density TMR Digital Input

TRICONEX High-Density TMR Digital Input 3504E

  • Brand:

    Triconex

  • Item NO.:

    3504E

  • Order(MOQ):

    1 PC

  • Payment:

    T/T

  • Market Price:

    999

  • Price Range:

    1 - 5

  • Product Origin:

    USA

  • Color:

    Depends on material

  • Shipping Port:

    XIAMEN

  • Lead Time：

    IN STOCK

  • Warranty:

    1 year
Request A Quote
Product Detail
TRICONEX High-Density TMR Digital Input 3504E
Description:
3504E, which is a high-density TMR Digital Input Module. On TMR Digital Input Modules, all critical signal paths are 100 percent triplicated to guarantee
safety and maximum availability. Each channel conditions signals independently and provides isolation between the field and the Tricon controller. The Model 3504E is an exception—it has no channel-to-channel isolation.
3504E is available for use with Tricon v9–v11 systems, which include TMR and Single (non-triplicated) modules. It includes a circuit stuck-On or stuck-Off self-test feature that verifies the ability of a Tricon controller to detect transitions to the opposite state—either from On to Off, or from Off to On. Configured in TriStation as 24 or 48 VDC.

Specifications:
Number of input points: 64, commoned, DC-coupled
Input voltage range: 24 VDC: 20–36 VDC
Input voltage range: 48 VDC: 40–72 VDC
Input delay: Off to On < 10 ms
Input delay: On to Off < 10 ms
Status indicator: On or Off state 1 per point
Status indicator: Module status Pass, Fault, Active
Input impedance: > 30 kΩ nominal
Logic power < 10 watts
Input diagnostic fault coverage:
Maximum input toggle rate: Once every 100 ms
Minimum input toggle rate: Not required
Diagnostic glitch duration 1 ms every 2–3 seconds
Output voltage 0 VDC or 5 VDC typical
Output impedance 100 kΩ typical
3504E
