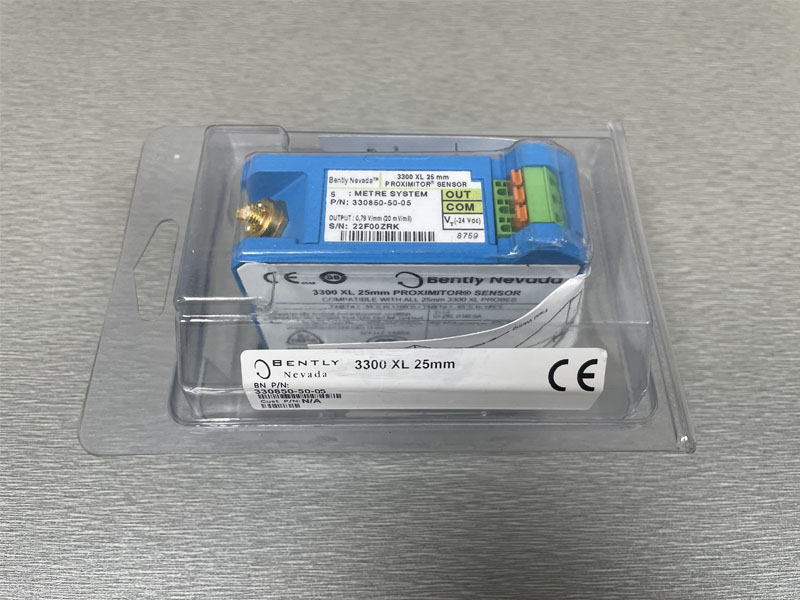

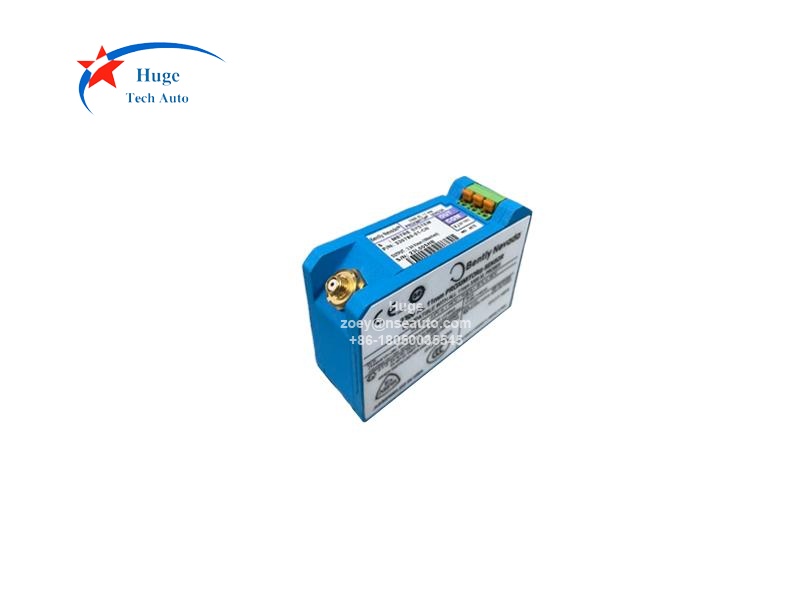

Bently Nevada 330850-50-05 3300 XL 25 mm Proximitor Sensor
Description:
330850-50-05 is manufactured by Bently Nevada, acting as 3300 XL 25 mm Transducer System proximitor Sensor. It has the same advanced features as previous 3300 XL Proximitor Sensors. Thanks to its slim physical characteristics , 330850-50-05 can easily be mounted in either a high-density DIN-rail installation or a more traditional panel mount configuration.

330850-50-05 with the blue physical packaging, 5 meters system length, panel mount. Work with 25mm probe and extension cable to consist of 3300 XL 25 mm Transducer System.

Applications:
Midsize to large steam turbine

Major Features:
▪ Easy and fast to install
▪ Improved RFI/EMI immunity
▪ Certificate for European CE approvals
▪ Suitable for hazardous area
▪ Compatible with 7200 and 25 mm DE Integral systems

Specifications:
Input: Accepts one noncontacting 3300 XL 25 mm Proximity Probe and Extension Cable
Power: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.
Supply Sensitivity:  Less than 2 mV change in output voltage per volt change in input voltage
Output resistance: 50 W
Material: A380 aluminum
Operating Temperature: -51°C to +100°C (-60°F to +212°F)
Storage Temperature: -51°C to +105°C (-60°F to +221°F)

Ordering Information:
330850-AA-BB
