EH140 943-140-000-031 cable assembly for AE119
Description:
EH140 943-140-000-031 is designed as a high-quality, reliable cable assembly. It works with AE119 Housing expansion probe, belong to AE119 expansion system.

Physical characteristics:

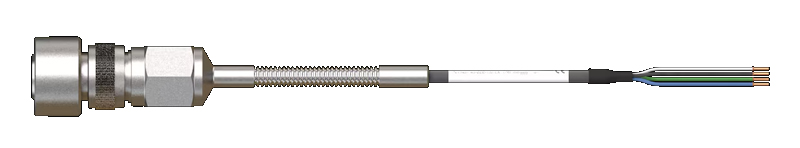

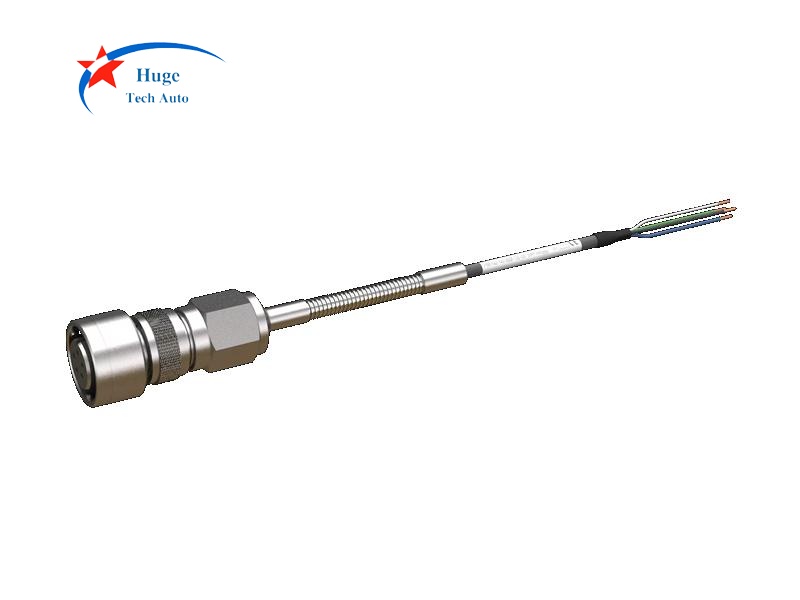

EH140 is K414 cable with RADOX® insulation (Ø 7.6 mm), cable ending is 3-wire, with shield. There are 2 option for the connector, Straight threaded connector(Type: CA3106F-C14S5S-B) or right-angled threaded connector(Type: CA3108F-14S5S-B).
The cable length is from 500mm, covering with flexible stainless steel protection tube. The flexble protection tube length is from 500mm to 20000mm.

Expert Recommendations：
943-140-000-031  replaced by  943-140-000-132 with protection and  943-140-000-032 without protection. The new version compliant with the European Union (EU) directive 2011/65/EU.

Features:
Straight and right-angled threaded connector options
Cable length options
Optional flexible stainless steel hose
Use for AE119

Ordering Information:
943-140-000-031-CX-L1X-L2X
C: Connector
C1: Straight
C2: 90° angle
L1: Cable
L1X: Length in mm from 500 mm, in multiples of 500 mm
L2: Flexible protection tube
L2:0: None
L2:X: Length in mm from 500 mm to 20 000 mm, in multiples of 500 mm

Related items:
943-140-000-032
943-140-000-011
