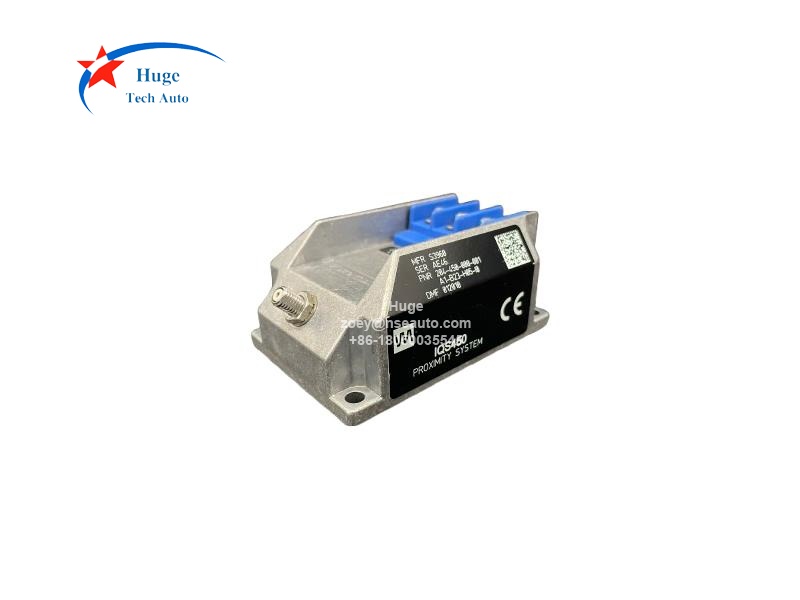

IQS450 204-450-000-002 A1-B23-H10-I0 Signal Conditioner
Description:
IQS450 204-450-000-002 is an essencial component in the proximity system. It is designed as a signal conditioner to transforms the signal from a TQ4xx proximity transducer into a current-modulated or voltage-modulated signal.

IQS450 204-450-000-002 based on the Non-contact technology eddy current principle, can be siutable for the hazardous locations. There is a highfrequency modulator / demodulator included in the IQS450, which suppplies the driving signal to the transducer. It provides a dynamic output signal – current (−15.5 to −20.5 mA) or voltage (−1.6 V to −17.6 V) – both with short-circuit protection, ideal for advanced condition monitoring applications requiring spectral analysis, such as machinery vibration analysis and shaft displacement diagnostics.

IQS450 204-450-000-002 A1-B23-H10-I0 is standard version, measuring range 4mm with the sensitivity 4mV/ μm, support 10 meters system length, without a MA130 mounting adaptor.

IQS450 204-450-000-002 A1-B23-H10-I0 is discontinued, replace by the successor IQS900.

Ordering Information:
204-450-000-002-AX-BXX-HXX-IX
A: Environment
1  Standard
2  Explosive Exi
3  Explosive Ex nA
B: Sensitivity
23  4 mV/um
24   1.25 uA/um
H: Total system length
05  5 m
10  10m
I: Installation
0  Signal conditioner only
1  Signal conditioner assembled on MA130 mounting adaptor
