FS-IOCHAS-0001R Honeywell I/O chassis for redundant I/O modules

Honeywell I/O chassis for redundant I/O modules (Safety Manager) FS-IOCHAS-0001R

Brand:
Honeywell
Item NO.:
FS-IOCHAS-0001R
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Shipping Port:
XIAMEN
Lead Time：
IN STOCK
Weight：
8.5kg
Warranty:
1 Year

Product Detail

Honeywell I/O chassis for redundant I/O modules FS-IOCHAS-0001R
Description:

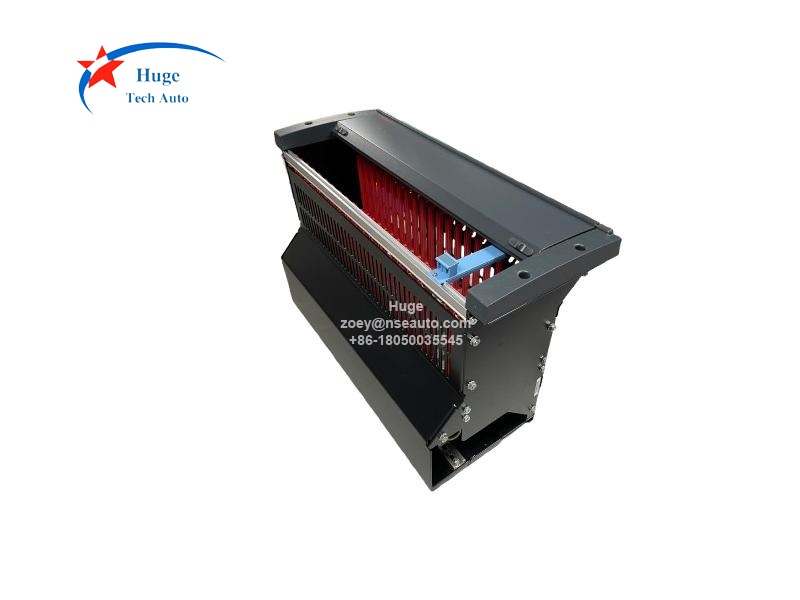

FS-IOCHAS-0001R is designed as a Honeywell I/O chassis for redundant I/O modules. It is for up to 9 pairs of redundant IO modules.FS-IOCHAS-0001R consists of a metal housing, in which the modules, busses and backplanes are placed. The exact components as below:

Component	Amount	Description
I/O housing	1	19 inch mechanical case including cover plates for up to 18 IO modules
FS-IOB-0001R1	1	I/O Backplane for redundant I/O
FS-IO-0001	2	IO Extender modules, slot 20 and 21
FS-IOBUS-HBR	1	Horizontal I/O bus backplane for redundant I/O
Blind front	1	Located at slot 19

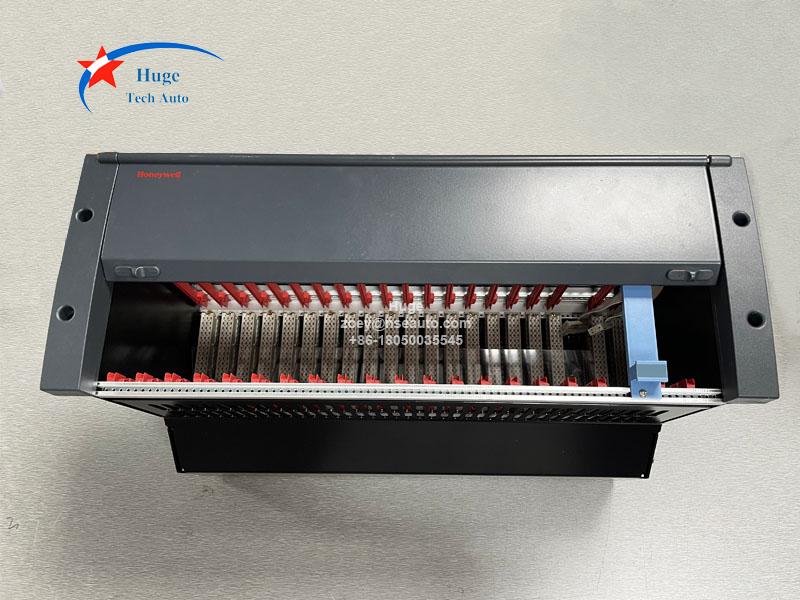

FS-IOCHAS-0001R has 21 slots for modules, from number 1 to 21. Slots 1 to 18 is used for I/O module.

The IO modules in the odd numbered slots (and the IO-0001 in slot 20) are controlled by Control Processor 1.

The IO modules in the even numbered slots (and the IO-0001 in slot 21) are controlled by Control Processor 2.

Slot 19 cannot be used. Slot 20 and slot 21 contain the IO-0001 modules. The FS-IOCHAS-0001R provides the 18 IO-connectors in the middle of the chassis. The FS-IOCHAS-0001R provides the 18 flatcable-connectors in the top of the chassis.

Specifications:
Approvals: CE, UL, CSA, TUV, FM
Power consumption: 5V-1:35 mA (IO-0001 slot 20)
5V-2: 35 mA (IO-0001 slot 21)
Input: 5Vdc, max. 1.28A (max. 2x)
Output: 24Vdc, max. 2A (max. 27x)
Operating termperature: 70℃
Height:222.4mm
Width: 482.6mm
Depth: 280mm
Weight: 8.5kg
