ICS Triplex AADvance Controller T9300 I/O Backplane

Brand:
ICS
Item NO.:
T9300
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Warranty:
1 Year

Product Detail

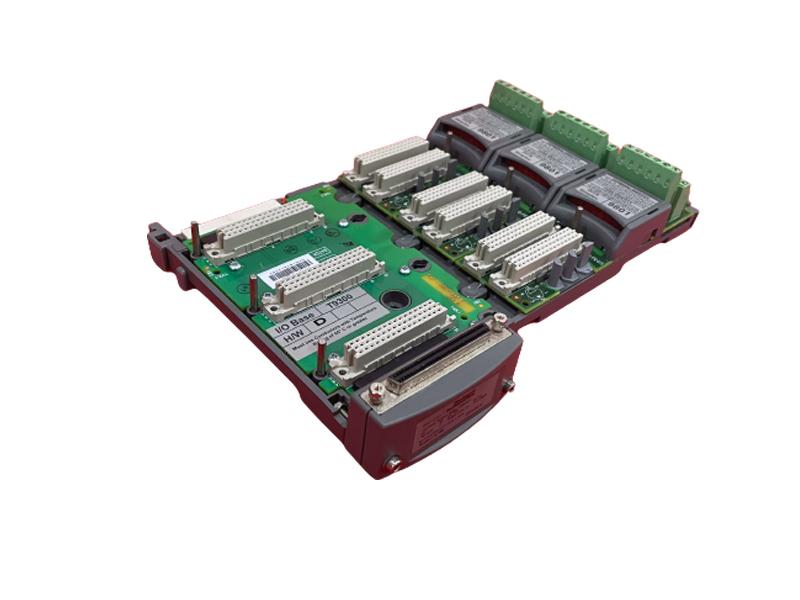

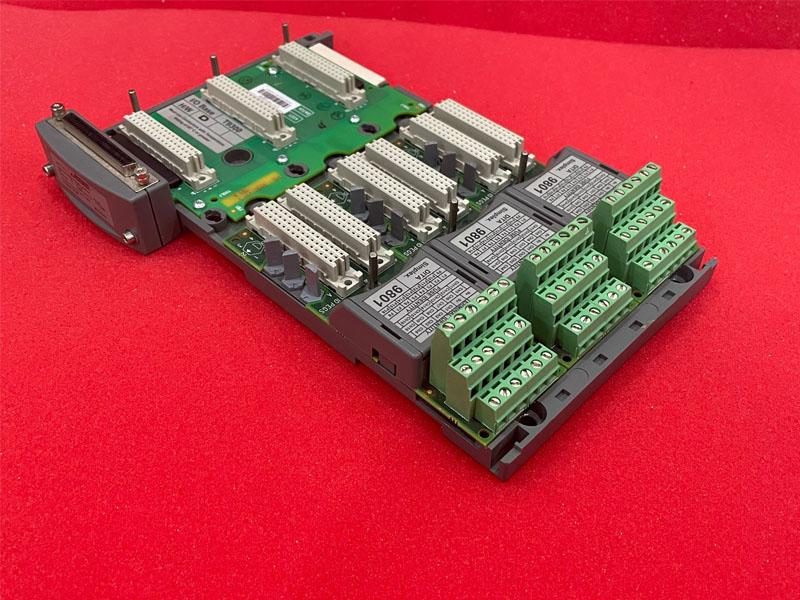

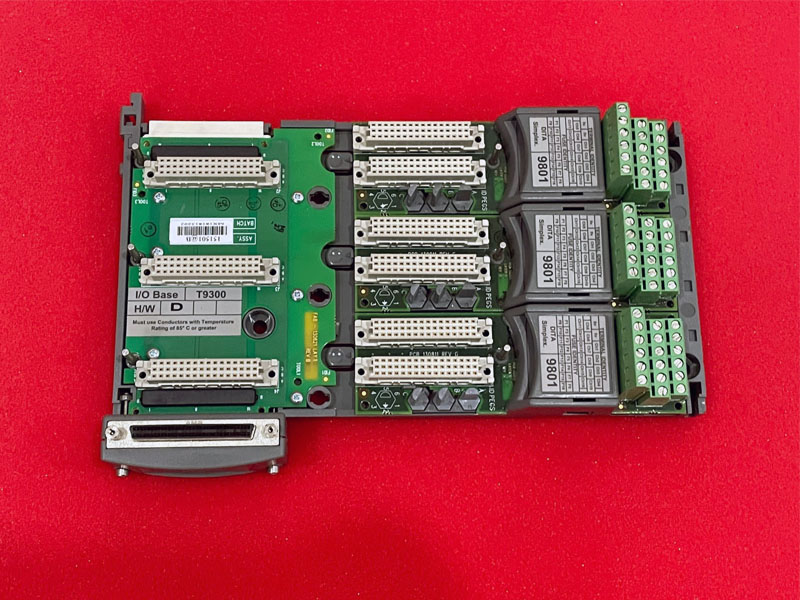

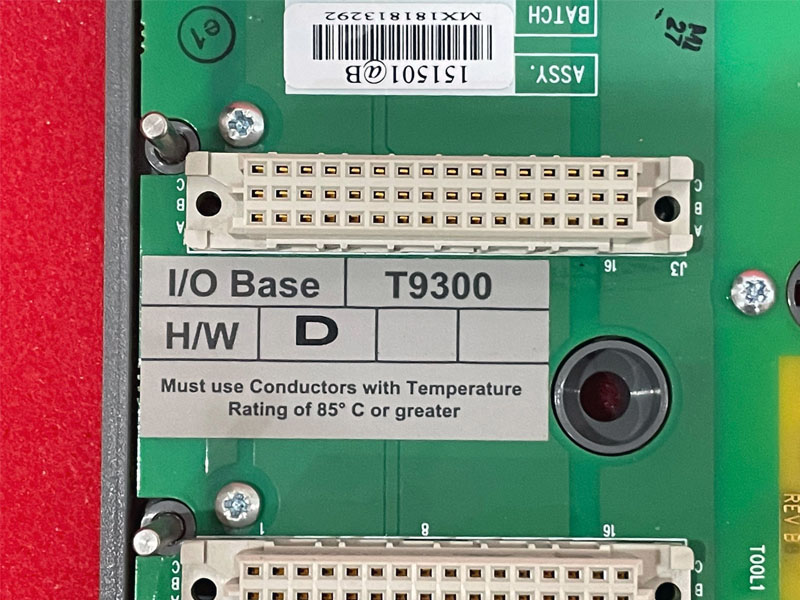

ICS Triplex AADvance Controller T9300 I/O Backplane
Description:
T9300 is part of ICS Triplex AADvance Controller. T9300 I/O base units connect to the right hand side of the T9100
processor base unit (I/O Bus 1) and to the right hand side of other T9300 I/O base units by a direct plug and socket connection. The I/O base units connect to the left hand side of the processor base unit by using the T9310 expansion cable (I/O Bus 2). The expansion cable also connects the right hand side of I/O base units to the left hand side of other I/O base units to install extra rows of I/O base units. Base units are secured in place by top and bottom clips that are inserted into the slots on each base unit.
The expansion bus accessed from the right hand edge of the T9100 processor base unit is designated I/O Bus 1, while the bus accessed from the left hand edge is designated I/O Bus 2. The module positions (slots) in the I/O base units are numbered from 01 to 24, the left most position being slot 01. Any individual module position within the controller can thus be uniquely identified by the combination of its bus and slot numbers.
