ICS Triplex T8312 Trusted Extended Interface Adapter Unit

Brand:
ICS
Item NO.:
ICS Triplex T8312
Order(MOQ):
1 PC
Payment:
T/T
Product Origin:
USA
Color:
Depends on material
Shipping Port:
XIAMEN
Lead Time：
IN STOCK
Warranty:
1 Year

Product Detail

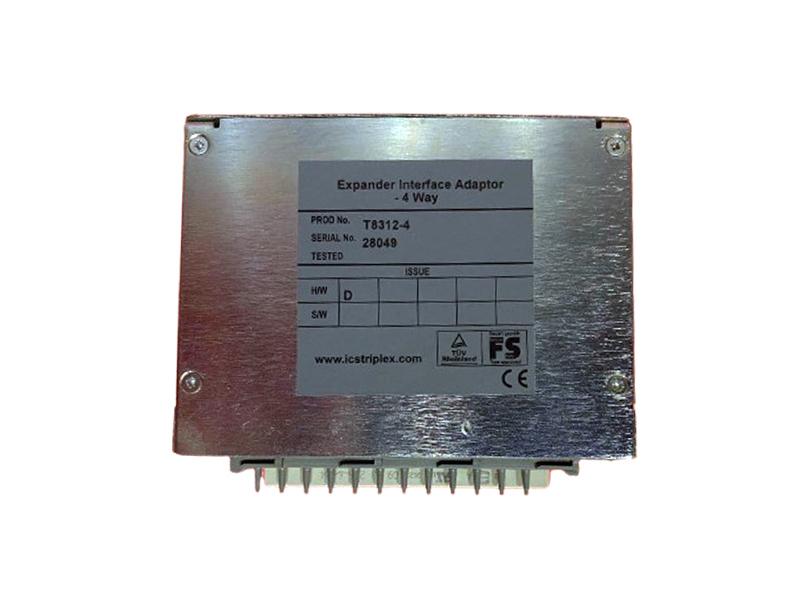

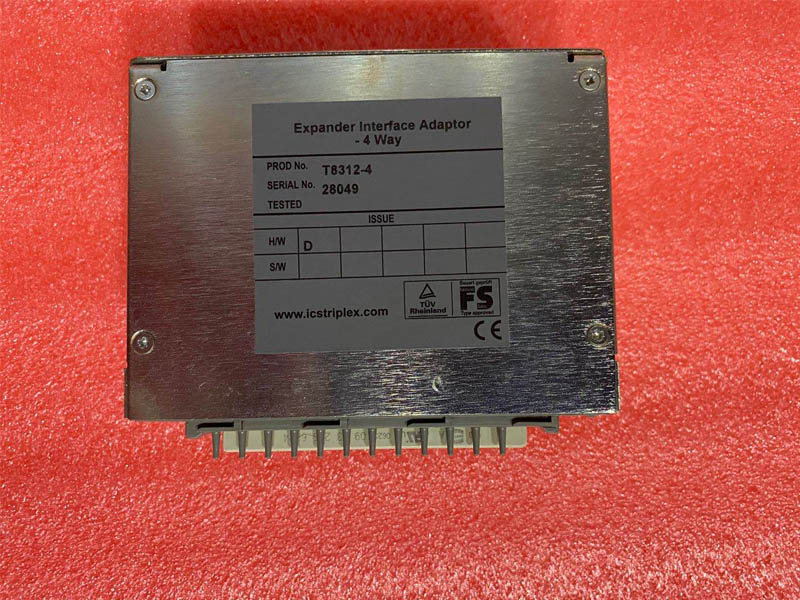

ICS Triplex T8312 Trusted Extended Interface Adapter Unit
Description:
This document provides general information for the Trusted® Triple Modular Redundant (TMR) Expander Interface Adapter Unit T8312. Two versions of the Unit are available; one providing inter-connection between the Trusted Expander Interface Modules in the Controller Chassis and four Expander Chassis (T8312-4), and the other providing inter-connection to seven Expander Chassis (T8312-7).
Features:
• Allows easy inter-connection of Controller and Expander Chassis.
• Unit is fully shielded for Electro-Magnetic Compatibility (EMC).
• Version available for smaller Trusted Systems – up to four Expander Chassis.
• Locking connectors for increased reliability.

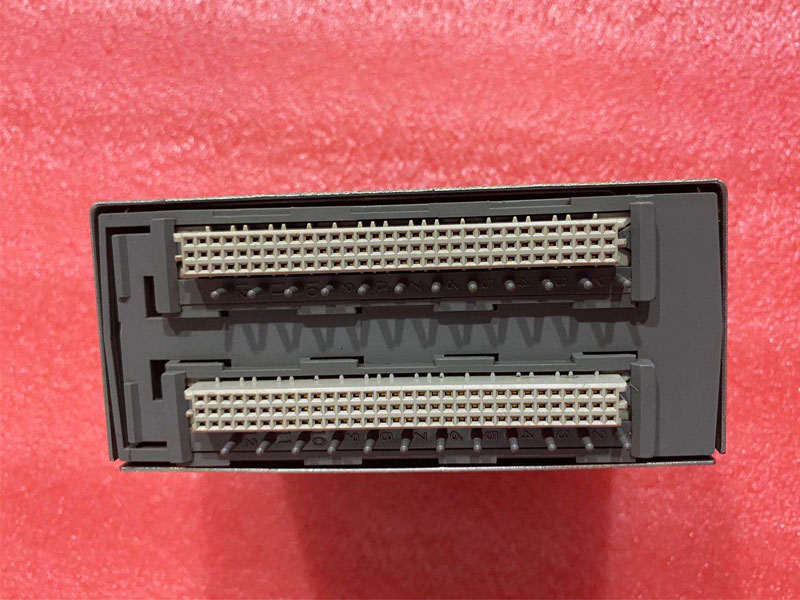

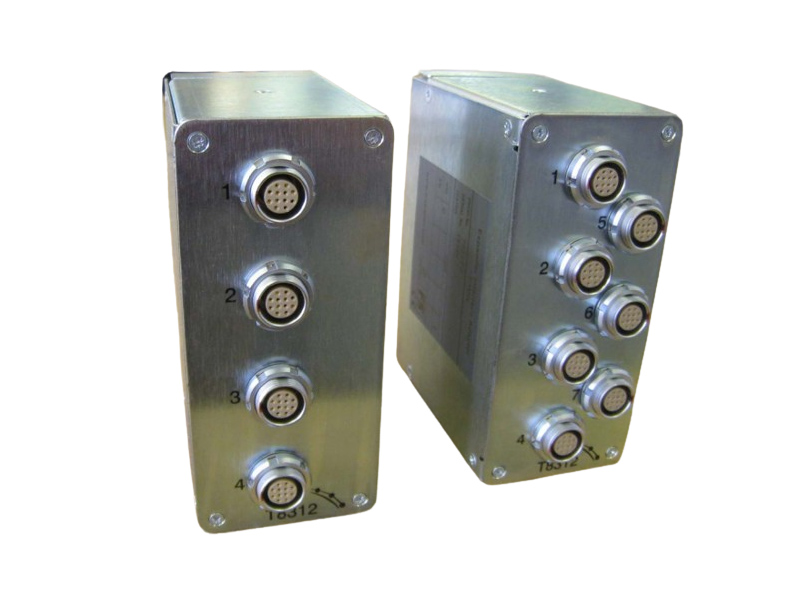

The Trusted Expander Interface Adapter Unit T8312 comprises four, or seven 12-pin ODU connectors (dependent on type of Unit), a printed circuit board (PCB), a 96-way C type connector which plugs into a double 96-way connector assembly designed to be connected to the Trusted Expander Interface Modules resident in the Controller Chassis. The Unit is
contained within a metal enclosure and is designed to be clipped onto the Controller Chassis rear connectors. A release button is provided to enable the Unit to be disconnected.
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
