IQS450 204-450-000-001 Signal Conditioner for Rotating Machinery Monitoring

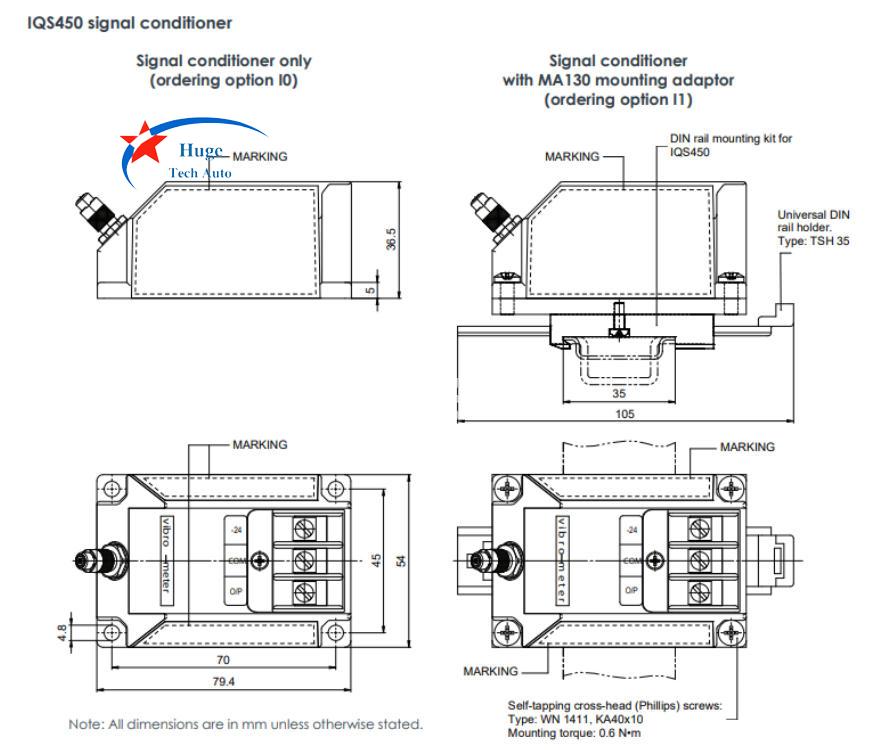

Description:

The IQS450 204-450-000-001 is a signal conditioner designed for non-contact eddy-current proximity measurement systems. Rather than measuring vibration as a standalone sensor, it works between the proximity probe and the monitoring system, providing the electrical interface required to turn probe measurements into usable displacement-related signals.

The conditioner contains a high-frequency modulator/demodulator that provides the excitation required by the connected proximity probe. When matched with the appropriate probe and extension cable, it forms a calibrated measurement chain for monitoring the distance between the probe tip and a metallic target such as a rotating shaft.

With a frequency response extending from DC to 20 kHz (-3 dB), the IQS450 can support both relatively slow shaft-position changes and dynamic measurements associated with rotating machinery. Voltage or current output configurations are available, depending on the selected version.

Application Value:

Converts Probe Signals into Usable Monitoring Data

A proximity probe alone does not provide the complete measurement interface required by a machinery monitoring system. The IQS450 supplies the probe excitation and conditions the measurement signal, allowing the detected shaft-to-probe gap to be transferred to downstream monitoring equipment.

Supports Multiple Rotating-Machine Measurements

The measurement chain can be applied to parameters such as relative shaft vibration, axial position and other displacement-related conditions. This makes the signal conditioner suitable for critical rotating equipment where small changes in shaft position can provide important information about machine operation.

When paired with a compatible proximity probe, the IQS450 can provide the conditioned signal required to monitor relative movement between a rotating shaft and the stationary measurement point.

The measurement chain can be used at axial-position monitoring points on turbines, where changes in rotor position need to be detected continuously.

For high-speed compressors, the conditioner can interface with proximity probes used to monitor shaft movement and support the machine's condition-monitoring system.

The system can be applied to rotating electrical machinery where non-contact measurement of shaft displacement is required.

The conditioned output can be integrated into a larger machinery monitoring or protection architecture, allowing displacement information from the field sensor to be processed by downstream monitoring equipment.

Expert Advice

For replacement applications, 204-450-000-001 should not be selected based only on the IQS450 model number. The complete ordering configuration must be checked because suffix options define important characteristics such as probe compatibility, output type and cable arrangement. Available configurations include different probe ranges, voltage/current outputs and cable lengths.

Engineers should also verify the connected probe model, extension cable, output configuration, measurement range and existing monitoring interface before replacing the conditioner. A physically compatible module may still produce an incorrect measurement if its electrical configuration does not match the original system.
