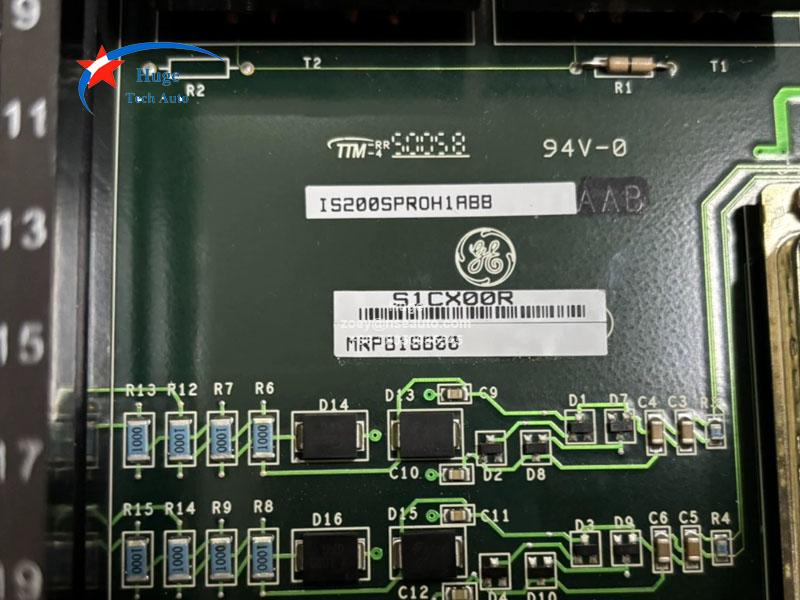

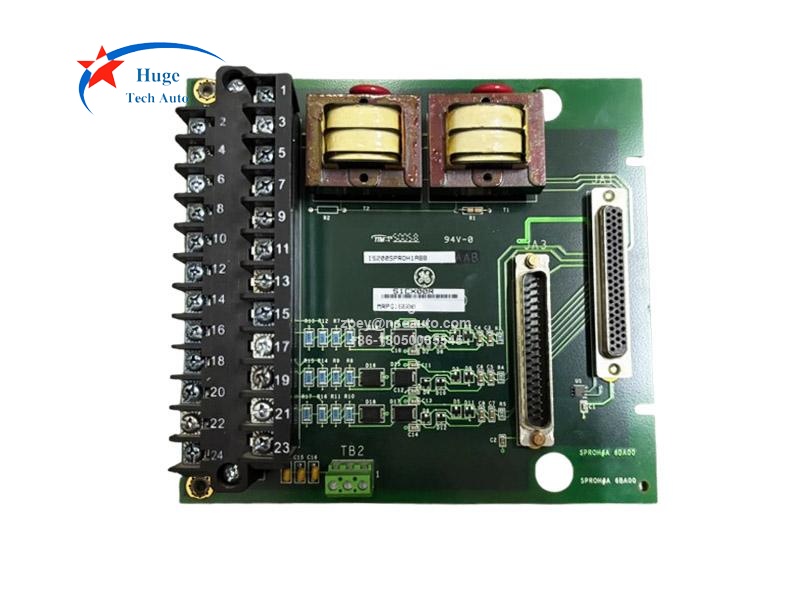

IS200SPROH1A GE Emergency Protection Terminal Board
Description：
IS200SPROH1A is belong to Mark VIe control system, manufactured by GE. As a emergency backup protection terminal board, IS200SPROH1A hosts PPRO or YPRO I/O packs, conditions magnetic speed signals and integrates potential transformers for generator and bus voltage acquisition.

Key Features:
▪ Compatible with PPRO / YPRO I/O packs
▪ Accepts up to 3 magnetic speed pickup inputs
▪ Removable barrier‑style
▪ Identification and fault diagnostics
▪ No jumpers or hardware settings on the board

Applications:
▪ Gas and steam turbine
▪ Power generation units
▪ Power plants

Expert Recommendation:
Double‑check DC‑37 cable mating status before commissioning to guarantee stable backup trip communication.

Q&A:
1. What's the payment term of IS200SPROH1A?
The payment term is T/T in advance.
2. What's the operating temperature of IS200SPROH1A?
The operating temperature range from ‑30℃ to 65℃
3. What's the dimensions and the weight?
Dimensions: 15.9x17.8cm
Shipping weight: 1kg
